2.1.5 Removing the Tape
Feeders with one track (12/16 mm S to 88 mm S)
NOTICE
This description applies to all S feeders with the exception of
8mmSII
feeders. This exception
is described separately directly after the following description.
Legend:
1 Toothed wheel for foil feed-in 4 Light barrier for foil removal
2 Rocker 5 Foil rocker
3 Cover tape
Tape Feeder Modules
Operating Tape Feeders - General Removing the Tape
32 User Manual SIPLACE S-Feeder
Feeders with three tracks (3x8 mm S* / SL)
►First press the foil rocker down as far as the end stop, to relieve some of the foil tension.
►Now press the rocker, hold it pressed and wait until the foil motor switches off.
►Pull the foil slightly out of the foil container.
►Cut the foil.
►Open the pickup window.
►Lift the tape perforations off the transport wheel.
►Pull the tape out of the tape feeder, towards the back.

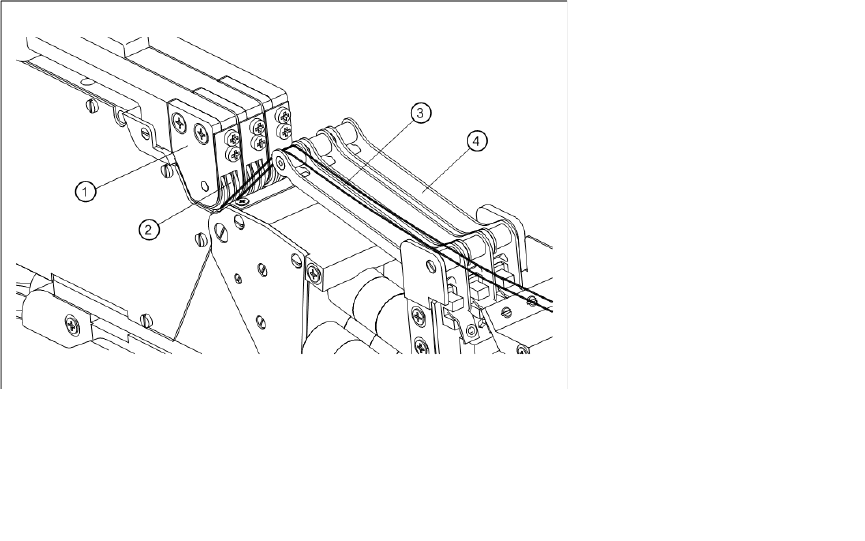

Legend:
1 Rocker 3 Foil
2 Toothed wheel for foil feed-in 4 Foil rocker
Tape Feeder Modules
Setting the Foil Pretension Operating Tape Feeders - General
User Manual SIPLACE S-Feeder 33
2.1.6 Setting the Foil Pretension
If the foil tears frequently or has not been correctly removed, you will need to set the foil pretension.
Example of how to set the foil pretension
The foil pretension is set with the setting screw (1) on the spring of the foil tensioner.
►If the foil pretension is too low (foil is not removed properly), increase the pretension by turning the
screw in a clockwise direction.
►If the foil pretension is too high (foil tears), reduce the pretension by turning the screw in an anticlock-
wise direction.

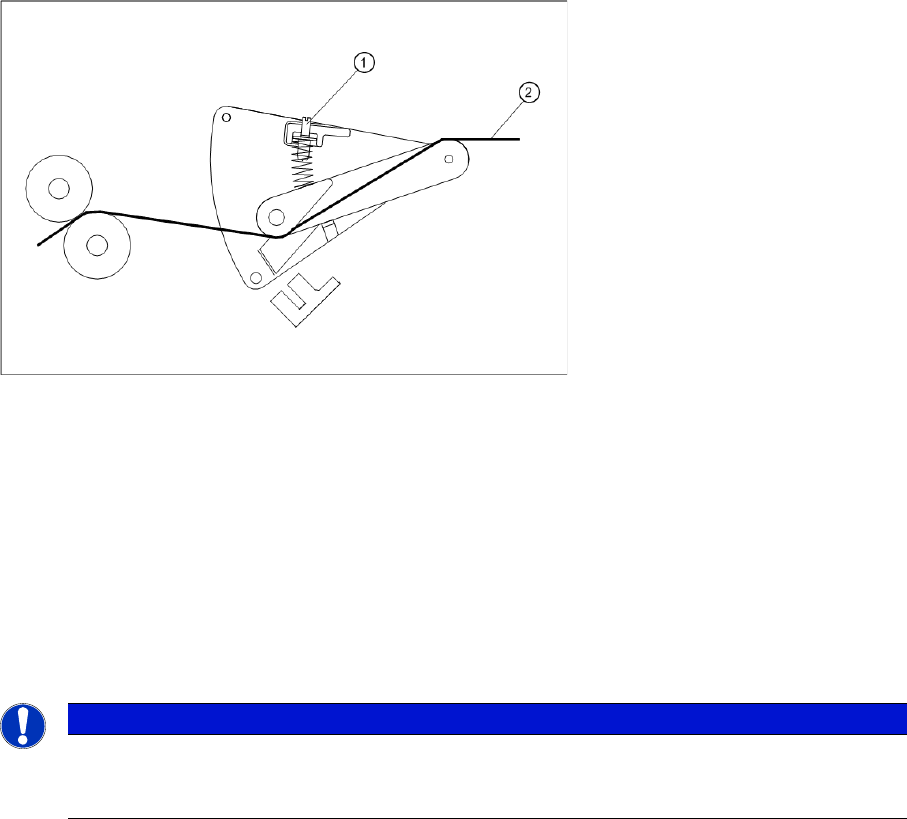

Legend:
1 Setting screw
2 Foil
NOTICE
When you release the screw, make sure that the spring slides back into place (especially when
the foil pretension was at its maximum before). If the spring does not slide back properly, the
foil pretension will not slacken.
