Bulkcase Feeders
Maintenance Cleaning and Greasing the Lifting Magnet on the Body
62 User Manual SIPLACE S-Feeder
Lifting magnet
►Clean both lifting magnet to remove any components.
►Grease both lifting magnet with a little Topas Isoflex ®. Only apply a very small amount of grease to
the areas shaded in the diagram.
►Now fit the lifting magnet cover.

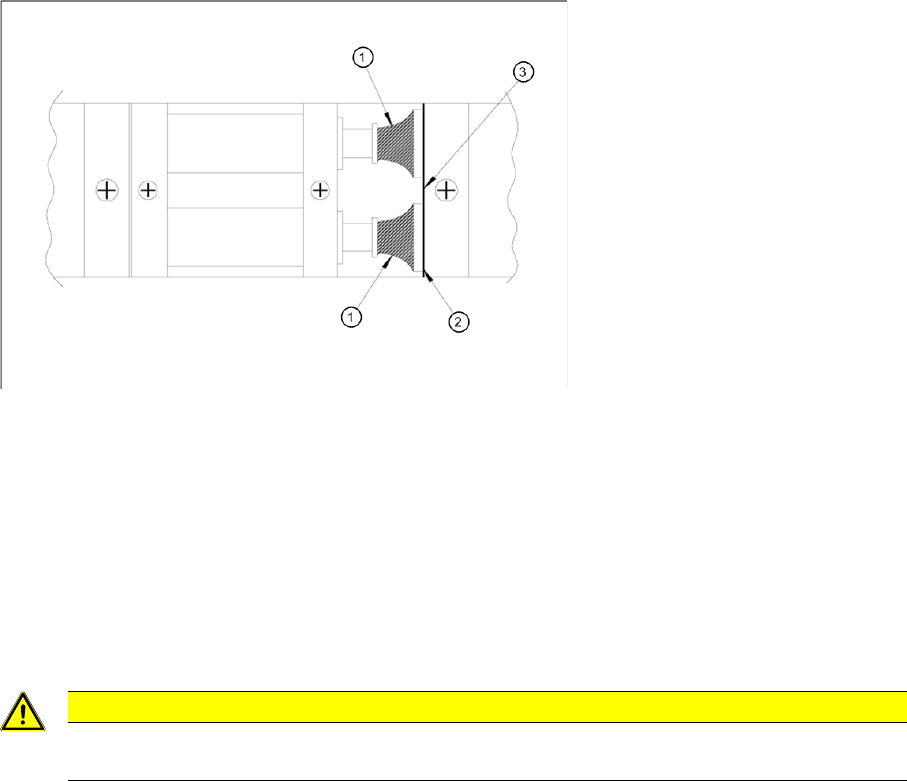

Legend:
1 Lifting magnet (only grease shaded areas)
2 Contact surface of lifting magnet (no grease)
3 Damping material
CAUTION
Do not apply any grease to the contact surfaces of the lifting magnet. Clean the contact surfac-
es with a dry, lint-free cloth, if required.
Bulkcase Feeders
Cleaning the Component Duct on the Feeder Tracks Maintenance
User Manual SIPLACE S-Feeder 63
3.4.4 Cleaning the Component Duct on the Feeder Tracks
Component duct on the feeder track
►Loosen the 8 screws fastening the holddown.
►Remove the duct cover.
►Loosen the screw fastening the component stop (3).
►Remove the component stop.
►Loosen the screw fastening the light barrier (2).
►Pull the light barrier out until you can access the component duct.
Make sure that the cables and connections are not damaged.
►Clean the entire length of the component duct with alcohol.
Make sure that you do remove any of the labels attached to it.
►Now rub the cleaned component duct dry with a lint-free cloth.
►Fit the component stop so that it is positioned at the end of the duct (5).
►Fit the duct cover level with the funnel and position it against the holddown.
►Fit the feeder tracks back on the body.

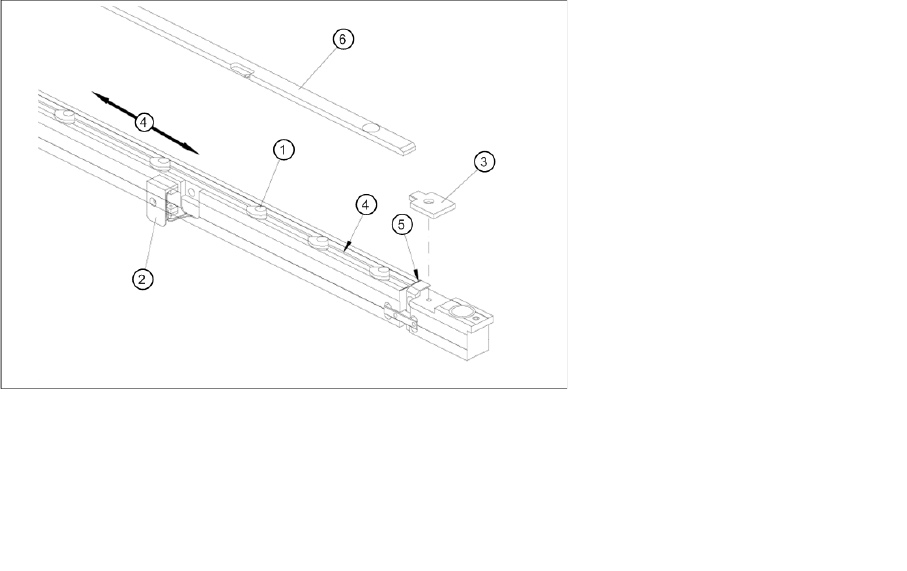

Legend:
1 Holddown 4 Component duct
2 Light barrier 5 The component stop must lie against the component duct here.
3 Component Stop 6 Duct cover
