Overview of SIPLACE S Feeders Tape Feeder Modules
8 User Manual SIPLACE S-Feeder
1.2 Overview of SIPLACE S Feeders
The following section provides an overview of the S feeders in the SIPLACE family and their areas of
use.
1.2.1 Tape Feeder Modules
The SIPLACE feeders have short cycle times and high precision positioning of components into the pick-
up positions. Productivity and small recipe sizes are easy to handle as the feeders can be quickly con-
verted to deal with other components and the step sizes adjusted accordingly.
3x8 mm S feeders
For processing components in 8 mm tapes on 3 separate tracks.
- 3x8 mm S
- 3x8 mm S for 0201/0402 CO
- 3x8 mm S for 01005 CO
- 3x8 mm SL (shutterless feeder)
12/16 mm S feeders
For processing components in 12 and 16 mm tapes.
24/32, 44, 56, 72 and 88 mm S feeders
For processing components in 24 mm to 88 mm tapes.
- 24/32 mm S
- 44 mm S
- 56 mm S
- 72 mm S
- 88 mm S
DP feeders (DP = Deep Pocket)
For processing high components up to 25 mm height in 24 mm to
56 mm tapes.
- 24/32 mm S DP
- 44 mm S DP
- 56 mm S DP
General
Other Feeder Modules Overview of SIPLACE S Feeders
User Manual SIPLACE S-Feeder 9
1.2.2 Other Feeder Modules
Bulkcase feeders
Bulk goods feeder – for processing SMD components from the
Murata bulkcase cassette (DIN IEC 286/6).
Vibratory feeder type 3
For processing components in stick magazines.
Dip module
For processing with conductive adhesive, in which the compo-
nents can be dipped before placement.
General
Technical Data Tape Feeder Modules
10 User Manual SIPLACE S-Feeder
1.3 Technical Data
1.3.1 Tape Feeder Modules
1.3.1.1 3x8mm S

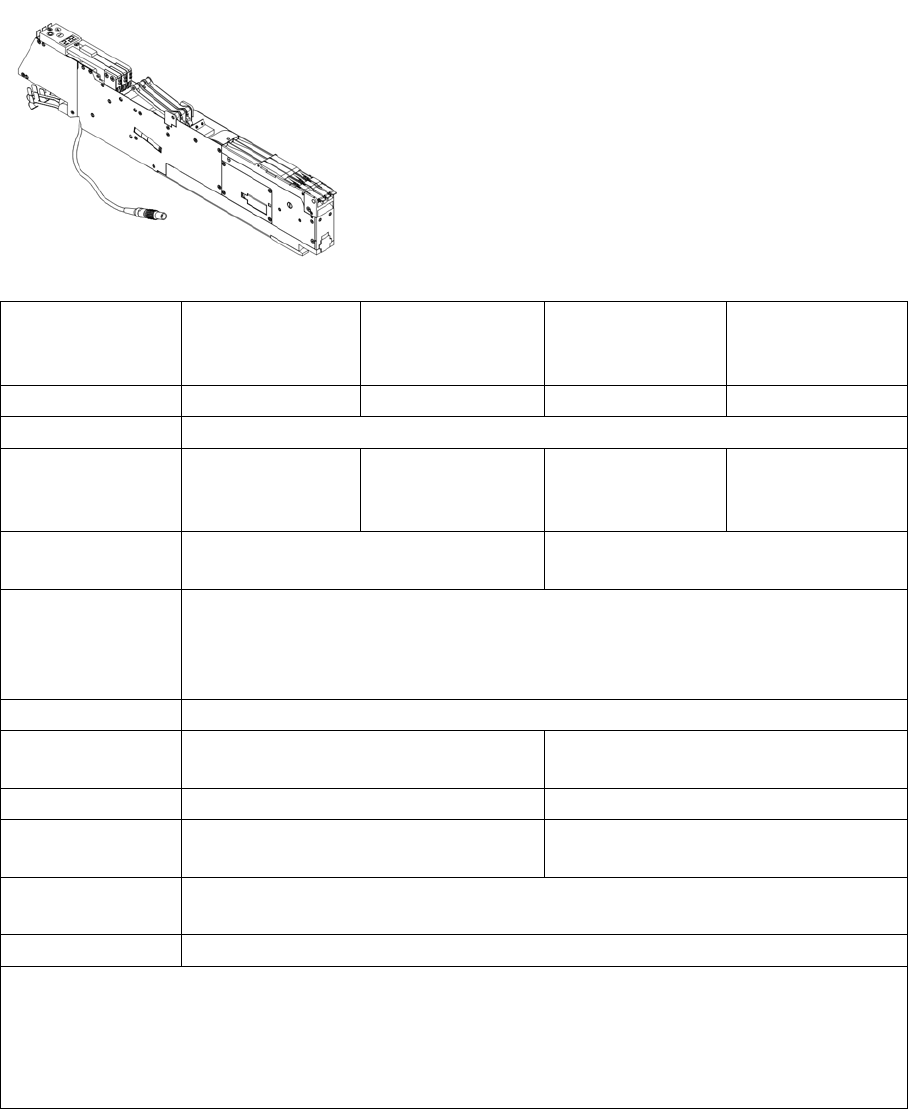

3x8mm S, 3x8mm SL (shutterless feeder), 3x8mm S for 0201/0402 BE, 3x8mm S for 01005 CO
For processing components in 8 mm tapes on 3 separate
tracks.
3x8 mm S 3x8 mm SL * 3x8 mm S
for 0201 / 0402
components
3x8 mm S
for 01005
components
Item number: 00141098-xx 00141088-xx 00141099-xx 00176100-xx
Feeder width: 30.6 mm
Component spec-
trum:
Components in 8
mm tape
From 0201 compo-
nents
in 8 mm tape
0201 und 0402
components in
8 mm tape
01005 , 0201 and
0402 components
in 8 mm tape
Max. component
height:
2.5 mm 0.7 mm
Number of occu-
pied locations
on changeover ta-
ble:
1
Tape reels: 178 – 483 mm diameter (7" - 19")
Step size convey-
or:
2 mm / 4 mm / 8 mm 2 mm / 4 mm
Tape material: Paper and blister tapes Paper tapes
Pickup positions: Front position: components > 1.3 mm
Back position: components ≤ 1.3 mm
One position for the component
spectrum
Feeder time (cycle
time):
60 ms
Changeover time: ≤ 15 seconds
* SL = Shutterless (without moving component cover)
A new feeder principle "Feeding on Demand" has been realized with this tape feeder, in order to reduce
the loss of components during tear down. The components are only transported to the pickup position
once the placement head moves to the pickup position, meaning that there are no components in the
pickup position before and after the pickup process.
