6.1 Tape Splice Tool for SMD Tape Connections

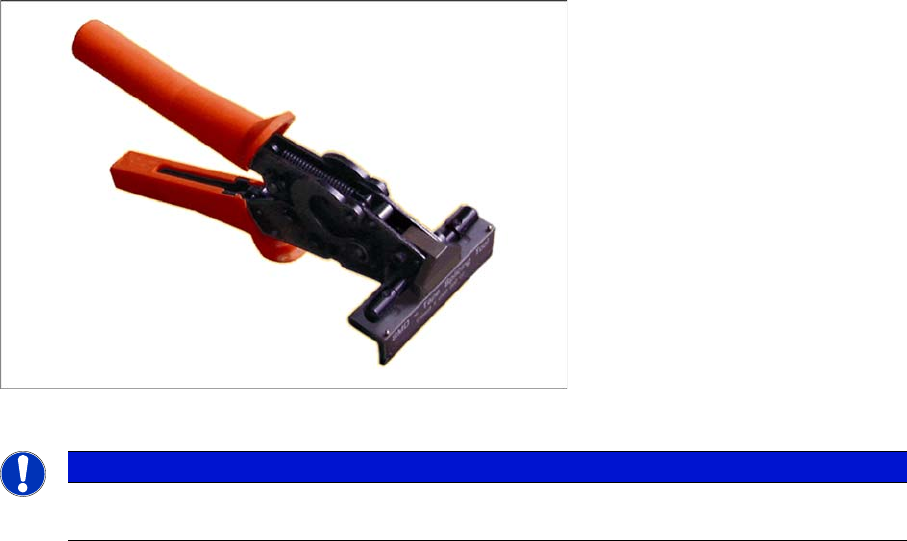

Item No. 02102987-xx
NOTICE
A description of how to splice tapes is also available as a poster for your production site:
Job Poster "
Splicing tapes
", Item No. 00192460-xx
Accessories
Tape Splice Tool for SMD Tape Connections Area of Use
94 User Manual SIPLACE S-Feeder
6.1.1 Area of Use
The tape splice tool enables you to splice on a new tape for refilling components on tapes without
causing a machine standstill.
The splicing procedure takes place outside the working area of the SIPLACE placement machine which
is secured with protective switches.
When splicing components on tapes, you connect the virtually finished paper or blister tape in the feeder
with the beginning of a new tape.
The tape splice tool functions like a crimping tool. It enables you to "rivet" the underside of the tape,
thereby connecting the "old" and "new" tapes with one another. A special adhesive strip on the upper
side of the tape connects the cover tape.
When correctly connected, the tape ends are joined together precisely along the perforations. The tape
- with its transition point - can then be seamlessly transported into the feeder and the foil can be stripped
off as usual.
The tape splice tool can be used to splice all blister or paper tapes.
Tapes WITHOUT cover tape (surf tapes) are NOT spliced together.
and complete splicing of paper and blister tapes (with single-sided and double-sided perforations

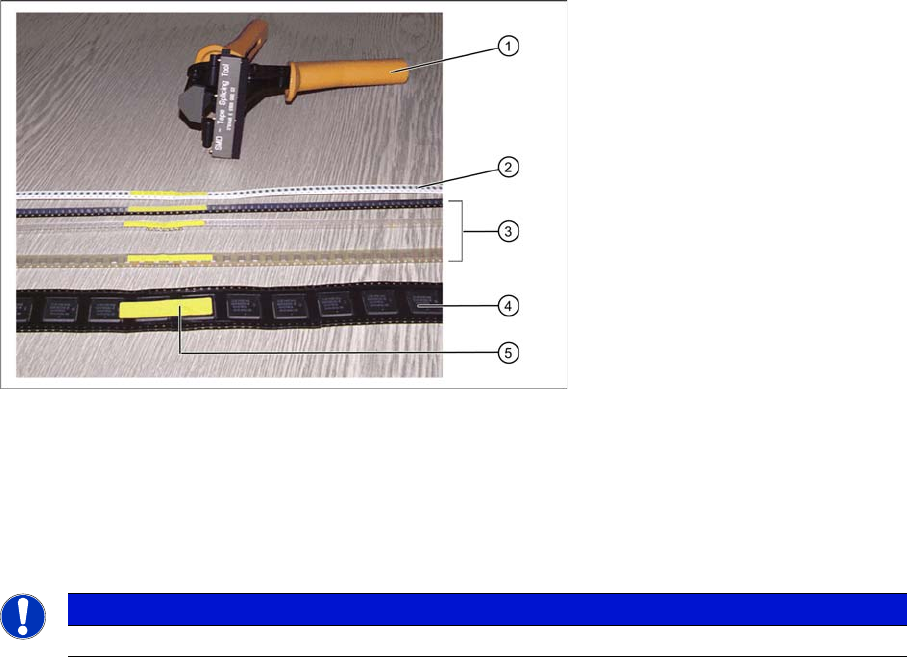

Legend:
1 Tape splicing tool 4 Blister tape with perforations on both sides
2 8 mm paper tape 5 Complete SMD tape splicing
3 Blister tapes with perforations on one side
NOTICE
The tape splice tool can be used easily by both right and left-handed persons.
