Page 1-9 CALIBRA TION T o the next page 3Y3C-E-MMZ0A-A01-00 Mounting Position Calibration 5. Ejecting the Exclusively Reserved Board and Removing the Jigs 1 . Press . • The “Machine maintenance menu” screen is displayed.…

100%1 / 114
Page 1-8
3Y3C-E-MMZ0A-A01-00
Mounting Position Calibration

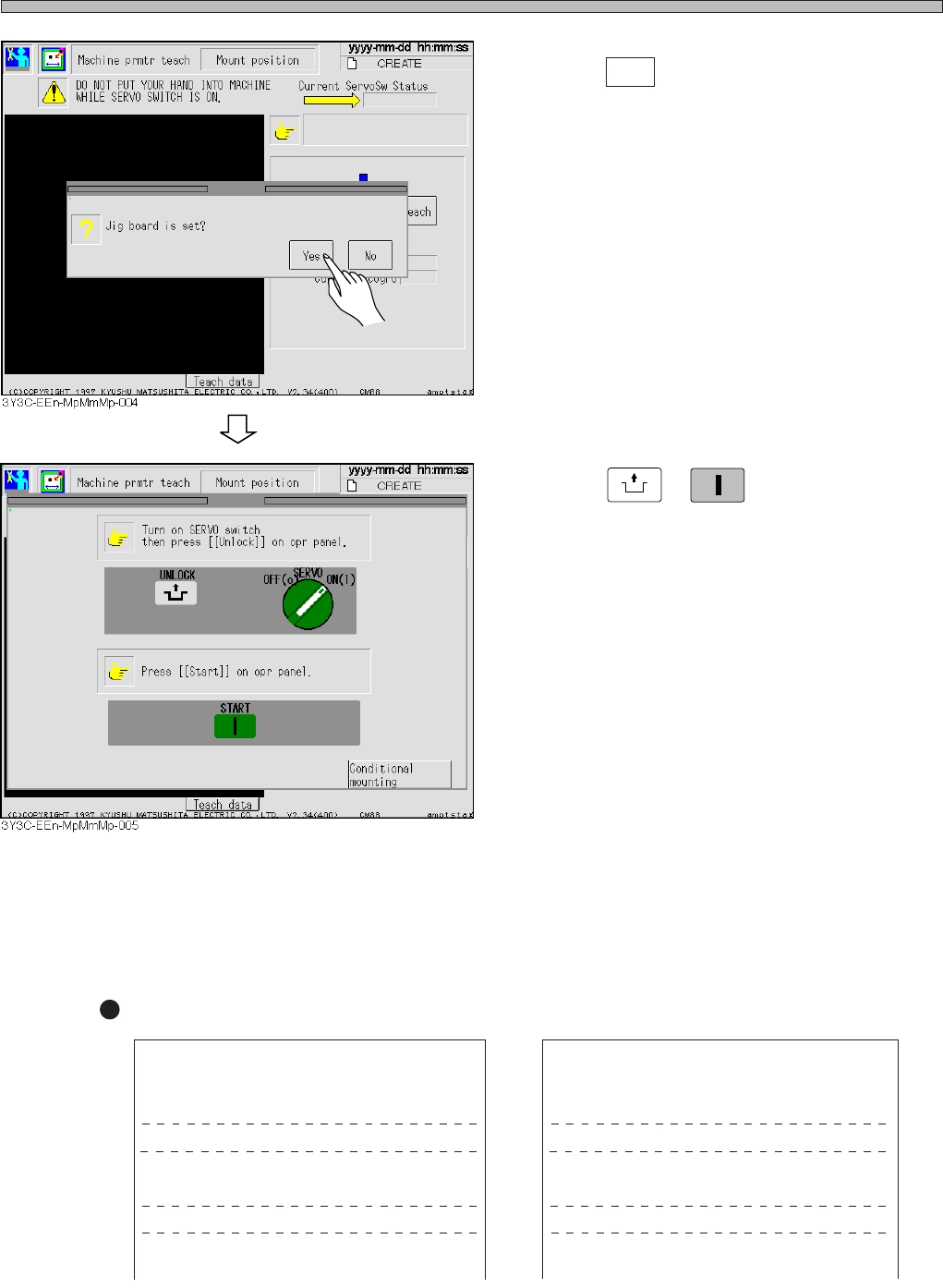

5. After the board setting is completed,
press Yes .
6. Press
UNLOCK
+
START
.
• The mounting position calibration starts.
∗ After the calibration is completed, the mounting accuracy result is printed out automatically.
The accuracy is corrected based on the current mounting result. So, when checking the mounting
accuracy after the calibration result, perform the calibration again, then check the mounting
result.
Printout Sample
YYYY-MM-DD (
∗∗∗
) hh:mm:ss CM88S
∗.∗∗
(
∗∗∗
)
File name :CREATE Machine serial No :
∗∗∗∗∗∗∗∗
[ standard = 0.05 mm]
[ Nozzle name = 2125]
I X Y THETA
Average I 0.016 -0.013 0.172
Renge I 0.080 0.090 2.020
Cp I 1.100 1.050
Head no. I Renge(X) Renge(Y) Cp(X) Cp(Y)
01 I 0.090 0.080 1.200 1.101
YYYY-MM-DD (
∗∗∗
) hh:mm:ss CM88S
∗.∗∗
(
∗∗∗
)
File name :CREATE Machine serial No :
∗∗∗∗∗∗∗∗
[ standard = 0.10mm]
[ Nozzle name = 2125]
I X Y THETA
Average I 0.160 -0.013 0.172
Renge I 0.110 0.120 2.000
Cp I 1.400 1.340
Head no. I Renge(X) Renge(Y) Cp(X) Cp(Y)
01 I 0.100 0.100 1.100 1.101
Page 1-9
CALIBRATION
To the next page
3Y3C-E-MMZ0A-A01-00
Mounting Position Calibration
5. Ejecting the Exclusively Reserved Board and Removing the Jigs
1. Press .
• The “Machine maintenance menu” screen is
displayed.
2. Press .
• The “Machine parameter menu” screen is
displayed.
3. Press .
• The “Main menu” screen is displayed.
4. Press
Machine
adjust
.
• The “Machine adjustment menu” screen is
displayed.
5. Press
UNLOCK
+ PCB transfer .
• The “PCB transfer” screen is displayed.
3Y3C-EEn-MpMm-002
3Y3C-EEn-MpMmMp-001
3Y3C-EEn-Mp-003
Page 1-10
Mounting Position Calibration
6. Press
UNLOCK
+ Unload .
• The board is transported to the rear conveyor.
7. Press
UNLOCK
+ Carry out .
• The board is ejected.
8. Turn OFF the servo switch.
∗ Open the safety cover, then remove the jigs and tape feeder.
3Y3C-E-MMZ0A-A01-00
OFF ( )
ON ( )
SERVO
3Y3C-140P
