Page 1-16 3Y3C-E-MMZ0A-A01-00 Pickup Position Calibration 3 . Connect the camera jig with the sig- nal wire of the CCU. ∗ Insert the connector , then tighten the screws with the driver . 4 . Wire the CCU. ∗ Before wiring…

100%1 / 114
Page 1-15
CALIBRATION
3Y3C-E-MMZ0A-A01-00
Pickup Position Calibration
Wiring
1. Connect the CH1 and CH2 of the
camera jig to the CH1 and CH2 of the
power supply box.
∗ Before connecting, make sure that the switch
of the power supply box is OFF.
2. Connect the power supply cord.
∗ Remove the terminator, then insert the power
supply cord.
Camera Jig CH1
Camera Jig CH2
Power Supply Box CH1
Power Supply Box CH2
Terminator
Power Supply Box
Power Supply Cord
3Y3C-148P
3Y3C-150P
3Y3C-149P
3Y3C-151P
To the next page
Page 1-16
3Y3C-E-MMZ0A-A01-00
Pickup Position Calibration
3. Connect the camera jig with the sig-
nal wire of the CCU.
∗ Insert the connector, then tighten the screws
with the driver.
4. Wire the CCU.
∗ Before wiring, make sure that the power supply
switch of the CCU is OFF.
1. Remove the signal wire connector from the
terminator, then connect it to the CCU.
Connector
Camera Jig
Driver
Terminator
3Y3C-152P
To the next page
3Y3C-153P
3Y3C-147P
3Y3C-154P
Connector
Page 1-17
CALIBRATION
3Y3C-E-MMZ0A-A01-00
Pickup Position Calibration

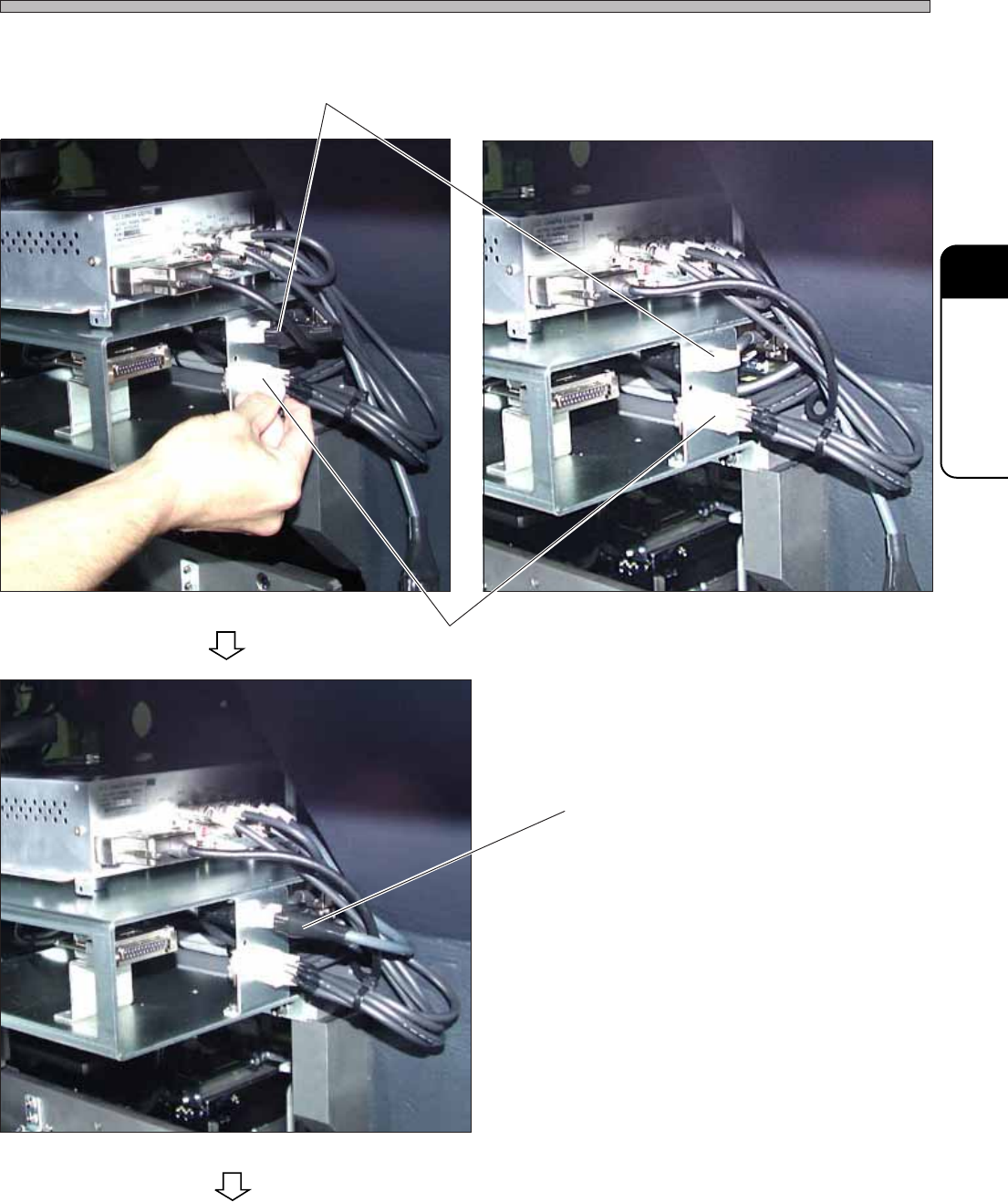

2. Connect the connector A.
3. Remove the terminator B.
4. Connect the CCU connector to B.
A
3Y3C-155P
3Y3C-156P
B
3Y3C-157P
B
To the next page
