Page 2-18
3Y3C-E-MMD02-A01-02
Items of Machine Parameter

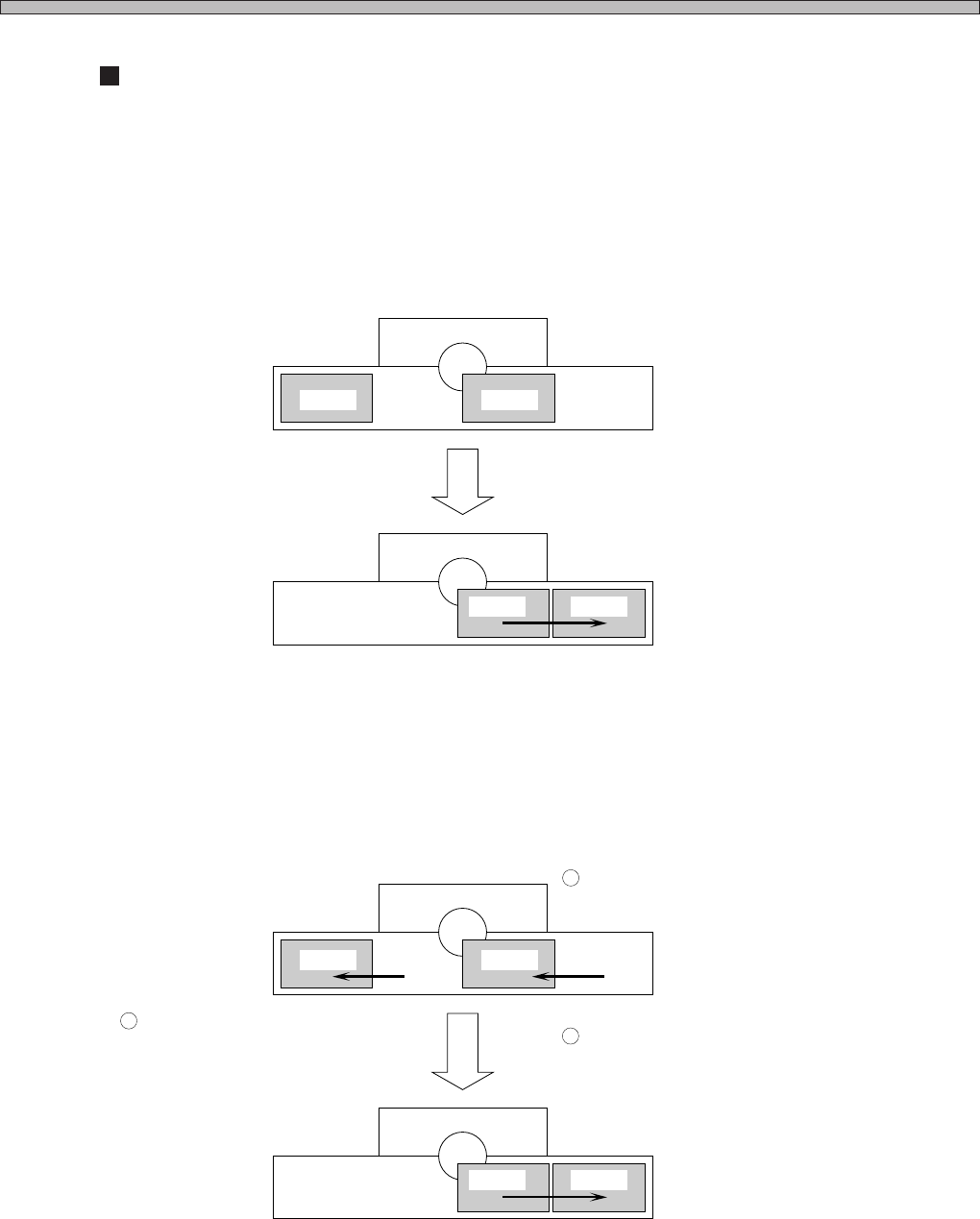

Stage changing motion when exchange mode priority function used
During automatic operation, the stages are switched over in the following timing so as to pick up the
chips on the specified stage by priority.
1) At the start of automatic operation
The chips on the priority stage are picked up first.
E.g. : A Stage Priority Specified
2) When the priority stage becomes available (Chip supply completed)
When the chips on the priority stage run out, it is switched over to another stage.
After the chips are supplied, that stage is switched over to the priority stage after the board being
produced currently has been mounted.
E.g. : A Stage Priority Specified
When returning to origin before operation, the
pick-up stage is switched to the A stage and
production starts.
When the chips on the A stage run out, the
pick-up stage is switched to the B stage.
Supply the chips of the A stage.
After the board being produced currently has
been mounted, the pick-up stage is switched
to the A stage.
4G3C-004E
4G3C-005E
1
2
3
A Stage B Stage
A Stage B Stage
A Stage B Stage
A Stage B Stage
Page 2-19
MACHINE PARAMETER
2

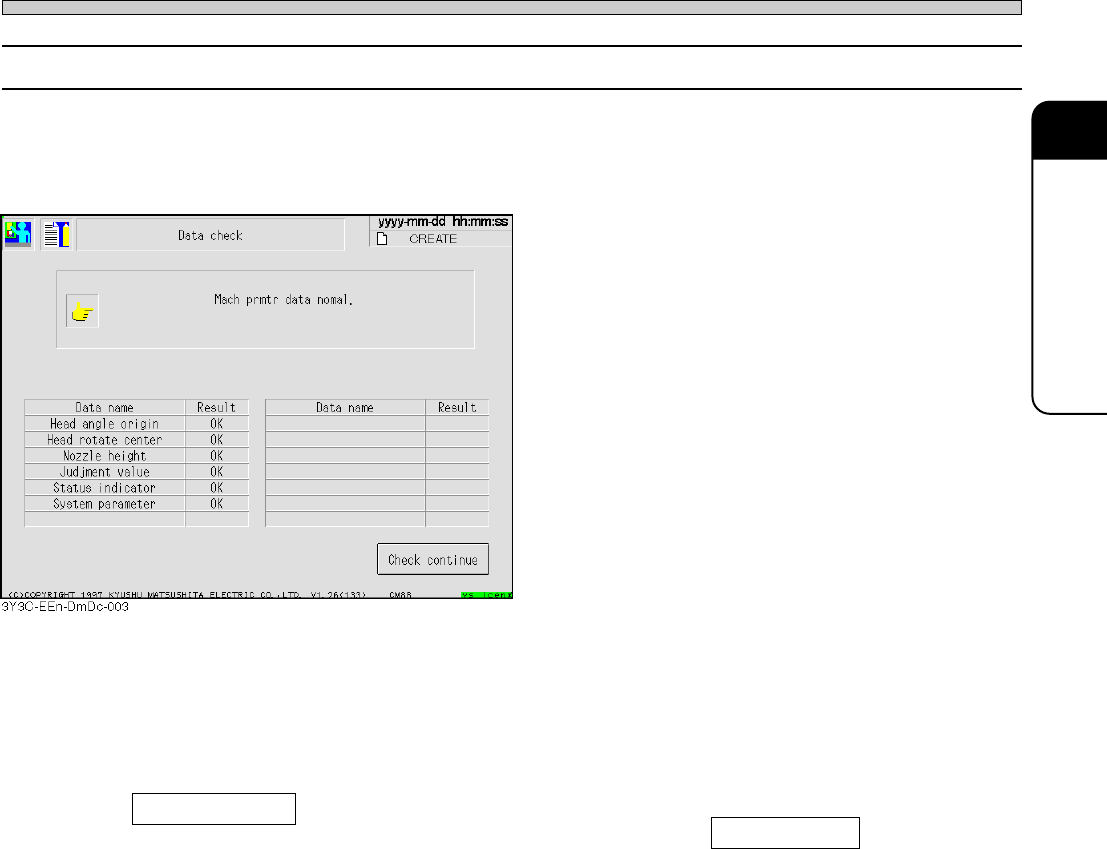

2-1-10 Data Check
It is checked if the value of machine parameter is the one to be properly mounted.
Make sure of carrying out “Data check” after “Head exchange teach,” “Nozzle exchange teach”
after changing machine parameter.
If data is out of the set tolerance range, the machine judges it error.
When data is within the tolerance range, it is displayed “OK,” and “NG” for data out of the tolerance
range. For the data out of the tolerance range, detail information of it is displayed at the top of
screen.
Check continue
After checking stops due to data out of tolerance range, press Check continue to restart it from
the next data.
3Y3C-E-MMD02-A01-02
Items of Machine Parameter
Page 2-20
2-2 Machine Maintenance
To carry out routine maintenance effectively, information related to maintenance, supporting,
operation, and machine parameter teaching after operation are put in together.
Routine maintenance
The period of cleaning and lubrication for each period and operation history can be checked.
Consume parts exchange
The exchange period of consumable parts and operation history can be checked.
Machine information
Such information related to the machine as machine name or machine serial number or the
update history of system can be checked.
Head mainte
Removing and setting transfer heads are supported and a series of machine parameter teaching
required after maintenance operation is automatically carried out as “Head exchange teach.”
Nozzle mainte
Removing and setting nozzles are supported and a series of machine parameter teaching
required after maintenance operation is automatically carried out as “Nozzle exchange teach.”
