Page 2-24
Machine Maintenance
2-2-3 Machine Information and Version History

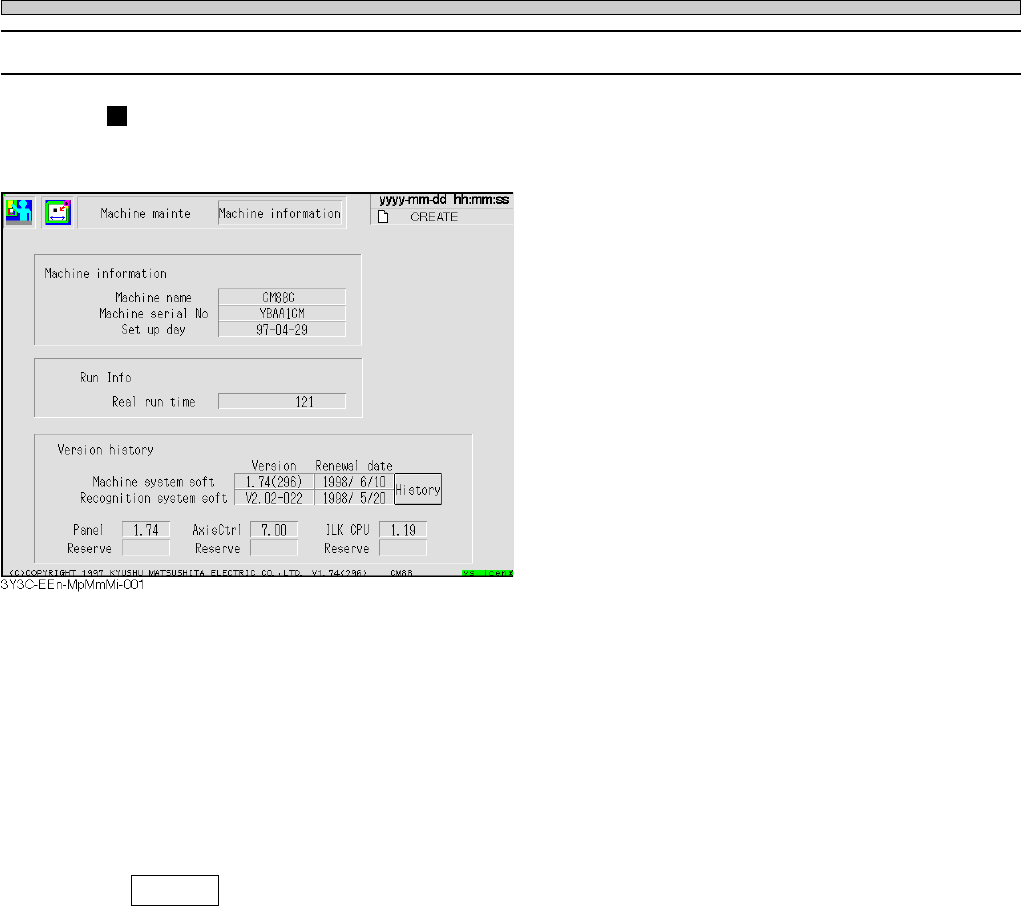

Machine information
Each information related to machine can be checked.
Machine information
Machine name, machine serial number, and setup day are displayed.
Run info
The sum of real run time for production from the setup day is displayed.
Version history
The version and installed day and time of current machine and recognition system software, and
other version information are displayed.
History
The update history of machine and recognition systems can be checked.
3Y3C-E-MMD02-A01-02
Page 2-25
MACHINE PARAMETER
2
Machine Maintenance

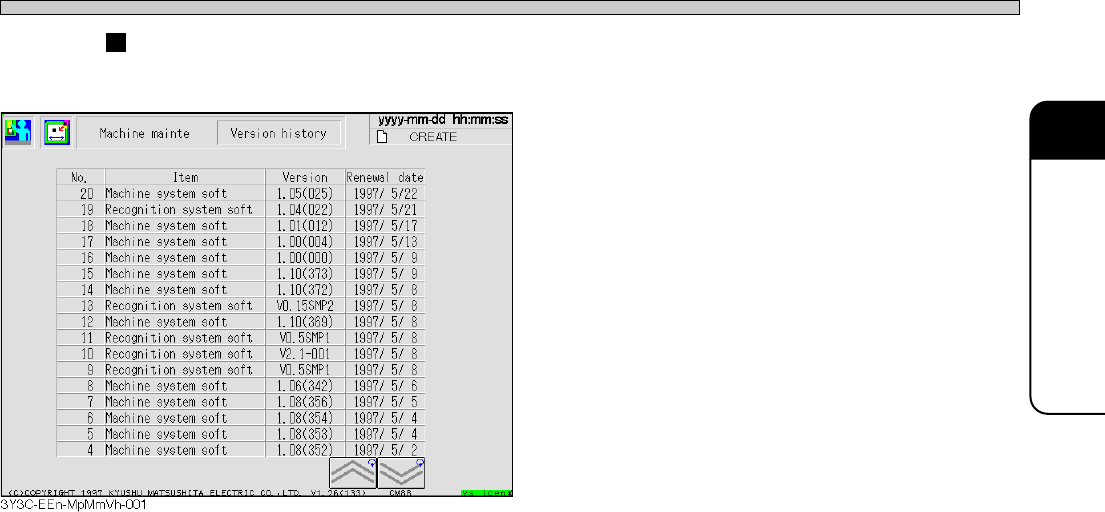

Version history
The update history of machine and recognition system software are displayed.
Machine or recognition system software is displayed on the blank for item, and the date of update
and version number are displayed in descending order.
3Y3C-E-MMD02-A01-03
Page 2-26
Machine Maintenance
2-2-4 Head Maintenance
Removing and setting heads during cleaning and changing them are supported, and machine
parameter required after operation is automatically carried out.
Carry out the operation according to directions.

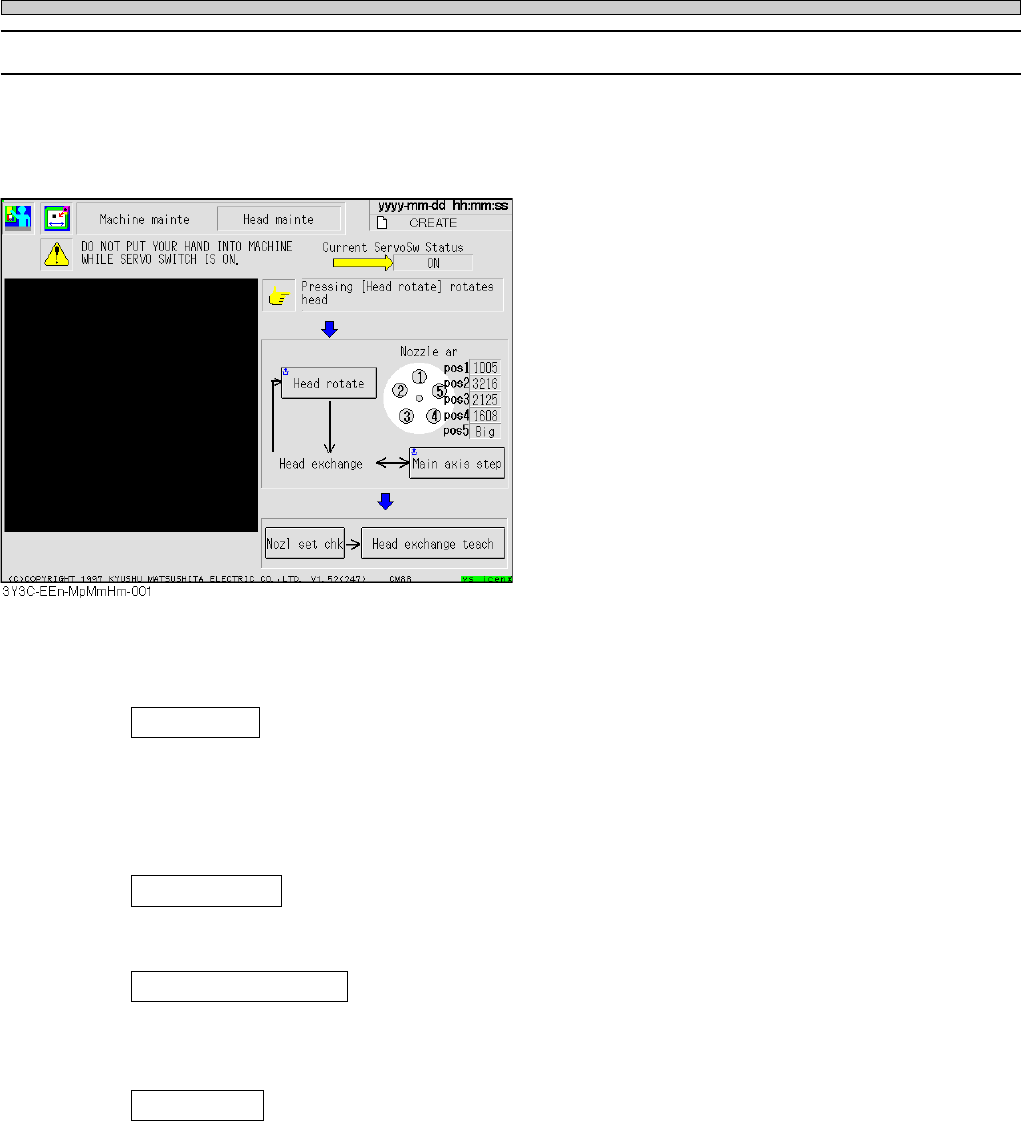

<Removing and Setting Heads>
Head rotate
The transfer head at the pickup side (station 12, 1, and 2) of main axis rotates by 180degrees.
Use this for removing and setting nozzles before removing and setting heads.
“Head exchange”
Turn off the servo switch, and remove and set the transfer heads.
Main axis step
Use this to move the next head to the position for removing and setting (station 12, 1, and 2).
Main axis rotates by one head (one station).
Head exchange teach
Machine parameter teaching required after setting head is automatically carried out in following
order.
Head angle origin → Head rotate center → Height sensor angle origin → Nozzle height
Nozl set chk
In removing and setting transfer heads, it is necessary to remove and set nozzles.
After setting the nozzle, the machine automatically checks that each nozzle is properly set to the
appropriate position.
3Y3C-E-MMD02-A01-02
