Page 3-24 3Y3C-E-MMD03-A03-00 Check and Solutions 3-2-21 W idth Adjust Error 1. Removing pins over the board size If support pins are set to the outside of board size, remove them. 3Y3C-091P 07JHC2AC
Page 3-23
SOLUTIONS FOR ERROR
3
Check and Solutions
3Y3C-E-MMD03-A02-02
3-2-20 Height Sensor Voltage Error
1. Connecting connectors
Check the connection between the CPU box board (NFM0CL) connector (CN1), and recover the
error if necessary.
2. Adjusting the volume

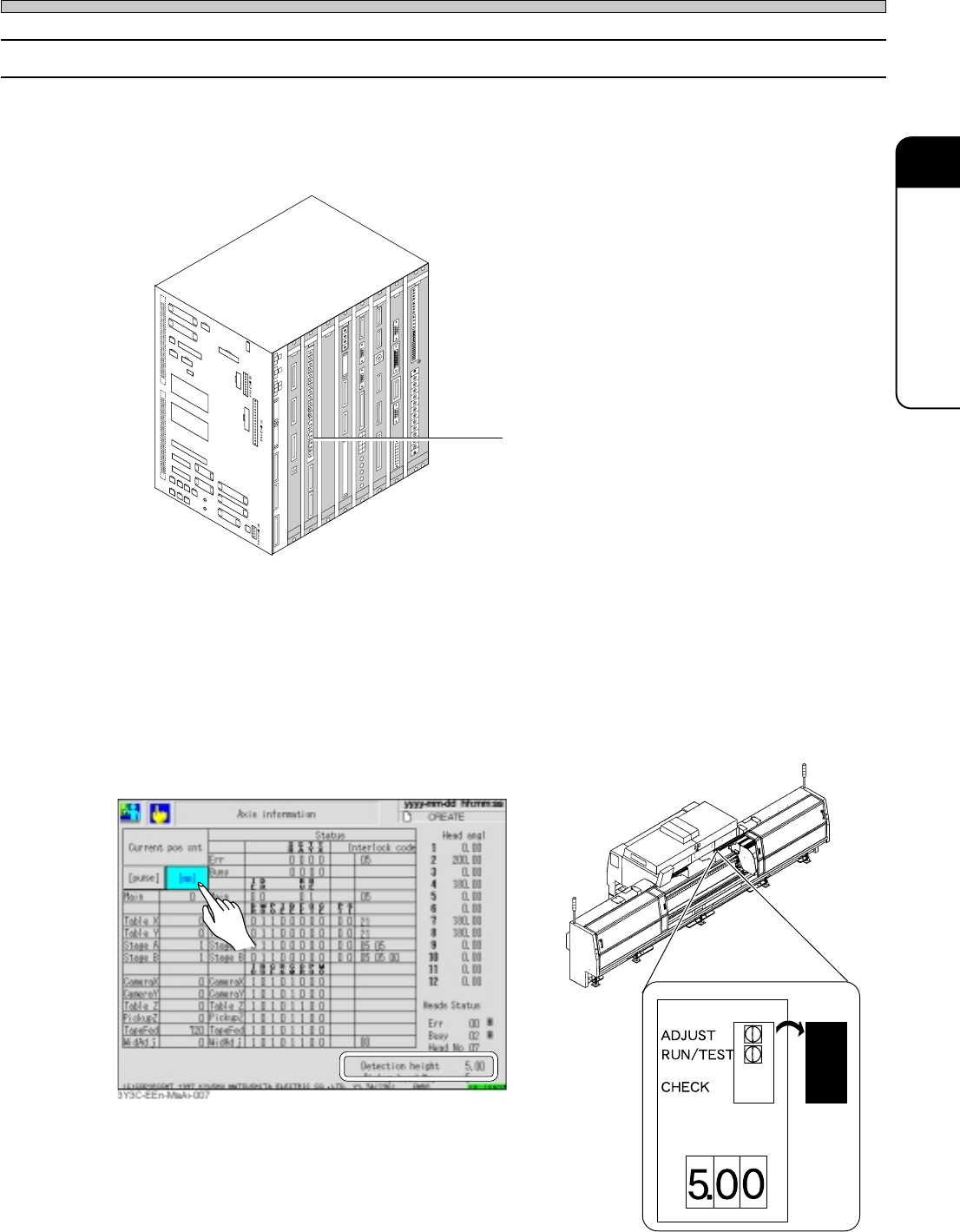

Display the “Axis information” screen after “Machine adjust,” and press the [mm] switch of current
position count. Check that “Detection height ∗. ∗ ∗” displayed at the lower right of the screen
matches the value displayed at the volume LED of the height sensor.
If the value is not proper, turn the knob of “ADJUST” to adjust it to the same one. (The value for the
axis information changes.)
CN01
CN25
CN00
CN13
CN20
CN51
CN27
CN5
SW1
CN4
CN19
CN23
CN24
CN50
CN26
CN14
CN28
CN29
CN30
CN31
CN32
CN33
CN34
NR1
NR2
CN18
CN8
CN7
CN
TEST 3
CNTEST 4
CNTEST 1
CNTEST 2
CN2
CN1
CN21
CN22CN17
CN11
CN12
CN9
CN10
CN15
CN1
CN2
CN3
OPT1OPT2OPT3OPT4OPT5
OPT6OPT7
CN1
CN2
CN3
CN1
CN2
CN3
CN4
CN4CN2
CN1
CN3
CN5
CN
10
CN
9
CN
7
CN
6
CN1CN2
CN3
CN4
CN5
CN6
CN2
CN3
CN4
CN5
CN
8
NC
GND1
12V
GND2
GND1
+5V
+24V
-12V
+12V
+5V
GND3
+24V
-12V
+12V
GND2
GND1
+5VC
NC
GND3
+24V
-12V
GND2
+12V
GND1
+5V
NC
L
N
FG
EC55CA
NFM0CK CMM7CA
MCMAER
PRM7EQ
ELLZEA
SCMWEE
PU02E1
GND
+5V
NC
GND1
GND
+5V
3Y3C-109E
Board (NFM0CL)
3Y3C-AI01
3Y3C-121E
∗ The description is for the CPU BOX for CM88S-M.
Page 3-24
3Y3C-E-MMD03-A03-00
Check and Solutions
3-2-21 Width Adjust Error

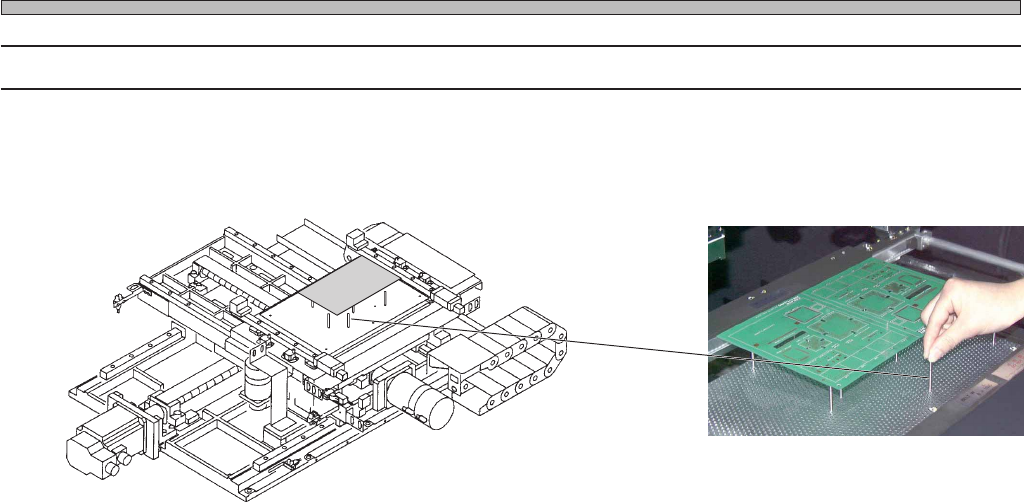

1. Removing pins over the board size
If support pins are set to the outside of board size, remove them.
3Y3C-091P
07JHC2AC
Page 3-25
SOLUTIONS FOR ERROR
3
3Y3C-E-MMD03-A03-01
Check and Solutions
3-2-22 CPU Power Supply Fault
PRU Power Supply Fault
1. Checking the voltage of checking pin
CM88S-M/M1, CM88C-D
If following voltage cannot be measured between checking pins of power board at the CPU box,
the board may have a trouble. Make contact with us for changing.
Between GND3 pin and + 24V pin : + 24V
Between GND2 pin and + 12V pin : + 12V
Between GND2 pin and – 12V pin : – 12V
Between GND1 pin and + 5VC pin : + 5V
CM88S-MU
If following voltage cannot be measured between terminals of the power supply for specified
voltage at the CPU box, the board may have trouble.
P100E-24 : + 24V
P50E-12 : + 12V
P15E-12 : + 12V
P100E-5 : + 5V
2. Canceling the tripped circuit protector
Note) Even if the trouble is not confirmed at the cure 1, carry out the cure 2.
If the circuit protector reset switch at the left side of CPU BOX protrudes by a few millimeters, it is
tripped out. To reset, press it with a pen, etc. with a fine point.
If the upper circuit protector is tripped out, the output system of solenoid, etc. may be in trouble. If
the lower one is tripped out, the input system of sensor, etc. may be in trouble. Check which one is
tripped out, then make contact with us.
