Page 1-1

3Y3C-E-MMZ0A-A01-00

Appendix

MOUNTING/PICKUP

POSITION CALIBRATION

(OPTION)

Table of Contents

1-1 Mounting Position Calibration.............................................................. 1-2

1-2 Pickup Position Calibration ................................................................. 1-11

Mounting/Pickup Position Calibration

Background and Outline of “Mounting Position Calibration”

• Background

The accuracy of the measuring instruments are calibrated regularly. The system that calibrates

the accuracy of the mounters regularly is also manufactured.

To maintain the accuracy and quality durability, use this system.

• Outline

CM88S(C) can be equipped with five nozzles at each head. Accuracy will be improved by correct-

ing each angle of each nozzle. Nozzles are specified, dummy chips are mounted, the accuracy is

measured by the board recognition camera and the correction value will be input automatically so

that the accuracy will improve. The measurement result is output from the printer automatically.

If this procedure is performed twice, the first data will be the current mounting accuracy and the

second data will be the one corrected this time.

Background and Outline of “Pickup Position Calibration”

• Background

The correct pickup posture will improve accuracy and reduce the pickup errors. To calibrate the

nozzle position accuracy regularly, this system is manufactured.

• Outline

To pick up minute chips, it is required to be very accurate.

So, the accuracy will be calibrated in the following procedure so that the chip will be picked up at

its center. The accuracy of 0603 and 1005 nozzles is recognized by the camera for each head, it

is automatically fed back and the accuracy of the 12 heads is equalized.

Page 1-2

3Y3C-E-MMZ0A-A01-00

1-1 Mounting Position Calibration

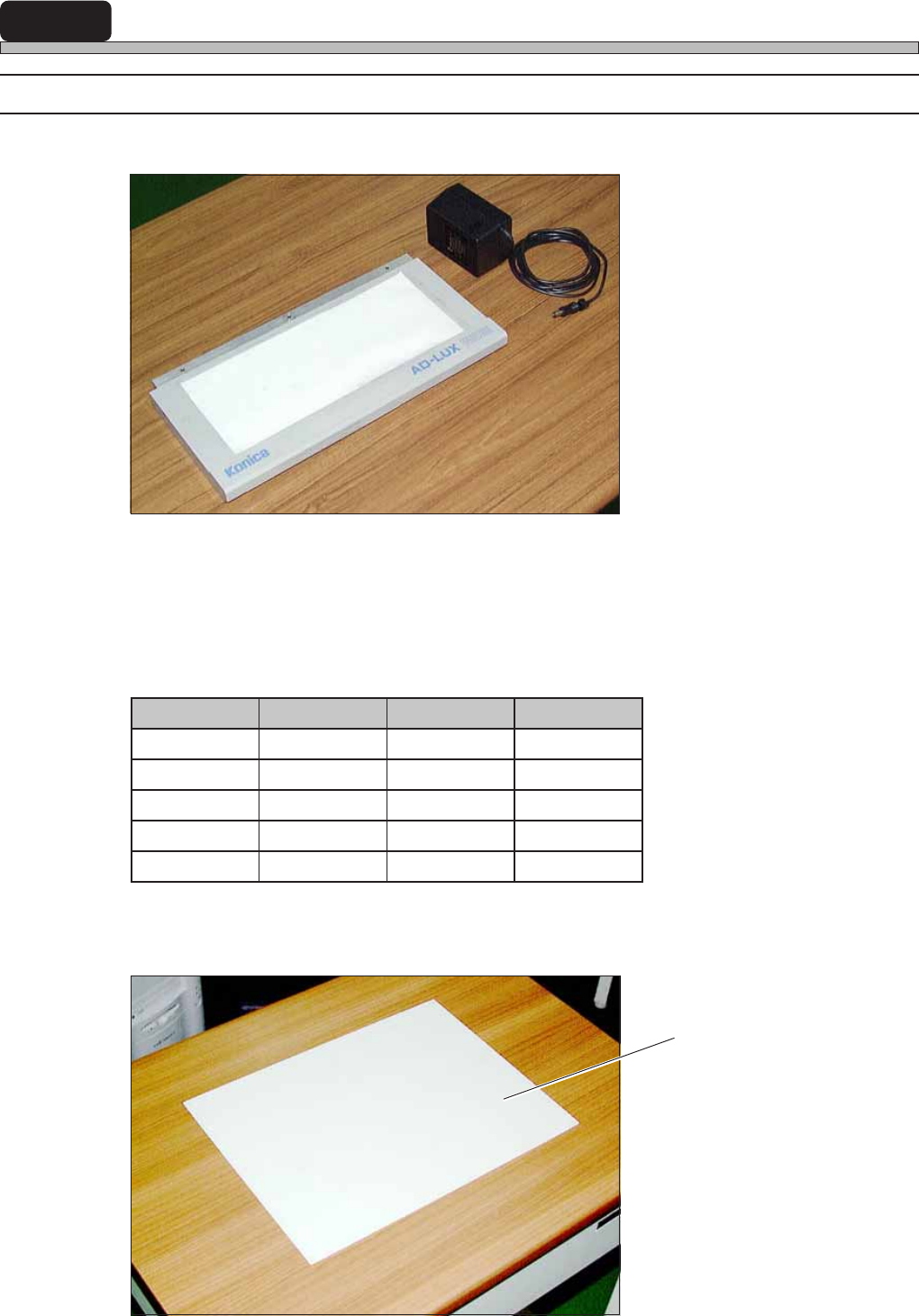

1-1-1 Preparation

1. Light Source

2. Extension Cord

Prepare this for yourself.

3. Data (Floppy Disk or PT) and Chips

Main tact time = 0.1 s

4. Exclusively Reserved Board

Stick a double-sided tape on the mounting side.

elzzoN pihC feR GAM

5001R5001552

8061C8061152

5212C5212152

6123C6123152

3060C3060552

Exclusively Reserved Board

3Y3C-135P

3Y3C-134P

3Y3C-119TE

Page 1-3

CALIBRATION

3Y3C-E-MMZ0A-A01-00

Mounting Position Calibration

1-1-2 Mounting Position Calibration Procedure

Transfer the data to the machine by performing 1 or 2 operation.

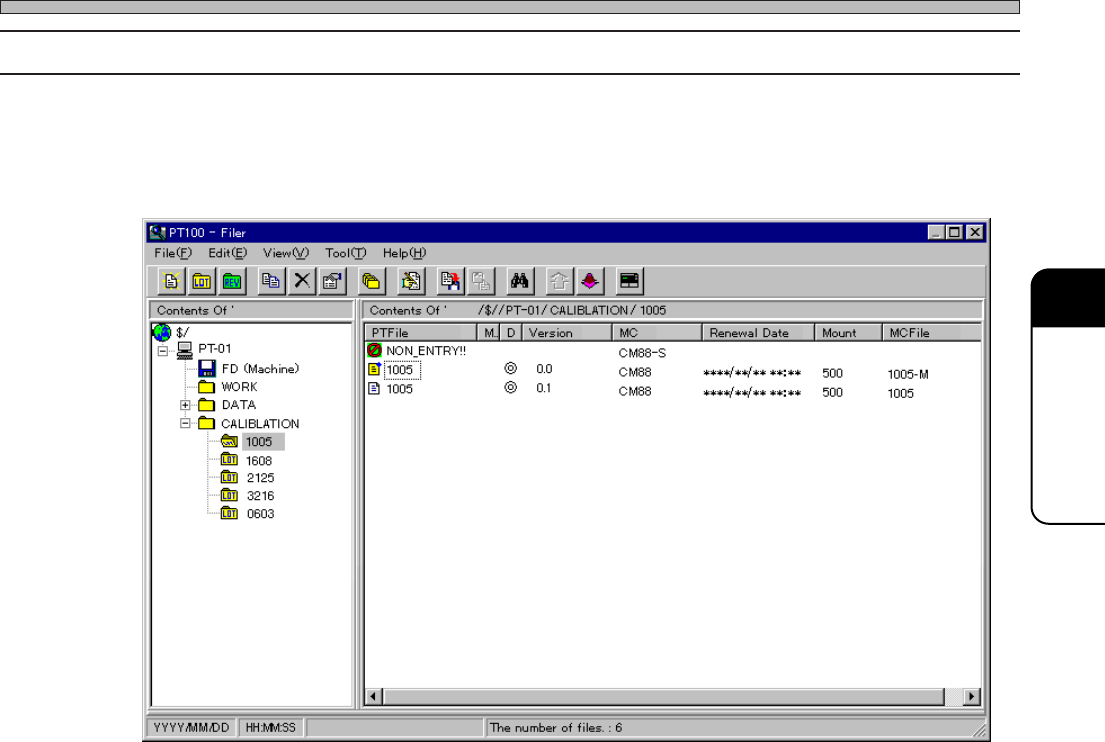

1. PT Operation

According to the nozzles (chips) to calibrate, select and transfer the data to the machine.

2. Floppy Operation

Transfer the data from the floppy disk to the machine.
