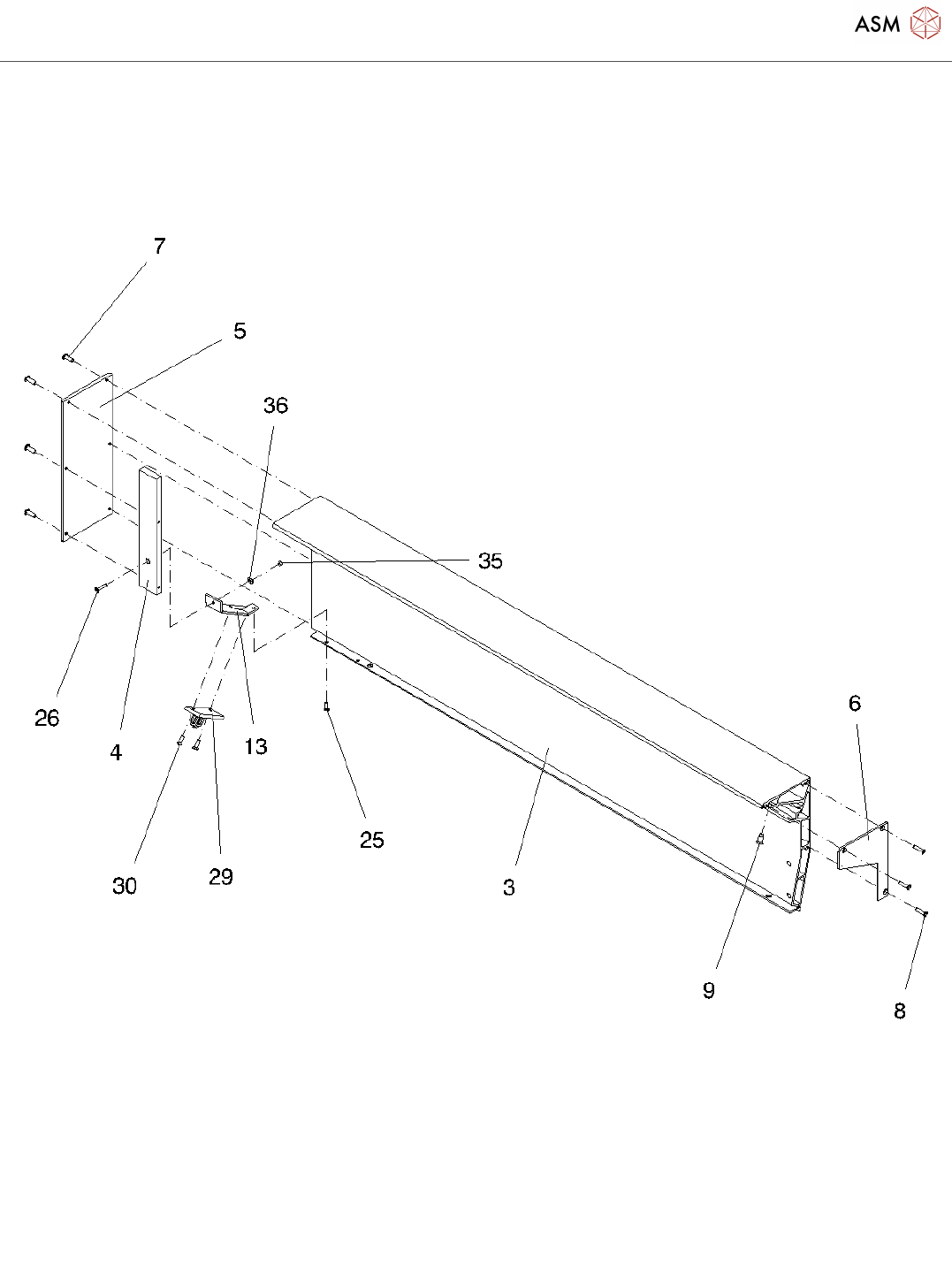

Cover input right side
Page 4 / 6 24.11.2021
Cover input right side
Page 5 / 6 24.11.2021
Pos. Item no. Description Part marking
1 00376249S01 PROTECTION S50 INPUT SIDE RIGHT Spare Part
2 00329590-01 PROTECTION S50 SIDE PANEL 1
3 00329560-02 PROTECTION S50 SP-PROFILE LEFT
REWORK
4 00329588-01 PROTECTION S50 MOUNT
5 00329562-01 PROTECTION S50 COVER
6 00329564-01 PROTECTION S50 REINFORCEMENT
LEFT
7 00320859-01 CROSS RECESSED RAISED CHEESE
HEAD SCREW
8 00342103-01 SLOTTED COUNTERSUNK HEAD
SCREW
9 00334136-01 BLIND RIVET NUT M5 UT/ALS 4
10 00329586-01 PROTECTION S50 FRAME PROFILE
LEFT REWORK
11 00329565-01 PROTECTION S50 FRAME PROFILE
LEFT REWORK
12 00329587-01 PROTECTION S50 FRAME PROFILE
REWORK
13 00342611-01 SWITCH PLATE LEFT
14 00376245-01 FRONT PANEL 1, CPL. SPARE PART
17 00329765-01 BRUSH REWORK
18 00330621-01 PROTECTION S50 SAFETY HOOD
SCREEN
SPARE PART
19 00334111-01 PROTECTION S50 FRAME PROFILE 2
REWORK
20 00334218-01 PROTECTION S50 SAFETY PAD
INSIDE
21 00318276-01 CROSS RECESSED RAISED CHEESE
HEAD SCREW
22 00319036-01 DIN EN ISO 7380-M5 X 20-12.9
23 00334263-01 CROSS RECESSED RAISED CHEESE
HEAD SCREW
24 00319285-01 CROSS RECESSED RAISED CHEESE
HEAD SCREW
25 00095312S01 SCREW M4*10 DIN965 Spare Part
26 00095314-01 SLOTTED COUNTERSUNK HEAD
SCREW
27 00200240-01 DIN EN ISO 7380-M3 X 6-12.9
28 00330716-01 PUSH-BUTTON BUFFER DM13 SPARE PART
Cover input right side
Page 6 / 6 24.11.2021
Pos. Item no. Description Part marking
29 00315374-01 BOW FOR SWITCH AZ15ZVR
30 00312067-01 SLOTTED COUNTERSUNK HEAD
SCREW
31 00330762-01 PROTECTION S50 CELLULAR
RUBBER REWORK
32 00334275-02 GROUND WIRE FOR HOOD SPARE PART
33 00335404-01 COUNTERSUNK HEAD SCREW PT
KA40*18
35 00095564-01 HEXAGON NUT
36 00095472-01 PLAIN WASHER A 4.3-140HV-ST
37 00330953-01 CONTACT WASHER FOR SCREW M4
38 00095451-01 LOCK WASHER 4
39 00845027-01 HEXAGON SOCKET HEAD CAP
SCREW M4 X 16-8.8
