Station Software Version 712.0 (R18-2) / Installation Manual 11/2018 Edition
38

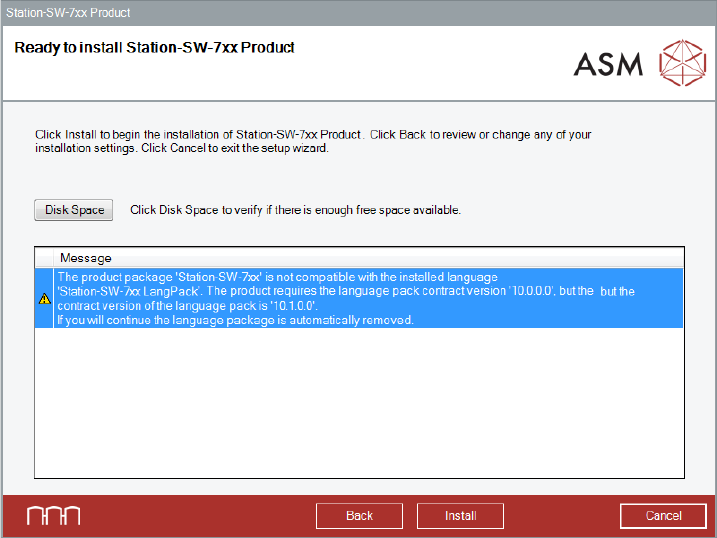

Figure 5-25: Error station software and language pack
Station Software Version 712.0 (R18-2) / Installation Manual 11/2018 Edition
39
5.5 Installing Product Patches
If patches are available for the station software, these must be installed separately.
► Log in under the ASM_Admin user account.
► Insert the installation media and mount the *.iso file.
► Open Windows Explorer.
► Double-click the Station_SW_Patches.exe file to start installing the product patches for the
station software.
► The Welcome dialog box of the patches setup wizard is displayed.

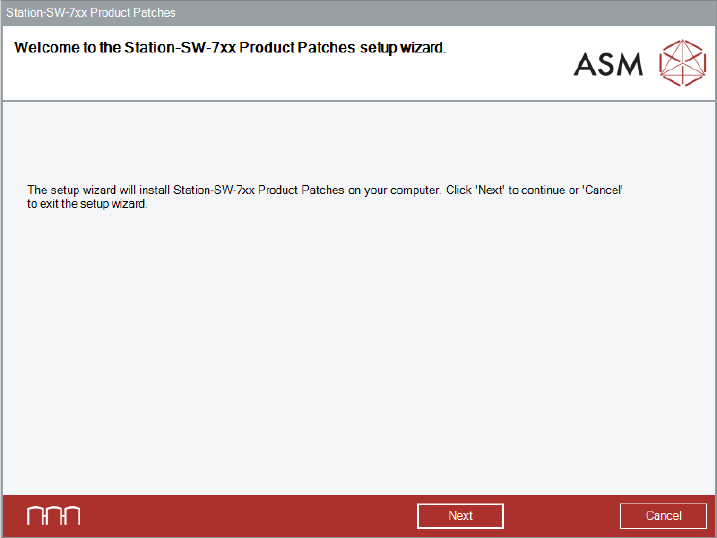

Figure 5-26: Welcome dialog box
► Click the Next button.
Station Software Version 712.0 (R18-2) / Installation Manual 11/2018 Edition
40
The Show License dialog box is displayed.

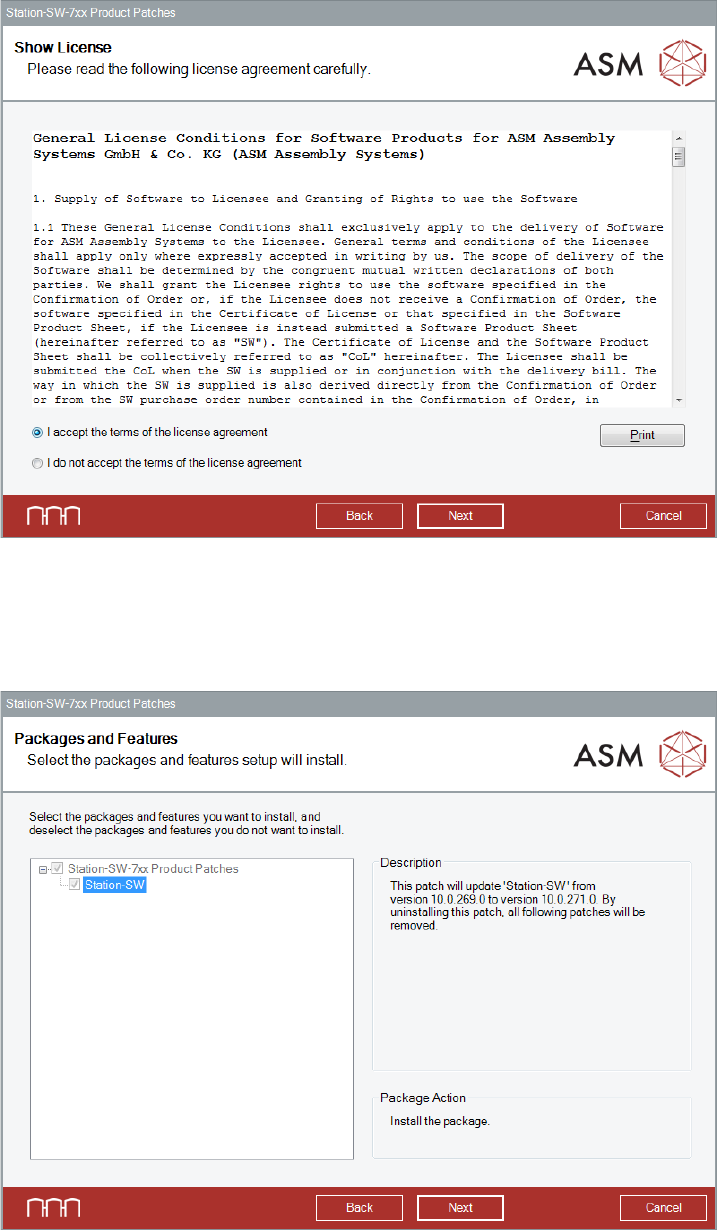

Figure 5-27: Accepting license
► Select I accept the terms of the license agreement to accept the license conditions.
► Click the Next button.
The Packages and Features dialog box is displayed.
Figure 5-28: Selecting packages and features
► Click the Next button.
