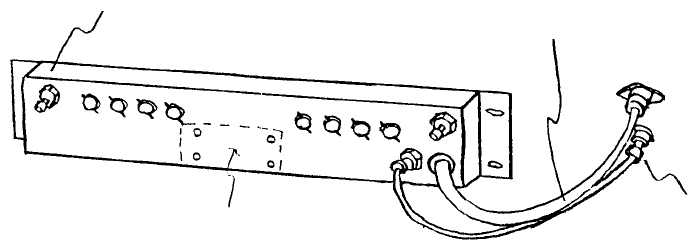

4. Feeder Bank PWB / Feeder Interface PWB Replacement

Feeder interface PWB

ir coupler nipple

PJ032009005

E93887210A0

Feeder bank relay cable 3

E2641721000

Connector bracket

Fig. 9-4-1

Replacement sequence

(1) Disconnect feeder bank relay coupler 3 & air coupler nipple from main body.

(2) Remove mounting screws and disconnect connector from main body.

(3) Disconnect plug connectors of feeder bank PWB or feeder interface.

(4) Remove the 8 small pot screws of the feeder bank PWB or the 4 screws of the feeder interface PWB

and replace with a new board.

(5) Reassemble in reverse sequence.

1-94

5. Bank Up Cylinder Replacement (Optional One-Shot Replacement Base)

Selecto

PV0151170A0

Roller leve

PV010505000

Bank lifte

Fig. 9-5-1

(1) Turn main power source OFF

(2) Turn selector & left / right roller levers ON. Raise bank lifter.

(3) Loosen and remove bank up cylinder rod & lifter cylinder shaft.

(Dia. 9 - 5 - 2) On side to be replaced

1-95

Left PA500750200

Right PA500750100

Bank up detec Bank up

cylinder tor cable

Bank up detector cable

Bank up cylinder mounting

screw

E2756721000

Lifter cylinder shaft

Drive cylinder ass

mounting screw

Bank lifte

Only attach bank up detector cable on the left.

Lengths differ:

Front is E95577250AO

Rear is E95577250AO

Fig. 9-5-2
