4. Potraito Light Bulb Replacement
When light burns out, follow the instructions to replace.
Sequence
(1) Switch power to main body of mounter OFF.
(2) Remove stop screw in upper part of signal light and remove head cover & globe. (Refer to Dia. 11 -
4 - 1.)
(3) Replace light bulb.
(4) Reassemble in reverse sequence.
Danger! To avoid serious injury due to shock, turn main power switch OFF.
Do not confuse a wall switch for the main power switch.
Braided rubbe
r
stopper
Mounting angle
Grounding
screw
Pole
Globe
Top cove
r
Hex nut
Allen head scre
w
(Worm screw
)
Body cove
r
Fuse holde
r
Light bulb

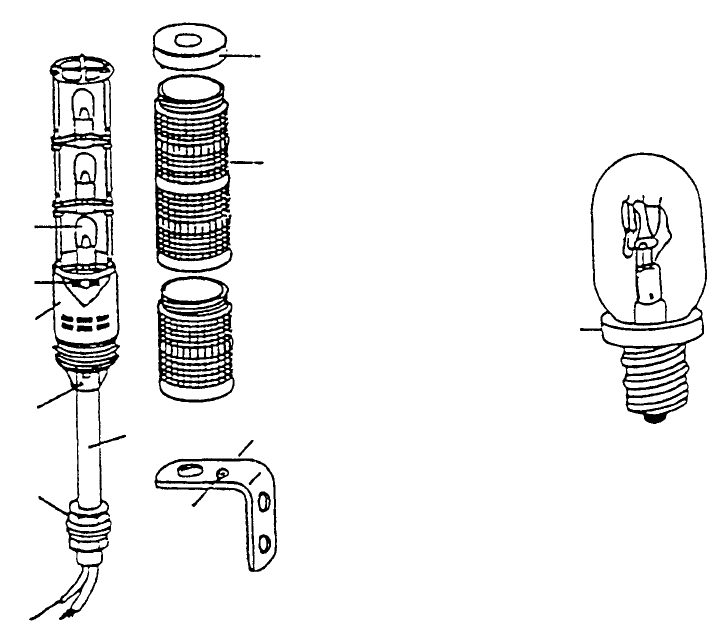

Fig. 11-4-1
1-109
Chapter 12 Feeder Float / Feeder Detection Sensor
SL6041092TN
SEMS cap
Feeder float senso
r
Cable tie
Sensor cable
Y-axis frame
Fron
t
E95527250A0
Front feeder receptacle for
projector relay cable assy
E95517250A0
Front feeder receptacle for
projector cable assy
Cable bundle
band
Y-axis frame
E95537250A0
E95547250A0
Rear feeder
receptacle for
projector cable
assy
E93907250A0
Feeder detection
sensor assy
Front feeder receptacle fo
r
receptor cable assy
E95567250A0
Rear feeder
receptacle for
receptor cable assy
E93897250A0
Feeder detection
sensor assy
Fig. 12-1-1
1-110
1. Sensor Replacement
(1) Turn main power OFF.
(2) Cut cable tie with pliers and remove mounting screw (1).
(3) Reassemble in reverse sequence.
2. Sensor Height Adjustment
Sensor height adjustment is necessary when FS bracket has become bent.
(1) Loosen FS bracket mounting screw until spring washer yields.
(2) Adjust FS bracket so that its top face is 125 +0.3/0mm from top face of bank. Also, left & right FS
brackets (receptor & projector) must have a height variance no greater than 0.1mm.
Upper surface of bank
Upper surface of bank
Fig. 12-1-2
3. Beam Alignment
(1) Turn main power ON.
(2) Move projector & receptor to align beam. When in alignment, both red & green LED in the receptor
will light. (Red signals movement, green signals all safe.)
