Chapter 12 Feeder Float / Feeder Detection Sensor
SL6041092TN
SEMS cap
Feeder float senso
r
Cable tie
Sensor cable
Y-axis frame
Fron
t
E95527250A0
Front feeder receptacle for
projector relay cable assy
E95517250A0
Front feeder receptacle for
projector cable assy
Cable bundle
band
Y-axis frame
E95537250A0
E95547250A0
Rear feeder
receptacle for
projector cable
assy
E93907250A0
Feeder detection
sensor assy
Front feeder receptacle fo
r
receptor cable assy
E95567250A0
Rear feeder
receptacle for
receptor cable assy
E93897250A0
Feeder detection
sensor assy
Fig. 12-1-1
1-110

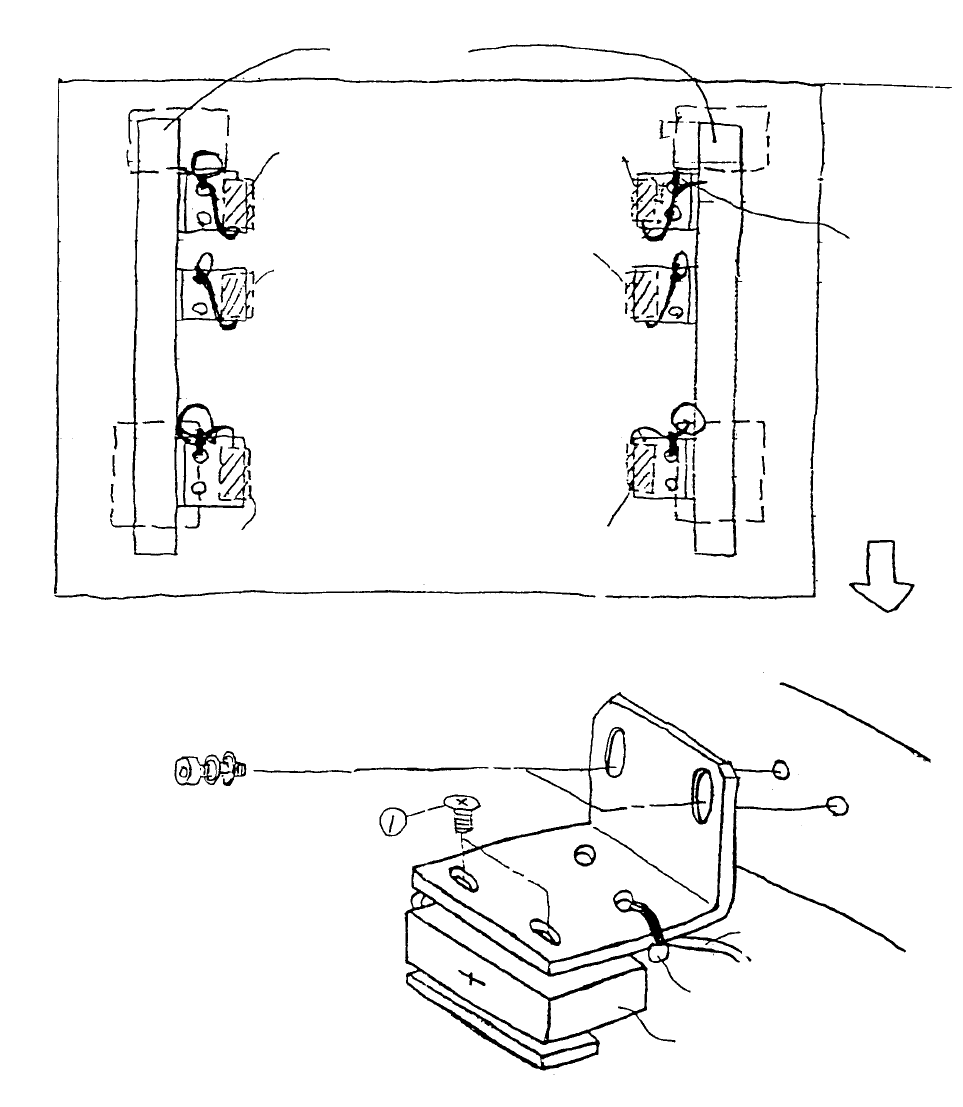

1. Sensor Replacement
(1) Turn main power OFF.
(2) Cut cable tie with pliers and remove mounting screw (1).
(3) Reassemble in reverse sequence.
2. Sensor Height Adjustment
Sensor height adjustment is necessary when FS bracket has become bent.
(1) Loosen FS bracket mounting screw until spring washer yields.

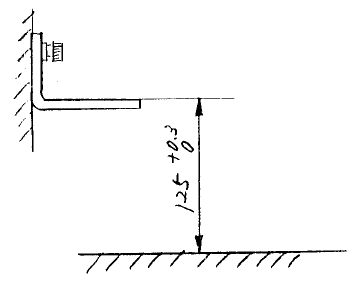

(2) Adjust FS bracket so that its top face is 125 +0.3/0mm from top face of bank. Also, left & right FS
brackets (receptor & projector) must have a height variance no greater than 0.1mm.
Upper surface of bank
Upper surface of bank
Fig. 12-1-2
3. Beam Alignment
(1) Turn main power ON.
(2) Move projector & receptor to align beam. When in alignment, both red & green LED in the receptor
will light. (Red signals movement, green signals all safe.)
1-111
Chapter 13 CRT

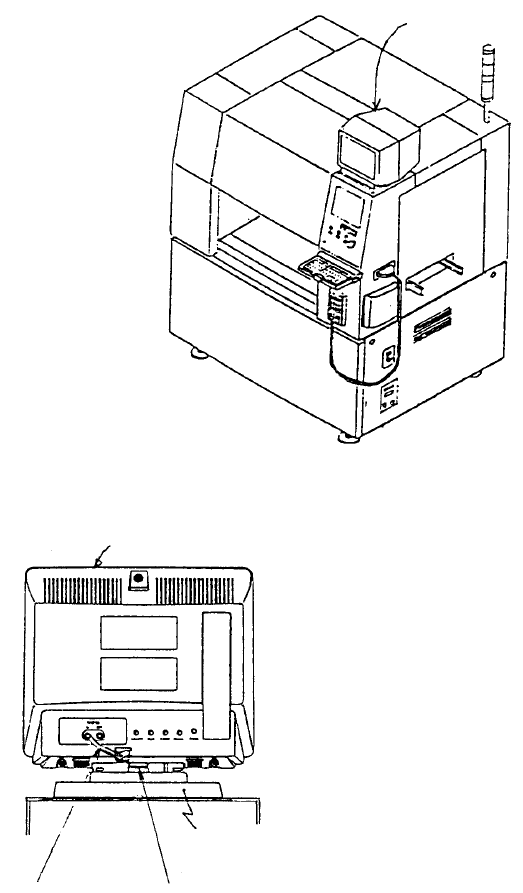

1. Image Monitor Replacement
(1) Remove connector of monitor power cable and remove image monitor.
(2) Remove image monitor cable at the rear of the CRT head.
(3) Lower button at the bottom of the head and slide head towards the front of the machine. Lift head
and replace.
(4) Reassemble in reverse sequence.
Base
Button
Image monitor cable
Head
Image monito
r
Fig. 13-1-1
Fig. 13-1-2
1-112
