2. Base Superstructure Layout

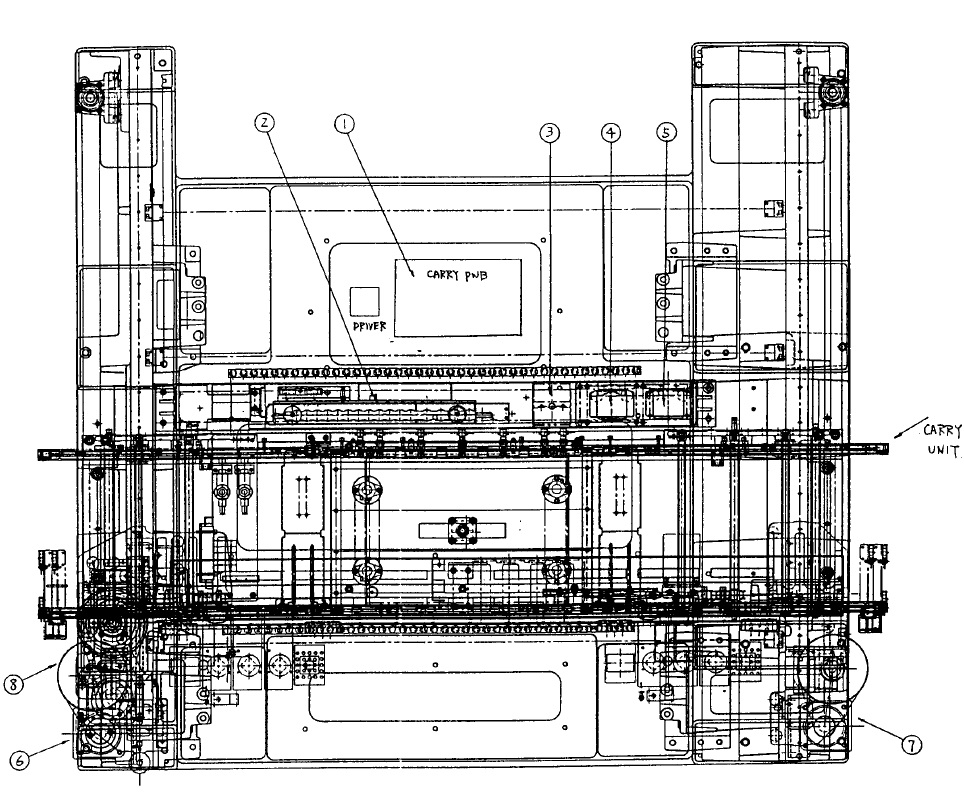

Dia. 17 - 2 - 1 provides a drawing of the superstructure.
Parts Names
1 Conveyor unit (PWB assy) (5 phase stepping driver)
2 ATC unit
3 CAL light (PWB assy)
4 0.4mm VCS camera & light [Optional: BGA light (PWB assy)]
5 Optional: 0.3mm VCS camera & light [Micro BGA light (PWB assy)]
6 Y left axis AC servo motor
7 Y right axis AC servo motor
8 X axis AC servo motor

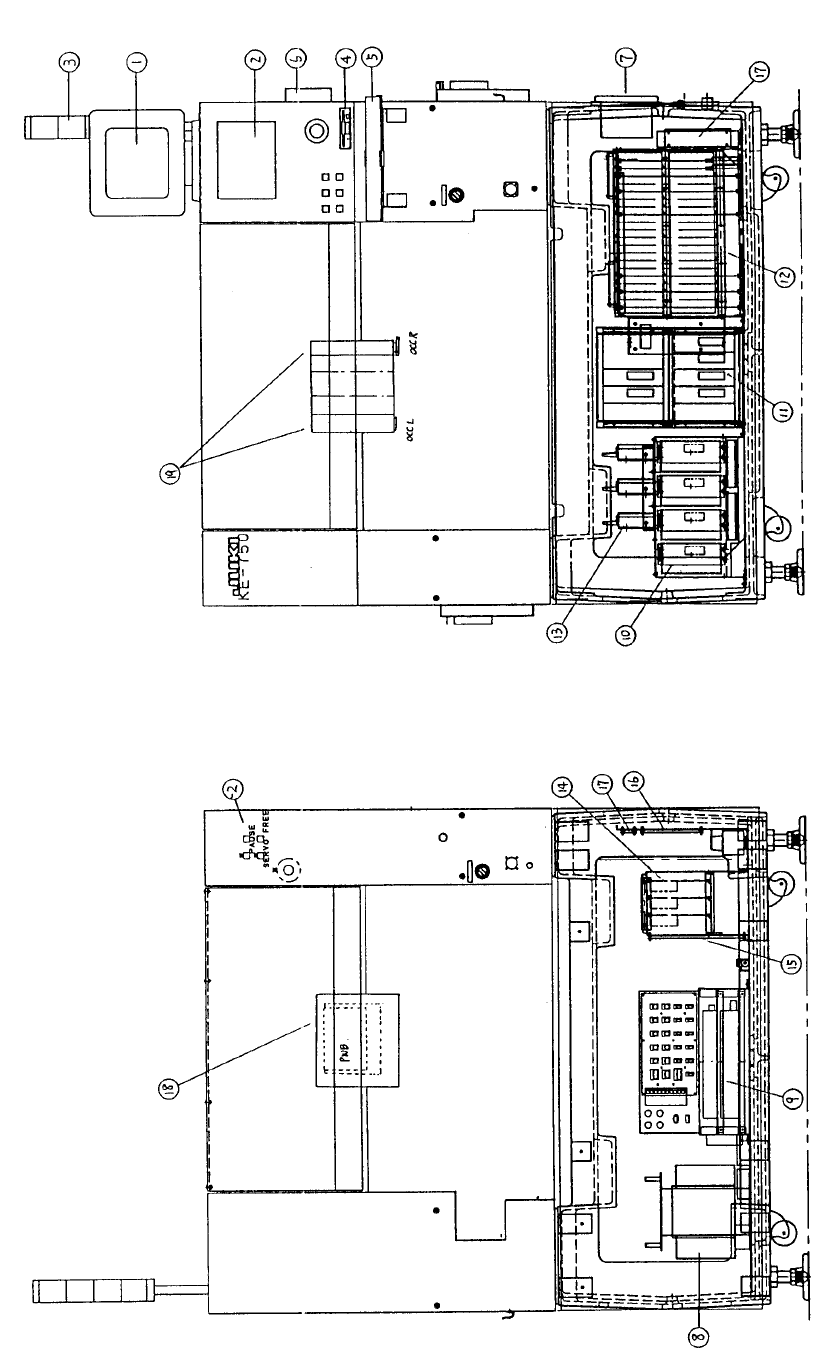

Fig. 17-2-1 Base Frame Construction
1-118

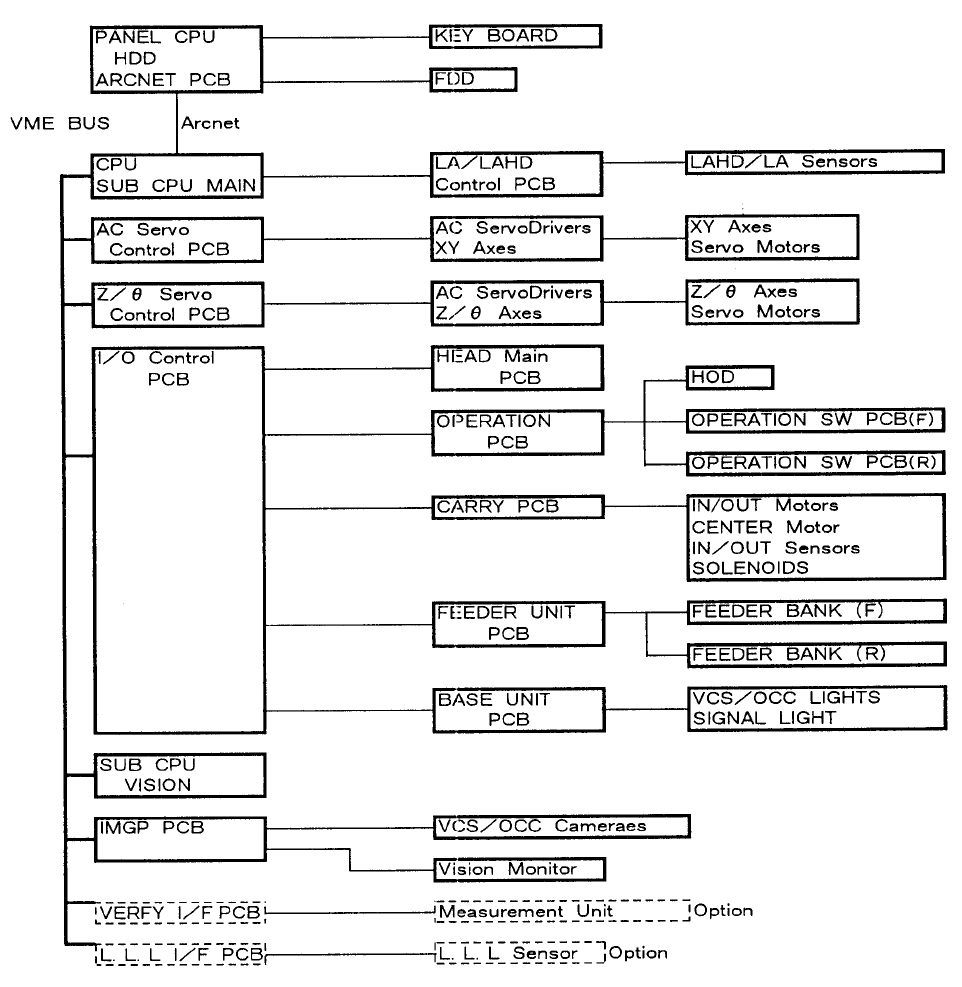

Electric Parts Structure
1-119
