1. Application This manual lays out the operating specificat ions for the parameters of the GX-3MS . 2. Definitions 2.1 Defining Coordinates All parameter values and codes are defined in accor dance with the system for c…
4. 13 VCS Offset............................................................................................................................... 2-52
4. 13. 1 VCS Camera Focus Offset....................................................................................... 2-52
4. 13. 2 VCS Camera Scaling ............................................................................................... 2-55
4. 13. 3 VCS Camera Offset.................................................................................................. 2-57
4. 13. 4 VCS Cumulative Mounting Offset ............................................................................ 2-59
4. 13. 5 VCS Common Parameters....................................................................................... 2-62
4. 14 Coplanarity Offset.................................................................................................................... 2-64
4. 14 .1 L3 Focus Offset........................................................................................................ 2-64
4. 15 ATC Offset............................................................................................................................... 2-69
4. 16 CVS Offset............................................................................................................................... 2-72
4. 17 Standard Pick Point Position Offset......................................................................................... 2-74
4. 18 General Mounting Offset ......................................................................................................... 2-76
4. 19 Head Wait Position.................................................................................................................. 2-77
4. 20 Printing..................................................................................................................................... 2-79
4. 21 Others...................................................................................................................................... 2-80
4. 21. 1 File Input................................................................................................................... 2-80
4. 21. 2 File Open.................................................................................................................. 2-80
4. 21. 3 EEPROM Clear........................................................................................................ 2-82
4. 21. 4 VCS Version Upgrade.............................................................................................. 2-83
4. 22 Exit........................................................................................................................................... 2-85
2-ii
1. Application
This manual lays out the operating specifications for the parameters of the GX-3MS .
2. Definitions
2.1 Defining Coordinates
All parameter values and codes are defined in accordance with the system for coordinates given below.
(1) XY
Using the front of the machine as reference point, right movement is in +X coordinates,
movement towards the back is +Y.
(2) Z
Using the PWB surface as origin, upward movement is +Z.
(3) θ
When looking from above, clockwise motion is +θ
3. Basic Operating Procedures
3.1 Start Up
Select "MS Parameters" from the menu.

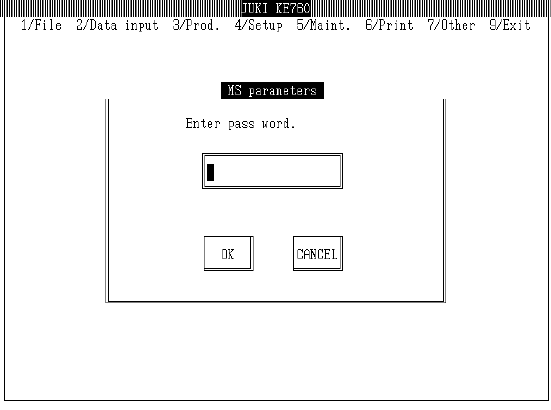

3.2 Input of Password
After selecting MS Parameters, the password is requested.
Enter password.
Once password is confirmed, MS parameter input mode is accessed.
2-1

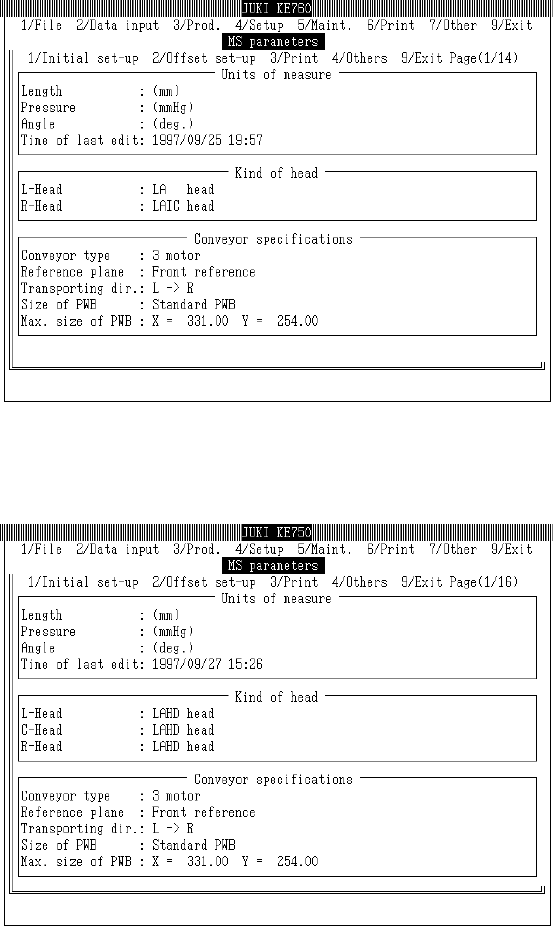

3.3 Initial Screen
Once password is confirmed, the following initial screen will appear.
(KE-760)
(KE-750)
2-2
