4.4 Options 4.4.1 Options Select "1/Initial set-up" then "4/Options" and the option setting dialog will appear as follows. (KE-730) or (KE-740) 2-19
When changing boards by type, the units above only change Y coordinates.
When set values are changed and "Exit" selected, message box will display the changes in fixing
position of the unit.
Select "OK" to verify changes made to the unit.
Fixing parameters for units with changes must be reset.
Select "Cancel" to return to setting dialog.
Limitation: Conveyors will not move for KE-750 / KE-760 with specifications set for a single motor.
2-18
4.4 Options
4.4.1 Options

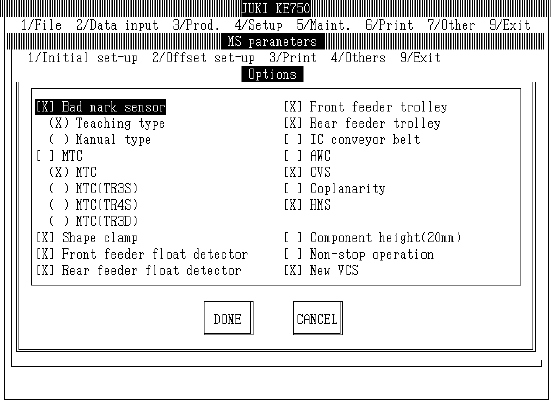

Select "1/Initial set-up" then "4/Options" and the option setting dialog will appear as follows.
(KE-730) or (KE-740)
2-19
(1) Setting Headings
No. Item Contents
1 Bad Mark Sensor Bad mark sensor option Y/N
Bad mark sensor types
2 MTC MTC option Y/N
MTC option types
3 O/D Stds Outer dimensional standards Y/N
4 Feeder Float Sensor (Front) Front feeder float sensor option Y/N
5 Feeder Float Sensor (Rear) Rear feeder float sensor option Y/N
6 Feeder Bank One-Shot
Replacement Stage (Front)
Front feeder bank one-shot replacement stage option Y/N
7 Feeder Bank One-Shot
Replacement Stage (Rear)
Rear feeder bank one-shot replacement stage option Y/N
8 IC Recovery Belt IC recovery belt option Y/N
9 AWC Automatic board width adjustment equipment option Y/N
10 CVS Parts verification option Y/N
11 Coplanarity Coplanarity option Y/N
12 HMS Height measuring equipment option Y/N
13 Height for 20mm Parts Setting for 20mm high components option Y/N
14 Non-Stop Operation Non-stop operation option Y/N (Special)
15 New Image Processing
Equipment
Distinguishes new image processing equipment (new, current)
(2) Method of Setting
– Select option units listed in the above table with the check box.
– If the setting for installed units is changed to not installed, machine setup will automatically
be modified from "Unit Available" to "Unit Not Available".
– When unit add ons change a setting from "not installed" to "installed", machine setup will
automatically change to "Unit Available".
– When changes are made to deal with 20mm high components, it is necessary to reset laser
default height.
Make changes and select "Exit" and message box with laser default height will appear.
Select "OK" and the values will be set as default in the MS parameters. Afterwards, be sure
to reset laser height in "Laser Offset". Select "Cancel" to return to setting dialog.
