4.6.2 Conveyors

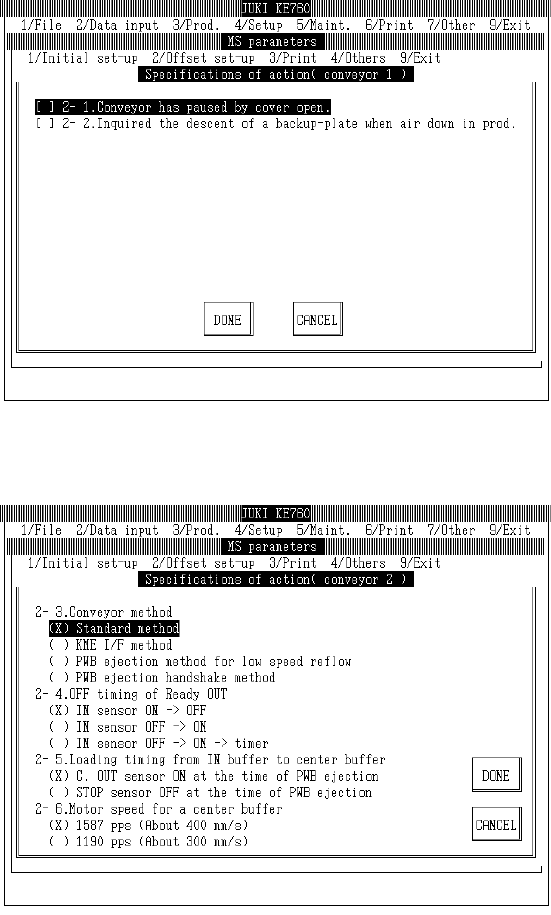

Select "1/Initial set-up" then "6/Specifications of action", "2/Conveyor 1" and the conveyor movement
spec setting dialog will appear as follows.
Select "1/Initial set-up" then "6/Specifications of action", "3/Conveyor 2" and the conveyor movement
spec setting dialog will appear as follows.
Limitation 1. Only the standard form of the KE-750 / KE-760 transport is valid.
Do not select non-standard forms.
2-25
Select "1/Initial set-up" then "6/Specifications of action", "4/Conveyor 3" and the conveyor movement
spec setting dialog will appear as follows.
(1) Setting Items
No. Item Contents
1 2 - 1. Temporary stop when cover
opened during conveyance
Specification for cover opening during board transport
[ ] : Continue (Default value)
[×] : Temporary stop (Restart when closed)
2 2 - 2. Inquiry - Did back up plate
descend due to air pressure drop
during production
Inquires whether back up plate descended when air pressure dropped during
production
[ ] : Do not inquire (Default Value)
[×] : Inquire
3 2 - 3. Type of transport Type of conveyance
[×] Standard form (Default value)
[ ] Kumatsu I/F type
[ ] Low speed reflow board removal type
[ ] Board removal handshake type
4 2 - 4. Timing of OFF in Ready OUT Timing for turning "Ready OUT" to OFF
[×] IN Sensor ON OFF : When changed from ON to OFF (Default value)
[ ] IN Sensor OFF ON : When changed from OFF to ON
[ ] IN Sensor OFF ON Timer: Delay when changed from OFF to ON
5 2 - 5. Infeed timing from In buffer to
Center buffer
Timing of infeed from In buffer to Center buffer
[×] C. OUT sensor ON when board emitted (Default value)
[ ] STOP sensor OFF when board emitted
6 2 - 6. Center buffer motor speed Motor speed for center buffer
[×] 1587pps (approx. 400mm/sec) (Default value)
[ ] 1190pps (approx. 300mm/sec)
7 2 - 7. Error detection intervals Error detection interval
[×] 10 sec. for motor, 2 sec. for back up (Default value)
[ ] 30 sec. for motor, 6 sec. for back up
8 2 - 8. Processing from B.A. IN Processing from Board Available In
[×] Nothing happens (Default value)
[ ] ON starts IN motor drive
(2) Method of Setting
– Select option units listed in the above table with the check box or tuning button.
2-26
4.6.3 Various
Select "1/Initial set-up" then "6/Specifications of action", "5/Others" and the dialog will appear as
follows.
(1) Setting Items
No. Item Contents
1 3 - 1. Invalidate START switch
when cover open
START switch specifications when cover open
[ ] : Valid (Default value)
[×] : Invalid
2 3 - 2. Password input when
machine setup selected
Password input specifications when machine setup selected
[ ] : No password input (Default value)
[×] : Password input
3 3 - 3. Password input when
self-calibration selected
Password input specifications when self-calibration selected
[ ] : No password input (Default value)
[×] : Password input
(2) Method of Setting
– Select option units listed in the above table with the check box.
