With teaching closely align sensor beam with CAL block No. 1 mark. Move unit to turn sensor off
and press HOD entry key.
Once completed, select "OK".
When "OK" is selected, bad mark sensor measures CAL block No. 1 mark position.
– Contents of Measurement
(1) Scanning from default position in +X direction, position is measured when sensor turns
ON.
(2) Scanning from default position in -X direction, position is measured when sensor turns
ON.
(3) Based on position calculations in (1) & (2), X direction center of the No. 1 mark is
calculated.
(4) Y direction is measured the same as X. Y direction center of the No. 1 mark is
calculated.
(5) From the center position for the No. 1 mark calculated in (3) & (4) and the known CAL
block No. 1 mark position, fixing position is calculated and modifications made.
Setting is completed.
Select "OK" to return to default operation screen.
Once completed, select "OK".
When "OK" is selected, offset is measured.
2-49
4.12.3 HMS Offset
Select "2/Offset set-up" then "4/Head", "3/HMS Offset" and the HMS offset dialog will appear as
follows.
(1) Setting Items
No. Item Contents
1 Assembling Position Offset value from HMS assembling position (OCC std)
2 Assembling Height Offset value from HSM setting position
(2) Method of Setting
– Enter values directly with the keyboard or follow the internal operating instructions for
automatic input.
– Select HOD device key to enter teaching.
– Operating method of automatic input
Follow instructions to operate and values will automatically acquire.
Once completed, select "OK".
When "OK" is selected, HMS moves to above CAL block No. 1 mark.
2-50
– Contents of Measurement
(1) Based on the difference of height acquired from HMS, the center position of the CAL
block No. 1 block is measured.
(2) Calculation is carried out from the difference of the No. 1 mark center position in (1) and
the known CAL block No. 1 mark and modification made.
(3) Based on the CAL block surface height acquired from HMS, fixing height is calculated
and modification made.

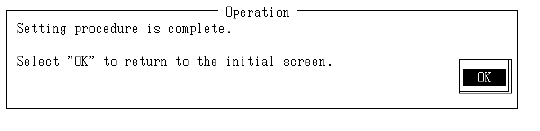

Setting is completed.
Select "OK" to return to default operation screen.
