4.12.3 HMS Offset
Select "2/Offset set-up" then "4/Head", "3/HMS Offset" and the HMS offset dialog will appear as
follows.
(1) Setting Items
No. Item Contents
1 Assembling Position Offset value from HMS assembling position (OCC std)
2 Assembling Height Offset value from HSM setting position
(2) Method of Setting
– Enter values directly with the keyboard or follow the internal operating instructions for
automatic input.
– Select HOD device key to enter teaching.
– Operating method of automatic input
Follow instructions to operate and values will automatically acquire.
Once completed, select "OK".
When "OK" is selected, HMS moves to above CAL block No. 1 mark.
2-50
– Contents of Measurement
(1) Based on the difference of height acquired from HMS, the center position of the CAL
block No. 1 block is measured.
(2) Calculation is carried out from the difference of the No. 1 mark center position in (1) and
the known CAL block No. 1 mark and modification made.
(3) Based on the CAL block surface height acquired from HMS, fixing height is calculated
and modification made.
Setting is completed.
Select "OK" to return to default operation screen.
2-51
4.13 VCS Offset
4.13.1 VCS Camera Focus Offset

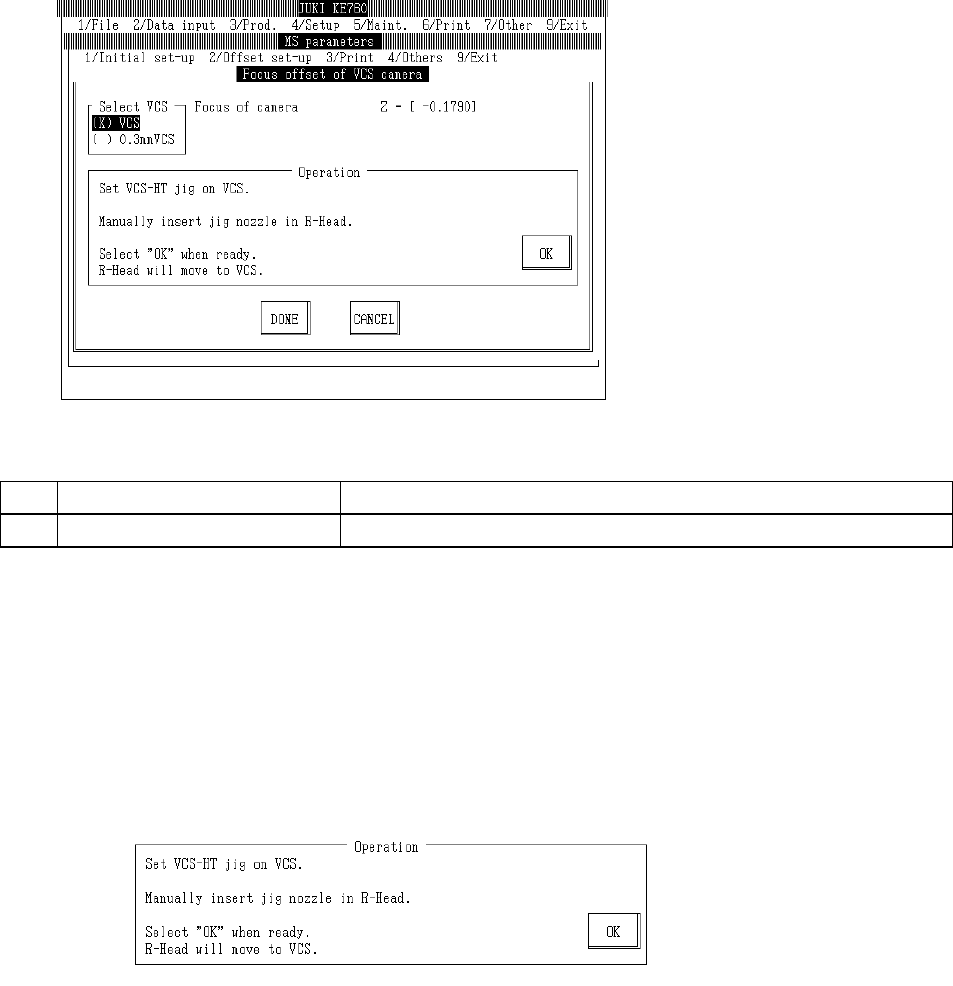

Select "2/Offset set-up" then "5/VCS", "1/Focus offset of VCS camera" and the VCS camera focus
offset setting dialog will appear as follows.
(0.3 VCS only)
(1) Setting Items
No. Item Contents
1 Camera Focus Offset from VCS camera focus setting value
(2) Method of Setting
– Select VCS unit with the tuning button and enter values directly with the keyboard or follow
the internal operating instructions for automatic input.
– Select HOD device key to enter teaching.
– Use control menu to move head if in the way.
– Operating method of automatic input
Follow instructions to operate and values will automatically acquire.
(0.3 VCS only)
Set VCS-HT jig in VCS.
When setting 0.3mm VCS, set a 0.3mm adaptor in VCS-HT jig.
Set jig nozzle in LAIC head.
Once completed, select "OK".
When "OK" is selected, LAIC head suction places jig nozzle over VCS-HT jig for a standard
setting and 0.3mm over adapter for a 0.3mm VCS setting.
