Adjust monitor cross cursor with teaching so that mark is nearly centered and press HOD Enter key. Once completed, select "OK". Selecting "OK" measures offset. When measurement is completed, assembli …

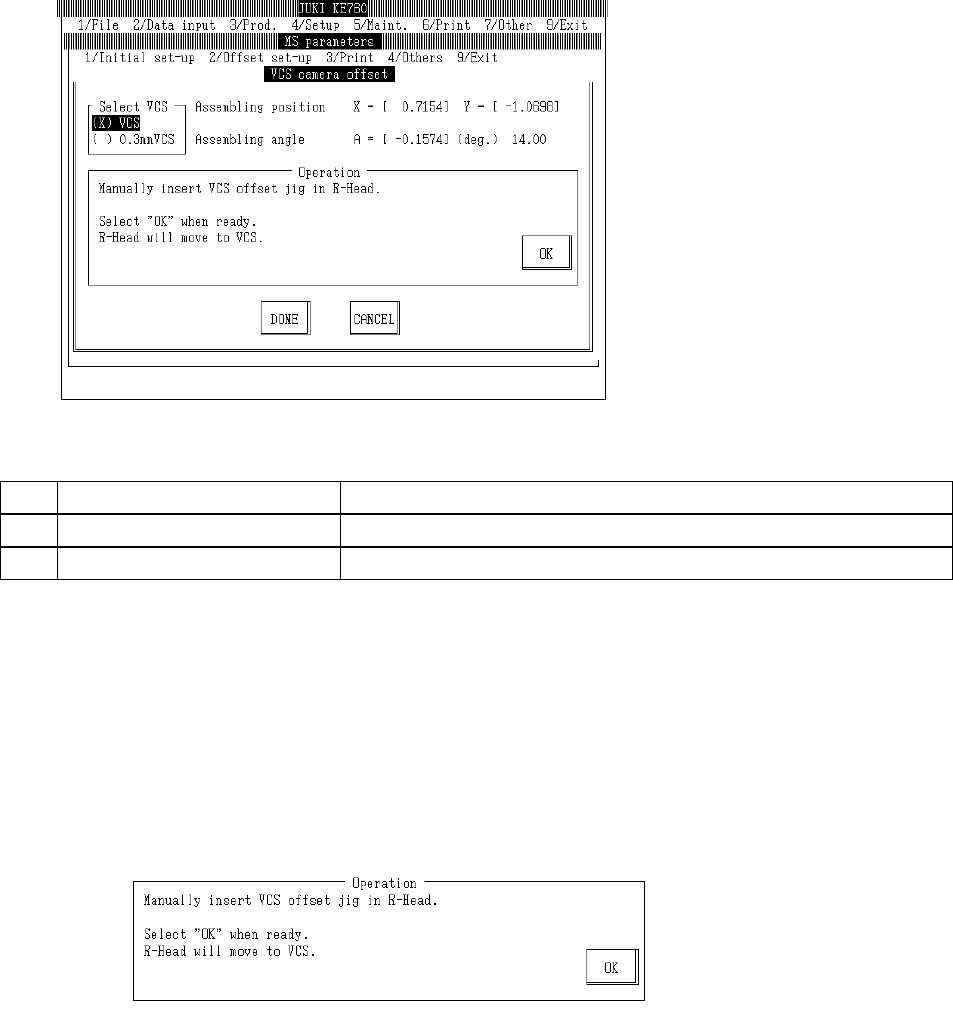

4.13.3 VCS Camera Offset
Select "2/Offset set-up" then "5/VCS", "3/VCS Camera Offset" and the VCS camera offset setting
dialog will appear as follows.
(1) Setting Items
No. Item Contents
1 Assembling position Offset value from VCS camera setting position
2 Assembling angle Assembling angle of camera (in reference to main body) (° )
(2) Method of Setting
– Select VCS unit with the tuning button and enter values directly with the keyboard or follow
the internal operating instructions for automatic input.
– Select HOD device key to enter teaching.
– Use control menu to move head if in the way.
– Operating method of automatic input
Follow instructions to operate and values will automatically acquire.
Set VCS-HT jig in LAIC head.
Once completed, select "OK".
When "OK" is selected, AIC head moves to recognition position.
2-57

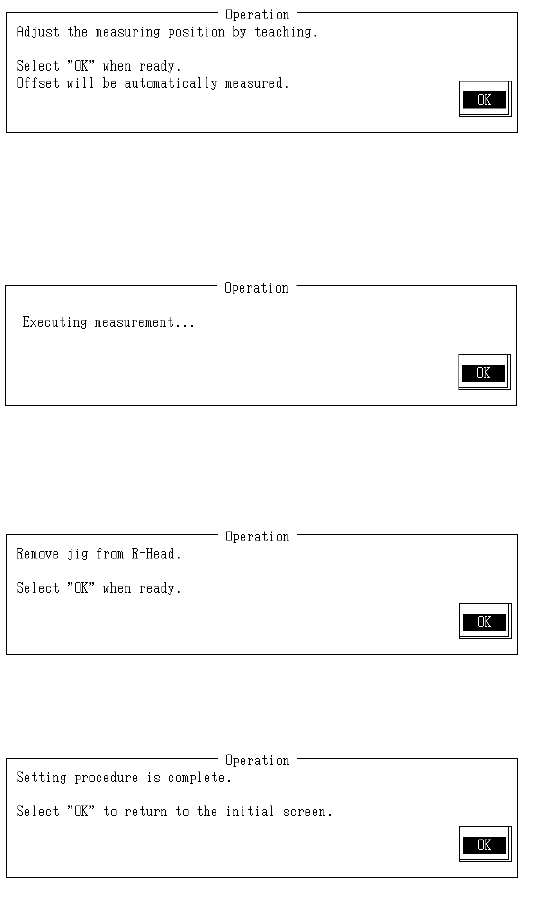

Adjust monitor cross cursor with teaching so that mark is nearly centered and press HOD Enter
key.
Once completed, select "OK".
Selecting "OK" measures offset.
When measurement is completed, assembling angle and assembling position are calculated
from the measurement result and modifications made.
From the obtained offset, move mark to VCS center.
Remove VCS offset jig from LAIC head.
Once completed, select "OK".
Setting is completed.
Select "OK" to return to default operation screen.
2-58

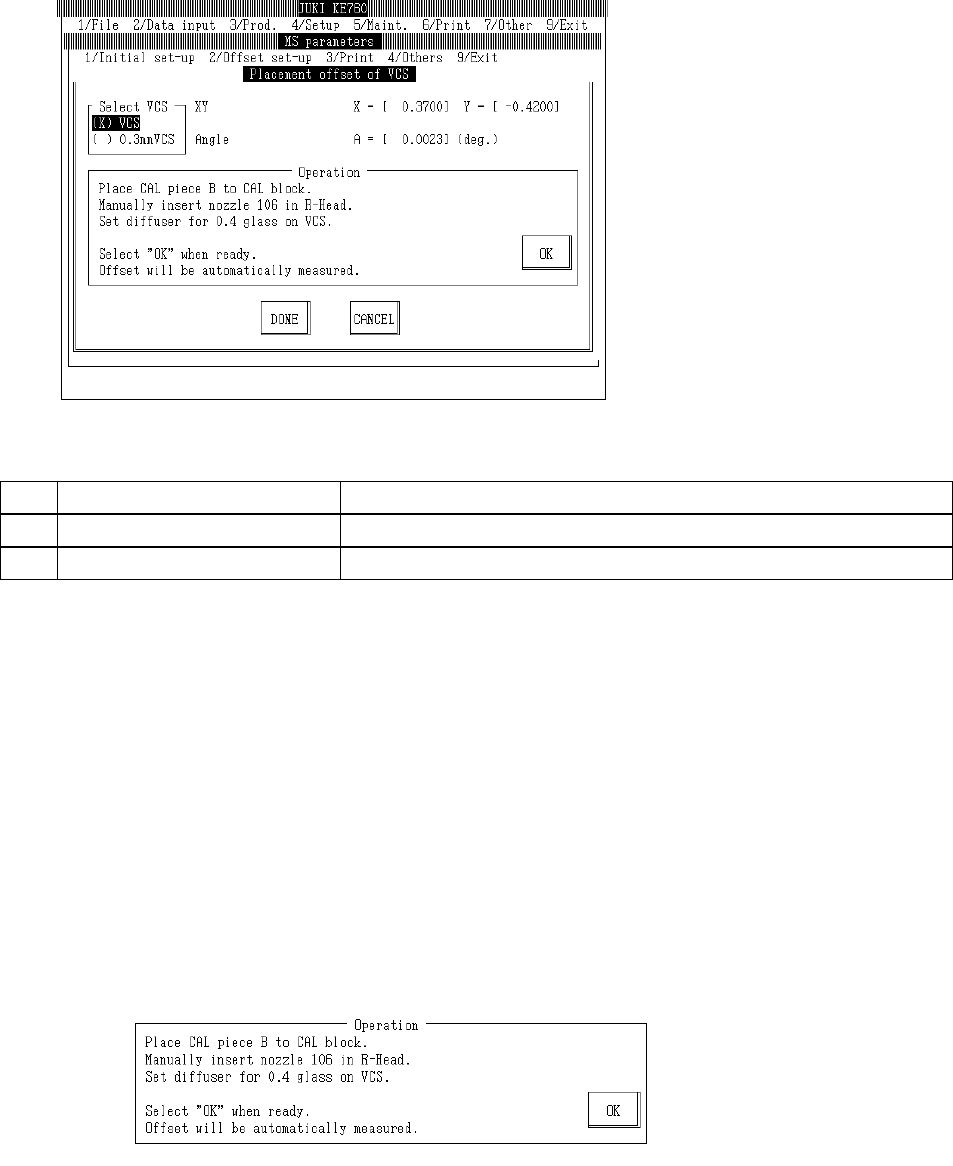

4.13.4 VCS Mounting General Offset
Select "2/Offset set-up" then "5/VCS", "7/Placement offset of VCS" and the VCS mounting general
offset setting dialog will appear as follows.
(1) Setting Items
No. Item Contents
1 XY VCS XY general offset value of mounting component
2 Angle VCS angle general offset value of mounting component (° )
(2) Method of Setting
– Select VCS with the tuning button and enter values directly with the keyboard or follow the
internal operating instructions for automatic input.
– Select HOD device key to enter teaching.
– Use control menu to move head if in the way.
– Accessory functions
F7 key: Verifies that current VCS mounting general offset is 0 .
F8 key: Verifies that current VCS mounting general offset is 180 .
– Operating method of automatic input
Follow instructions to operate and values will automatically acquire.
(Standard VCS)
2-59
