Status Report (When byte on) Byte Content 7 Small interpolation loss from single lead 6 Initializing (L3 inte rnal initialization) 5 Calculating 4 Acquiring 3 Data available 2 Status error 1 Sensor initializing 0 Stand-b…

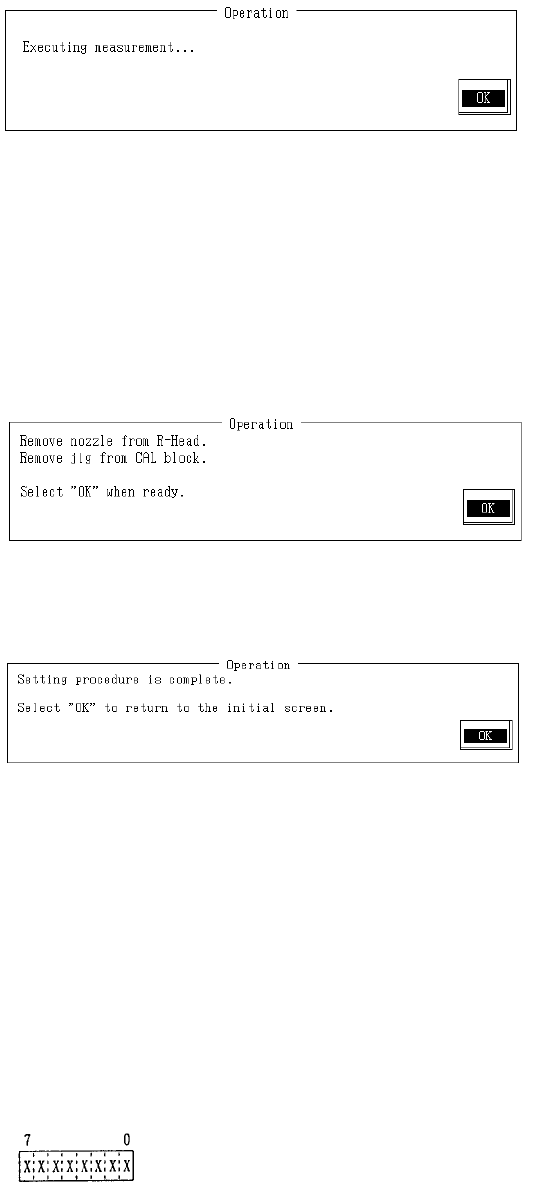

Once completed, select "OK".
When "OK" is selected, L3 is scanned in the X direction and offset in that direction is measured.
When L3 jig measurement is completed, the X offset of the focus position is calculated from the
measurement results and modification made.
– Contents of Measurement
(1) Measurement is taken in the X direction while the L3 jig is being displaced.
(2) From the measured results, X offset for the focus position are calculated and modified.
– Carry out measurement 5 times or more to improve accuracy of the focus position Z
parameter. Do not use teaching from the second time on.
Remove #203 nozzle from LAIC head.
Remove L3 jig from CAL block .
When completed, select "OK".
Setting is completed.
Selecting "OK" returns to default operating menu.
(3) Details of L3 Status
When L3 makes a mistake in part recognition, "Error" is displayed.
Message
"E004054 L3 has made a recognition error.
Status: ?? Error code: ??"
Status (8 byte)
2-66
Status Report (When byte on)
Byte Content
7 Small interpolation loss from single lead
6 Initializing (L3 internal initialization)
5 Calculating
4 Acquiring
3 Data available
2 Status error
1 Sensor initializing
0 Stand-by (can receive commands)
Example:
Stand-by
Status: 01 Error code: XX
Data available & stand-by
Status: 09 Error code: XX
Error: Insufficient data
Status: 05 Error code: 02
2-67
Overview of Error Codes (1/2)
Error Code Meaning Cause How to Restore
0x00 Comment
0x01 Sequence error Error in command transmission
sequence
Use correct command sequence
0x02 Insufficient data Required data missing Use correct data
0x03 Parameter error Received invalid command Use correct parameter values
0x04 Improper command Improper command Use correct command
0x05 Incorrect Data Data exceeds limits Check system setup
0x06 Nonconforming
Template
Parts template and lead numbers not
aligned
Check if all leads are running through
focus
0x07 Function Invalid Command sent is invalid in system Use command valid for system
0x08 Insufficient Template
Memory
Capacity of template library exceeded Shrink template size in library
0x09 Incorrect String Non-numeric parameters sent with
command
Only transmit numeric commands
0x10 UART Receive Overrun
Error
0x11 UART Parity Error
0x12 UART Framing Error
0x20 Sensor 0 EEPROM
Read Error
Transmission trouble with L3 sensor 0 Check cable connecting L3 PWB and
L3 sensor 0. Reset software
0x21 Sensor 1 EEPROM
Read Error
Transmission trouble with L3 sensor 1 Check cable connecting L3 PWB and
L3 sensor 1. Reset software
0x22 Sensor 0 Simultaneous
Error
Transmission trouble with L3 sensor 0 Check cable connecting L3 PWB and
L3 sensor 0. Reset software
0x23 Sensor 1 Simultaneous
Error
Transmission trouble with L3 sensor 1 Check cable connecting L3 PWB and
L3 sensor 1. Reset software
0x40 Beam Obstruction Error Unnatural position of entering beam Check that beam is not obstructed.
Try resetting software.
0x41 Beam Entry Error Unnatural obstruction of entering
beam
Check that beam is not obstructed.
Try resetting software.
0x42 Sensor DAC Error Beam to photodictor excessive or
laser threshold judged unusually high
due to hardware malfunction
Contact CyberOptics Co.
0x43 NPX Error Control hardware malfunction Contact CyberOptics Co.
Note: Contents of error code are only valid when status error byte (byte 2) is "1". An error byte
setting of "0" carries no meaning.
