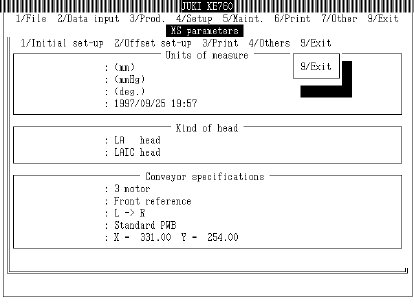

4. 22 Exit Select "9/Exit" then "9/Exit" to exit MS parameters. For details, refer to the section on saving data. 2-85
(2) Points of Caution
– Make a copy of the VCS program data file in the system directory (C:ｴ KE740 for KE-740).
– Definitely do not use imaging equipment versions older than 02-00-01D.
– This function is only valid with 68040 CPU imaging system (Known as: New Imaging
Equipment 97/04 New). If older imaging equipment is used, data will transfer but be read as
an error.
2-84
4. 22 Exit
Select "9/Exit" then "9/Exit" to exit MS parameters.
For details, refer to the section on saving data.
2-85
-4 SPRING WASHER
WS041000
2KN
2 *1/*2/*3/*4
-5 WASHER
WP043080
ISC
2 *1/*2/*3/*4
-6
VCS HEIGHT JIG
STOPPER
X012 1
-7 NUT (M4)
NM604000
ISC
2
11 KE-760 VCS OFFSET JIG Z037 1 VCS OFFSET
*4
12
KE-750•76
0
CAL PIECE A
E3622721
000
1
HEAD ADJUSTMENT
etc.
*3/*4
13 KE-760 CAL PIECE C X002 1 VCS ADJUSTMENT
14 KE-760
VCS JIG PLATE A
ASM.
M131 1
VCS ADJUSTMENT
(FOCUS etc.)
*2/*4
15 KE-760
VCS JIG PLATE B
ASM.
X025 1
VCS ADJUSTMENT
(SCALING)
16 KE-760
BGA JIG PLATE
ASM.
X025 1
VCS ADJUSTMENT
(LIGHT)
17-1 KE-760 BGA SPACER X026 4
VCS ADJUSTMENT
(LIGHT)
-2
FLAT HEAD SCREW
(M3 × 6)
SM103060
ISC
4
18-1 KE-760 0.3mm ADAPTER X013 1
FOR VCS 0.3mm
ADJUSTMENT
For
adjustment
KE-760
optional unit
2-86
