7-2 HMS amp replacement Head tap plate E2502725000 Height sensor cable ass y E95757210A0 SEMS cap scre w SL4041081SC Fig. 3-7-4 1-47

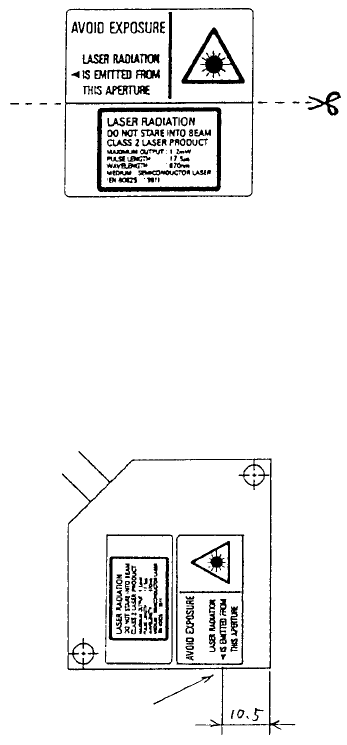

Affixing HMS seal
Cut along dotted line as shown in diagram.
Clean affixing surface with alcohol to remove grease and affix in position shown in diagram. (Align seal
arrow with laser projector.)
Fig. 3-7-2
Laser projecto
r
Fig. 3-7-3
1-46

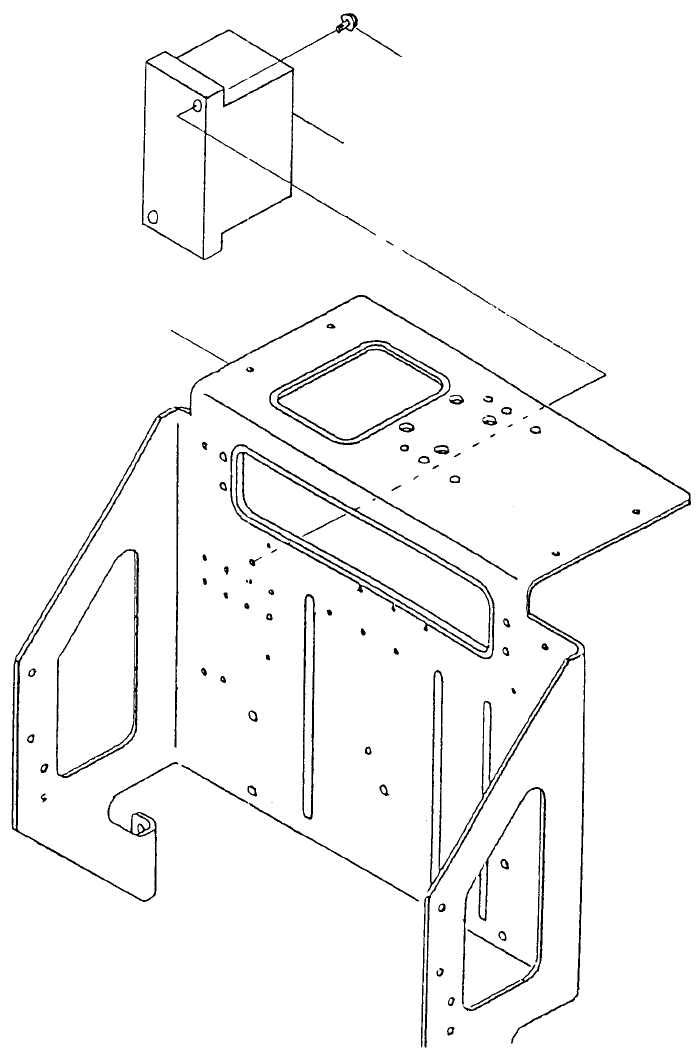

7-2 HMS amp replacement
Head tap plate
E2502725000
Height sensor cable ass
y
E95757210A0
SEMS cap scre
w
SL4041081SC
Fig. 3-7-4
1-47
7.3 HMS height adjustment
Refer to QA Table, HMS, HMS height.
After adjustment enter MS parameters.
For entry, refer to MS parameter operation specifications 4 - 12 - 3 HMS offset.
1-48
