Chapter 1 X-Y Unit

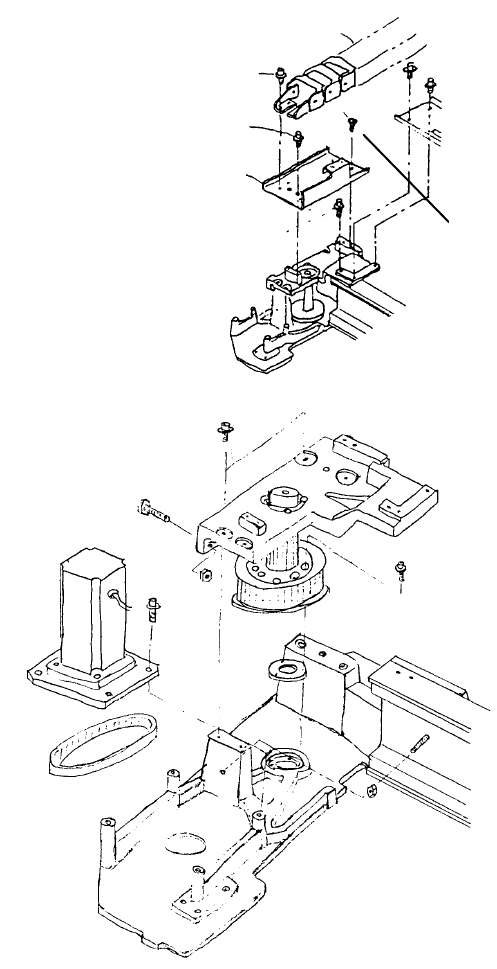

1. Timing Belt Replacement & Tension Adjustment
(1) Timing Belt XA
SM1050801SC
Tightening torque
9Nm Locktite 242
SL6062042TN
Tightening torque
15Nm Locktite 242
XA pulley
bracket assy
E2420725000
XA pulley base
E2431725000
Timing belt XA
Tightening
torque 9Nm
NM605000SC
XM bracket assy
SM9052003SC
SL6062092TN
Tightening torque 15Nm
Locktite 242
E2422725000
CB support A
SL6051042TN
Tightening torque 4Nm
Locktite 242
SL6061492TN
Tightening torque 15Nm
Y-axis cable bearer
– Loosen the 4 screws SL6061492TN
that hold the Y-axis cable bearer.
Pull cable bearer away.
– Loosen 2 each of SL6051042TN
and SM1050801SC that hold CB
support A. Remove CB support A
– Loosen NM6050001SC and
SM8053002TP which holds belt
tension.
– Loosen the 4 screws SL6051492TN
which hold XM bracket and remove
XM bracket assy.
– Remove the 4 screws
SL6062092TN which hold the XA
pulley bracket and the 3 screws
SL6062042TN which hold the XA
pulley base. Remove XA pulley
bracket assy and replace timing belt
XA.
– Reassemble in reverse sequence
and adjust belt tension. Refer to QA
Table, X-Y Unit, XY-1, XY Belt
Tension for Timing Belt XA.
