Coplanarity module 2 Retrofit instructions Coplanarity module - SIPLACE HF series 10/2004 Edition 21 2.3.1 Saf ety instructions for las er unit s Permis sion to oper ate comp onents that are c lassified as lase rs is wit…
2 Retrofit instructions Coplanarity module - SIPLACE HF series Coplanarity module
10/2004 Edition
20
2.3 Safety instructions
WARNING
The safety instructions from the “Operational safety” chapter of the user manual and servicing in-
structions take precedence over these instructions. 2
The SIPLACE placement machines are supplied with mains voltage.
Consequently parts of these systems carry dangerous voltages! This voltage is present at certain
modules inside the machine base, even when the machine is switched off at the main power
switch.
Incorrect handling of the placement machine or touching live parts of the machine can result in
death or severe injury, and considerable damage to equipment.
BEFORE starting any work, shut down the operating system correctly, then switch the machine
OFF at the main power switch and disconnect from the main power supply. In addition, the com-
pressed air supply must be switched off at the compressed air unit's main valve in the machine
base and vented by actuating the needle valve on the compressed air unit.
There is DANGER for heart pacemaker wearers in the vicinity of the linear motors, as described
in detail in the "Special safety instructions for working in the vicinity of strong magnetic fields"
section of the user manual and service manual.
Always follow the accident prevention regulations, DIN or other standards and special safety
rules applicable in your country.
Pay attention to the information concerning residual voltages in the Operational Safety chapter.
Follow the ESD regulations as described in the operational safety section of the operating
instructions.
During the retrofit, always secure the machine to prevent access by other people and to prevent
it being switched on again. The procedure is described in the “Locking the machine…” section of
the user manual.
Working with the SITEST program further increases the risk of accident.
The SITEST program must only be used by authorized and trained personnel.
2
2
2
2
2
Coplanarity module 2 Retrofit instructions Coplanarity module - SIPLACE HF series
10/2004 Edition
21
2.3.1 Safety instructions for laser units
Permission to operate components that are classified as lasers is withdrawn if
– mechanical damage to the unit is observed, or
– any work is done on the mechanical or electrical parts of the unit.
Even damaged or missing screw locking paint on laser components (e.g. cover plates, fas-
teners, adjusting potentiometer) counts as work.
– Only SIEMENS service engineers, or the machine owner's service engineers who have
been trained by SIEMENS are allowed to replace laser components.
– Repairs to laser units are carried out at the SIEMENS factory exclusively.
2
2.3.2 Definitions
2
PLEASE NOTE 2
2
2
2
Caution 2
2 Retrofit instructions Coplanarity module - SIPLACE HF series Coplanarity module
10/2004 Edition
22
2.4 Preparatory work
: Switch the placement machine off at the main switch.
: Dock out the component tables on the relevant side of the machine.
: Remove the side wall cover on location 4.
: Remove the computer unit.
2.5 Retrofit
: Remove the reject bin from the relevant side of the machine.
: On older machines:
Remove the mount for the reject bin together with the sensor (M5 hexagon, size 1 slotted).
2
Note the installation position of the sensor. 2
2
2
2
2
2
2

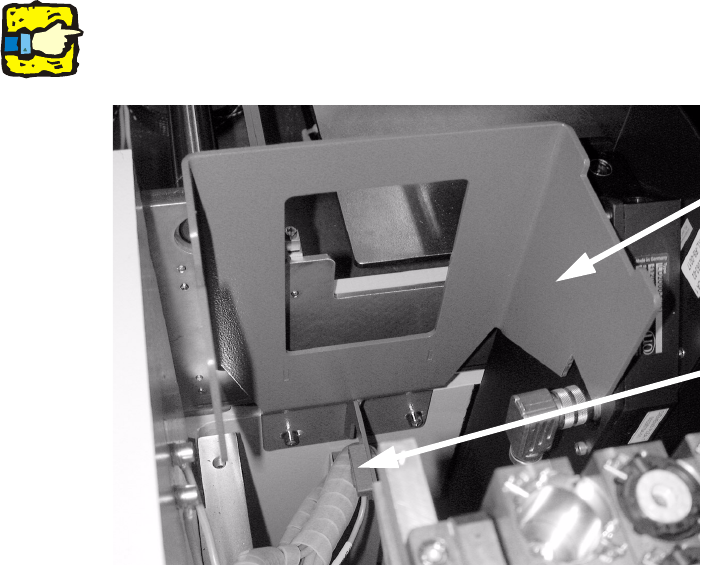

Mount for
reject bin
Sensor
