MODEL TCM-3200J 0102-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 115 5-4 1 630 057 9246 S T A Y 1 759L--01B-01 1 6 630 052 1948 S T A Y 1 759L--01B-010 7 630 004 2108 SENSOR,PELEC 1 PHS42 7 5 9L--01H-046 8 4 11…
MODEL TCM-3200J
0102-001
114
部品供給部 FEEDER CARRIAGE SECTION
Fig. 5-4 テープエンド検出部 Tape End Detector
1
6
7
8
9
10
10
11
11
12
12
13
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
115
5-4
1 630 057 9246 STAY 1 759L--01B-011
6 630 052 1948 STAY 1 759L--01B-010
7 630 004 2108 SENSOR,PELEC 1 PHS42 759L--01H-046
8 411 141 4107 WASHER V 5X10X1 2 FW5
9 411 141 6705 WASHER SPR 5 2 SW5
10 630 000 7756 BOLT,HEX-SCT 2 M5X12
11 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
12 411 141 3001 WASHER SPR 6 2 SW6
13 630 000 7978 BOLT,HEX-SCT 2 M6X60
MODEL TCM-3200J
0102-001
116
部品供給部 FEEDER CARRIAGE SECTION

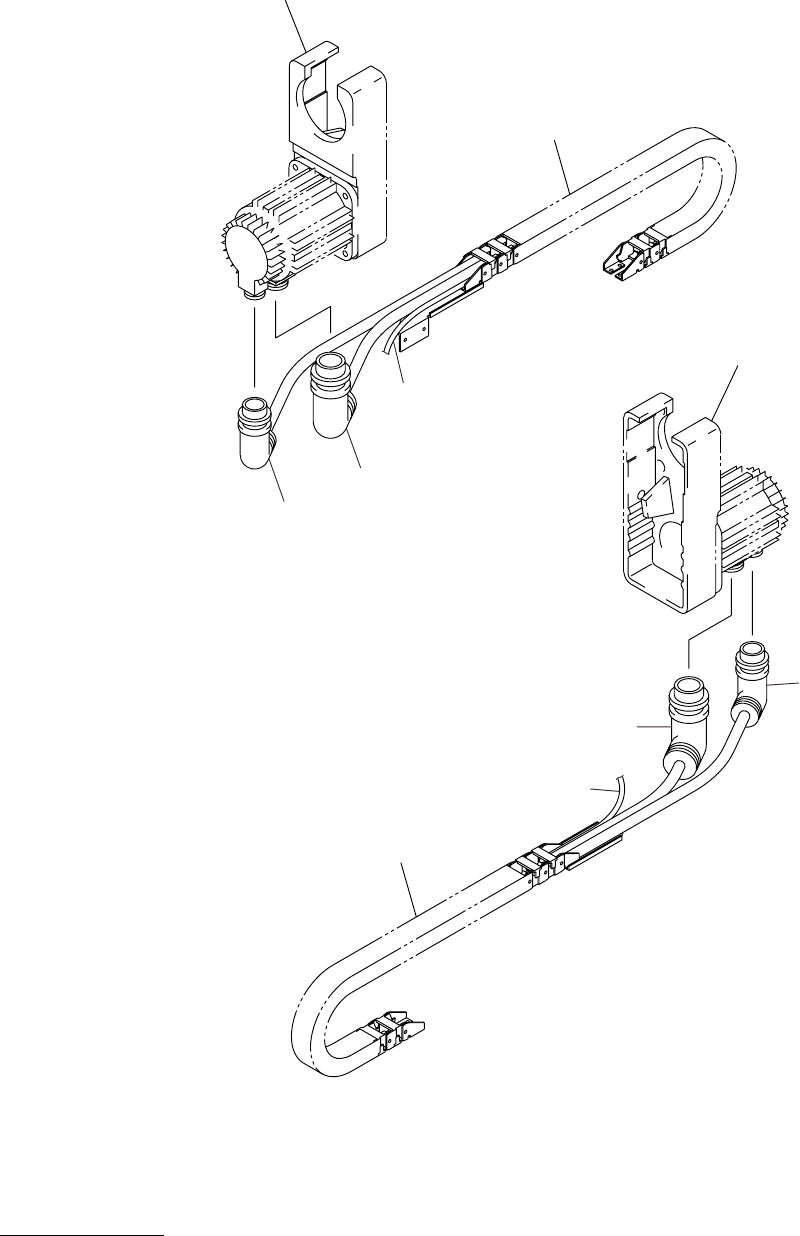

Fig. 5-5 ケーブル Cable
122
122
121
123
123
See Fig.5-3
See Fig.5-3
Key No.99
Key No.99
See Fig.5-3
See Fig.5-3
Key No.1-1
Key No.1-1
132
132
131
133
See Fig.5-3
See Fig.5-3
Key No.1-2
Key No.1-2
See Fig.5-3
See Fig.5-3
Key No.99
Key No.99
