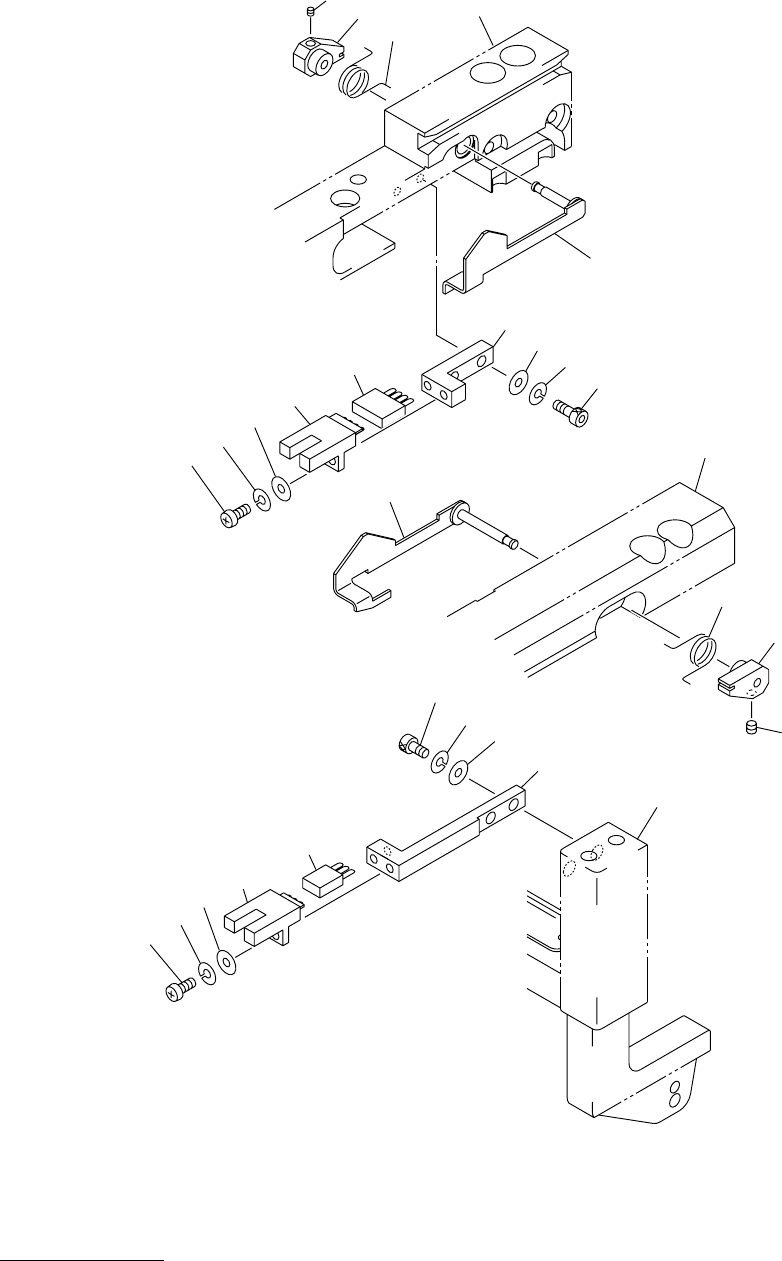

MODEL TCM-3200J 0102-001 134 XY テーブル部 XY TABLE SECTION Fig. 6-5 基板検出レバー P.C.B. Detector Lever 10 10 5 1 4 2 3 11 12 12 21 21 24 23 25 25 30 31 32 32 26-1 26-1 26 27 29 28 22 6 6-1 6-1 9 8 7 See Fig.6-4 See Fig.6-4 Key No…
MEMO
MODEL TCM-3200J
0102-001
134
XY テーブル部 XY TABLE SECTION
Fig. 6-5 基板検出レバー P.C.B. Detector Lever
10
10
5
1
4
2
3
11
12
12
21
21
24
23
25
25
30
31
32
32
26-1
26-1
26
27
29
28
22
6
6-1
6-1
9
8
7
See Fig.6-4
See Fig.6-4
Key No.41
Key No.41
See Fig.6-4
See Fig.6-4
Key No.21
Key No.21
See Fig.6-4
See Fig.6-4
Key No.1
Key No.1
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
135
6-5
1 630 054 4398 PLATE 1 759J--01B-114
2 630 054 8938 SPRING,TORSION 1 759J--01B-116
3 630 054 8914 PLATE 1 759J--01B-118
4 630 000 8883 SET SCREW 1 M3X4 SET
5 630 054 4343 PLATE 1 759J--01B-120
6 630 004 1798 SENSOR,PHOTO 1 PHS56 759J--01H-103
6 -1 630 000 0269 SENSOR,PHOTO(CONNECTOR) 1 759J--01H-021
7 411 088 9005 WASHER F 3X6X0.5 2 FWS3 F
8 411 086 4408 WASHER SPR 3 2 SW3 F
9 411 042 0703 SCR PAN 3X8 2 M3X8 PAN
10 411 141 3902 WASHER V 3X7X0.5 2 FW3
11 411 141 2806 WASHER SPR 3 2 SW3
12 630 000 7527 BOLT,HEX-SCT 2 M3X10
21 630 054 4336 PLATE 1 759J--01B-113
22 630 054 4329 SPRING,TORSION 1 759J--01B-115
23 630 054 4312 PLATE 1 759J--01B-117
24 630 000 8883 SET SCREW 1 M3X4 SET
25 630 063 1425 PLATE 1 759J--01B-119
26 630 004 1798 SENSOR,PHOTO 1 PHS55 759J--01H-103
26 -1 630 000 0269 SENSOR,PHOTO(CONNECTOR) 1 759J--01H-021
27 411 088 9005 WASHER F 3X6X0.5 2 FWS3 F
28 411 086 4408 WASHER SPR 3 2 SW3 F
29 411 040 6202 SCR PAN 3X10 2 M3X10 PAN
30 411 141 3902 WASHER V 3X7X0.5 2 FW3
31 411 141 2806 WASHER SPR 3 2 SW3
32 630 000 7527 BOLT,HEX-SCT 2 M3X10
