MODEL TCM-3200J 0102-001 152 L コンベア部 L CONVEYOR SECTION Fig. 7-4 基板検出部、基板ストッパ P.C.B. Detector, P.C.B. Stopper 8 7 6 3 4 5 2 1-3 1-3 9-3 9-3 9-2 9-2 9-1 9-1 8 7 6 1 4 5 19 15 16 16 11 12 12 12 13 13-1 13-1 17 18 3 2 1-1 1…
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
151
7-3
1 630 028 9493 GEAR 2 759G--01H-006
2 630 000 8951 SET SCREW 4 M5X8 SET
3 630 091 4849 SHAFT 1 759G--01B-009
4 630 028 9480 GEAR 2 759G--01H-007
5 630 008 2296 SET SCREW 4 M4X4 SET
6 630 001 1890 BEARING,UNIT 3 759G--01H-005
6 -1 630 057 7297 COLLAR 3 759G--01B-036
7 411 141 4107 WASHER V 5X10X1 6 FW5
8 411 141 6705 WASHER SPR 5 6 SW5
9 630 000 7800 BOLT,HEX-SCT 6 M5X35
13 630 057 7303 COVER 1 759G--01B-018
14 411 051 1708 SCR TRS 4X6 3 M4X6 TRS
16 630 091 4764 PULLEY,TIMING 1 759G--01H-043
17 630 000 8951 SET SCREW 2 M5X8 SET
20 630 056 2767 BRACKET(MOTOR L) 1 759G--01B-051
21 411 141 4107 WASHER V 5X10X1 2 FW5
22 411 141 6705 WASHER SPR 5 2 SW5
23 630 000 7749 BOLT,HEX-SCT 2 M5X10
24 630 009 5869 MOTOR,STEPPING 1 PM101(CVW1), #103-8572-7041
759G--01H-041
25 411 141 4107 WASHER V 5X10X1 2 FW5
26 411 141 6705 WASHER SPR 5 2 SW5
27 630 000 7763 BOLT,HEX-SCT 1 M5X16
27 -1 630 000 7787 BOLT,HEX-SCT 1 M5X25
28 630 001 0220 WASHER 1 759G--01H-027
29 411 141 6705 WASHER SPR 5 1 SW5
30 411 141 0505 NUT HEX 5 1 M5
33 630 056 3917 PULLEY,TIMING 1 759G--01H-042
34 630 000 8951 SET SCREW 2 M5X8 SET
35 630 048 9668 BELT,TIMING 1 759G--01H-044
36 630 091 4962 COVER(L) 1 759G--01B-052
37 411 051 1708 SCR TRS 4X6 3 M4X6 TRS
38 630 091 4979 BOSS(HANDLE) 1 759G--01B-055
39 630 000 7558 BOLT,HEX-SCT 2 M3X16
50 630 082 6098 NAME PLATE,PARTS 1 759G--01B-056
MODEL TCM-3200J
0102-001
152
L コンベア部 L CONVEYOR SECTION

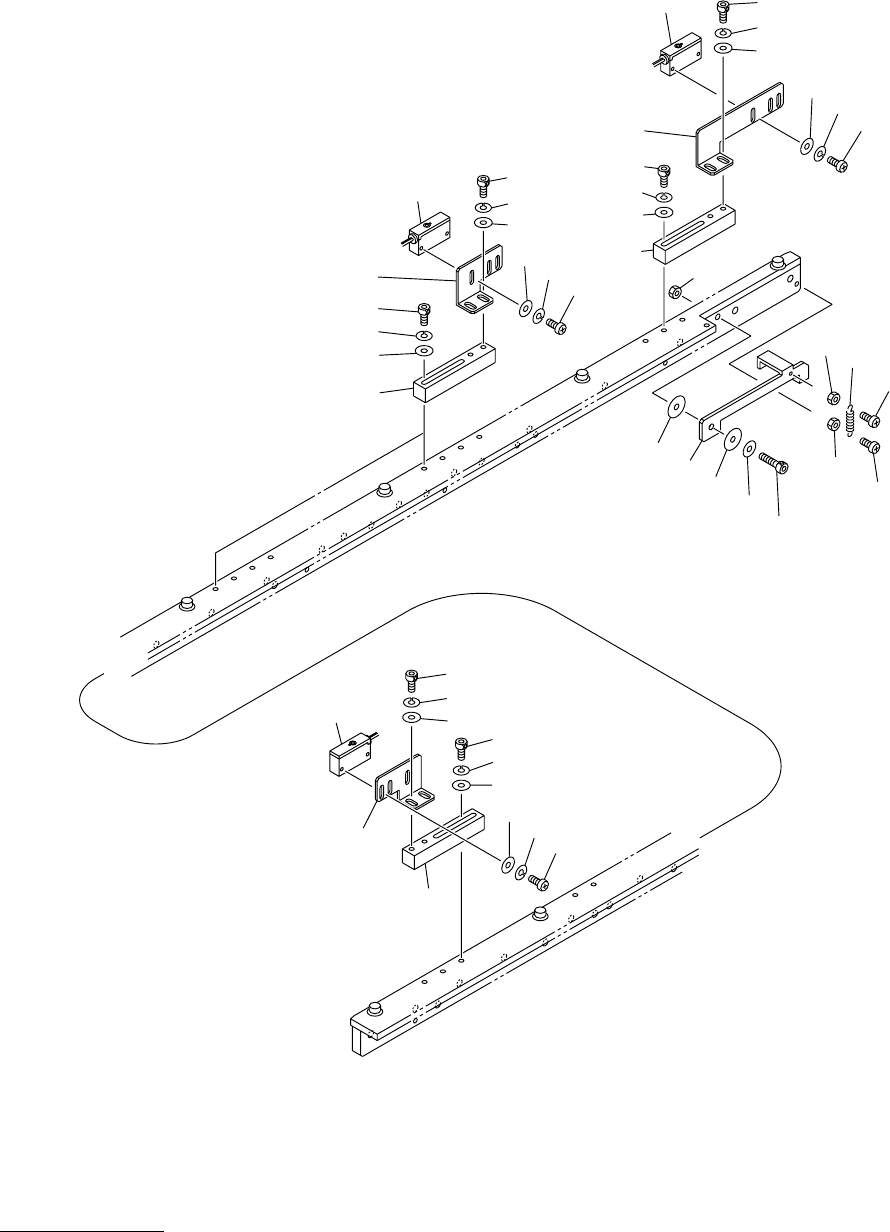

Fig. 7-4 基板検出部、基板ストッパ P.C.B. Detector, P.C.B. Stopper
8
7
6
3
4
5
2
1-3
1-3
9-3
9-3
9-2
9-2
9-1
9-1
8
7
6
1
4
5
19
15
16
16
11
12
12
12
13
13-1
13-1
17
18
3
2
1-1
1-1
9-3
9-3
9-2
9-2
9-1
9-1
9-3
9-3
9-2
9-2
9-1
9-1
8
7
6
2
1-2
1-2
1
3
4
5
1
14
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
153
7-4
1 630 056 1500 PLATE 4 759G--01B-033
1 -1 630 059 2412 BRACKET(PHOTO R) 2 759G--01B-016
1 -2 630 059 2405 BRACKET(PHOTO L) 1 759G--01B-039
1 -3 630 058 8705 BRACKET(PHOTO R) 1 759G--01B-040
2 630 045 6608 SENSOR,PELEC 4 PHS57,PHS58,PHS122,PHS125
759G--01H-026
3 411 119 1909 WASHER V 3X7X0.5 8 FW3 F
4 411 086 4408 WASHER SPR 3 8 SW3 F
5 411 040 7803 SCR PAN 3X12 8 M3X12 PAN
6 411 141 4008 WASHER V 4X9X0.8 8 FW4
7 411 141 2905 WASHER SPR 4 8 SW4
8 630 000 7619 BOLT,HEX-SCT 8 M4X8
9 -1 411 141 4008 WASHER V 4X9X0.8 8 FW4
9 -2 411 141 2905 WASHER SPR 4 8 SW4
9 -3 630 000 7664 BOLT,HEX-SCT 8 M4X20
11 630 057 7365 LEVER 1 759G--01B-015
12 630 001 0220 WASHER 2 759G--01H-027
13 630 000 7787 BOLT,HEX-SCT 1 M5X25
13 -1 411 141 4107 WASHER V 5X10X1 1 FW5
14 411 141 0604 NUT HEX 5 1 M5-3
15 411 054 6809 NUT HEX 3 1 M3 F
16 411 040 6202 SCR PAN 3X10 1 M3X10 PAN
17 411 054 8506 NUT HEX 4 1 M4 F
18 411 162 1505 SCR PAN 4X20 1 M4X20 PAN
19 630 001 8103 SPRING,TENSION 1 759G--01H-028
