MODEL TCM-3200J 0102-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 155 8-1 1 630 049 6123 S T A Y 2 759H--01B-002 2 630 091 4887 BASE(CONVEYOR R) 1 759H--01B-001 3 630 053 0629 P L A TE 1 759H--01B-004 4 4 11 1 4…
MODEL TCM-3200J
0102-001
154

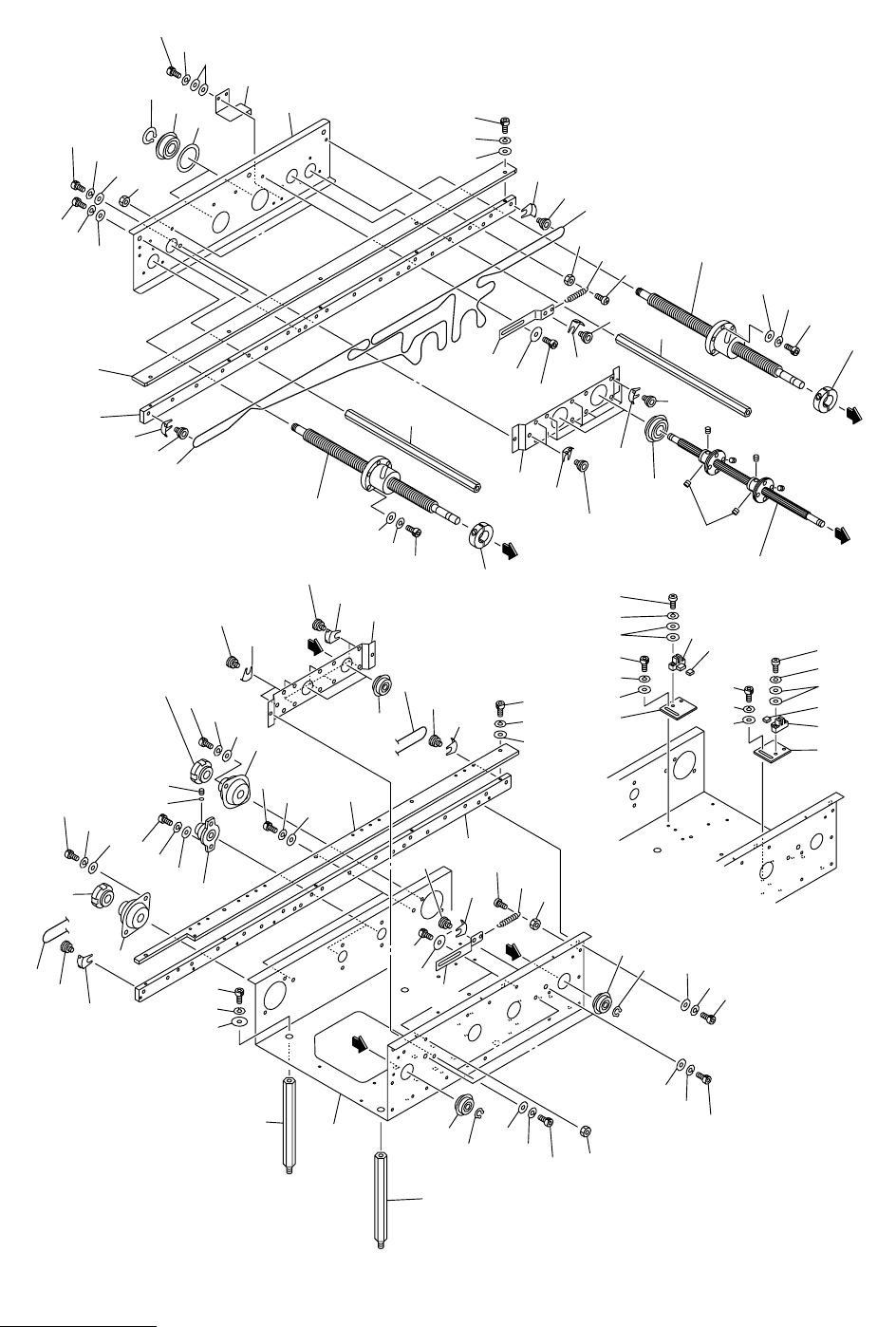

R コンベア部 R CONVEYOR SECTION
Fig. 8-1 コンベア Conveyor
Fig.8-1
TCM-3200J
60
59
58
57
57
53-3
53-3
53
55
46
46
48
47
42
43
43
44
53
53
53
10
18
21
19
53-3
53-3
53-3
8-1
8-1
28
28
27
27
29
30
96
96
B
47
47
48
46
53-3
53-3
53
53
44
44
43
43
42
A
31
32
56
7
8
53
53
55
55
53
3
53-3
53-3
53
53
53-2
53-2
53-3
53-3
38
38
A
C
B
C
69
69
68
67
67
66
66
20
18
18
17
17
9
45
45
13
13
12
11
16
16
15
15
14
14
53-3
53-3
53
54
54
29
29
28
30
96
96
27
38
41
40
39
39
36
37
37
26
26-1
26-1
35
35
34
33
25
25
24
23
23
22
60
76
75
74
79
78
76
75
74
73
72
71
77
71
79
79
78
78
77
77
72
73
59
58
93
93
92
92
91
91
31
31
32
39
40
40
41
41
4
5
6
14
14
15
15
16
16
1
1
2
45
36
36
35
35
34
34
37
33
33
54
53
53
53-3
53-3
53-1
53-1
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
155
8-1
1 630 049 6123 STAY 2 759H--01B-002
2 630 091 4887 BASE(CONVEYOR R) 1 759H--01B-001
3 630 053 0629 PLATE 1 759H--01B-004
4 411 141 4107 WASHER V 5X10X1 2 FW5
5 411 141 6705 WASHER SPR 5 2 SW5
6 630 000 7749 BOLT,HEX-SCT 2 M5X10
7 630 001 1548 BEARING,RADIAL 2 759H--01H-022
8 630 091 4900 PLATE(OKU) 1 759H--01B-011
8 -1 630 091 4917 PLATE(MAE) 1 759H--01B-012
9 630 053 0599 PLATE,LOCATE(L) 1 759H--01B-003
10 630 053 0612 PLATE,LOCATE 1 759H--01B-006
11 411 141 4107 WASHER V 5X10X1 2 FW5
12 411 141 6705 WASHER SPR 5 2 SW5
13 630 000 7749 BOLT,HEX-SCT 2 M5X10
14 411 141 4305 WASHER V 6X12.5X1.6 6 FW6
15 411 141 3001 WASHER SPR 6 6 SW6
16 630 000 7886 BOLT,HEX-SCT 6 M6X16
17 630 030 5913 COLLAR 2 759H--01B-007
18 630 001 1531 BEARING,RADIAL 4 759H--01H-021
19 630 053 3095 GUIDE,SLIDE 2 759H--01H-024
20 411 000 7805 RING C 20 2 759H--01H-023
21 630 000 8890 SET SCREW 6 M3X6 SET
22 630 008 5303 BEARING,UNIT 2 759H--01H-020
23 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
24 411 141 3001 WASHER SPR 6 4 SW6
25 630 000 7886 BOLT,HEX-SCT 4 M6X16
26 630 000 8920 SET SCREW 2 M4X6 SET
26 -1 630 053 5419 COLLAR 2 759H--01B-025
27 630 057 8485 BALL SCREW 2 759H--01H-010
28 411 141 4008 WASHER V 4X9X0.8 6 FW4
29 411 141 2905 WASHER SPR 4 6 SW4
30 630 000 7657 BOLT,HEX-SCT 6 M4X16
31 630 001 1432 BEARING,RADIAL 2 759H--01H-009
32 411 000 7300 RING C 12 2 759H--01H-004
33 630 031 0566 BEARING,UNIT 2 759H--01H-012
34 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
35 411 141 3001 WASHER SPR 6 4 SW6
36 630 000 7879 BOLT,HEX-SCT 4 M6X12
37 630 031 0573 NUT 2 759H--01H-013
38 630 030 5760 STAY 2 759H--01B-008
39 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
40 411 141 3001 WASHER SPR 6 4 SW6
41 630 000 7886 BOLT,HEX-SCT 4 M6X16
42 630 053 0636 PLATE 4 759H--01B-005
43 630 001 0220 WASHER 4 759H--01H-027
44 630 000 7763 BOLT,HEX-SCT 4 M5X16
45 411 141 0505 NUT HEX 5 4 M5
46 411 118 8503 NUT HEX 5 4 M5 F
47 411 140 6508 SCR PAN 5X20 4 M5X20 PAN
48 630 002 9697 SPRING,TENSION 4 759H--01H-003
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
156
8-1
53 630 031 0399 BEARING,RADIAL 60 759H--01H-001
53 -1 630 089 8101 COVER 2 759H--01B-058
53 -2 630 089 8118 COVER 2 759H--01B-059
53 -3 630 089 7845 COVER 32 759H--01B-060
54 630 091 4047 BELT,ROUND 2 759H--01H-002
55 630 091 4054 BELT,ROUND 2 759H--01H-038
56 630 091 4924 GUIDE(OKU) 1 759H--01B-013
57 630 091 4931 GUIDE(MAE) 1 759H--01B-014
58 411 141 4008 WASHER V 4X9X0.8 12 FW4
59 411 141 2905 WASHER SPR 4 12 SW4
60 630 000 7633 BOLT,HEX-SCT 12 M4X12
66 630 056 2743 PLATE(L) 1 759H--01B-053
67 411 141 4008 WASHER V 4X9X0.8 4 FW4
68 411 141 2905 WASHER SPR 4 2 SW4
69 630 000 7602 BOLT,HEX-SCT 2 M4X6
71 630 056 2736 PLATE 2 759H--01B-054
72 630 000 0252 SENSOR,PHOTO 2 PHS116, PHS117 759H--01H-045
73 630 000 0269 SENSOR,PHOTO(CONNECTOR) 2 759H--01H-046
74 411 119 1909 WASHER V 3X7X0.5 8 FW3 F
75 411 086 4408 WASHER SPR 3 4 SW3 F
76 411 040 7803 SCR PAN 3X12 4 M3X12 PAN
77 411 141 4008 WASHER V 4X9X0.8 4 FW4
78 411 141 2905 WASHER SPR 4 4 SW4
79 630 000 7619 BOLT,HEX-SCT 4 M4X8
91 630 001 0237 WASHER 4 759H--01H-025
92 411 141 3001 WASHER SPR 6 4 SW6
93 630 000 7886 BOLT,HEX-SCT 4 M6X16
96 630 035 6618 MECH PARTS (SET COLLARS) 1 759H--01H-047
