P-0227-001 - 第162页

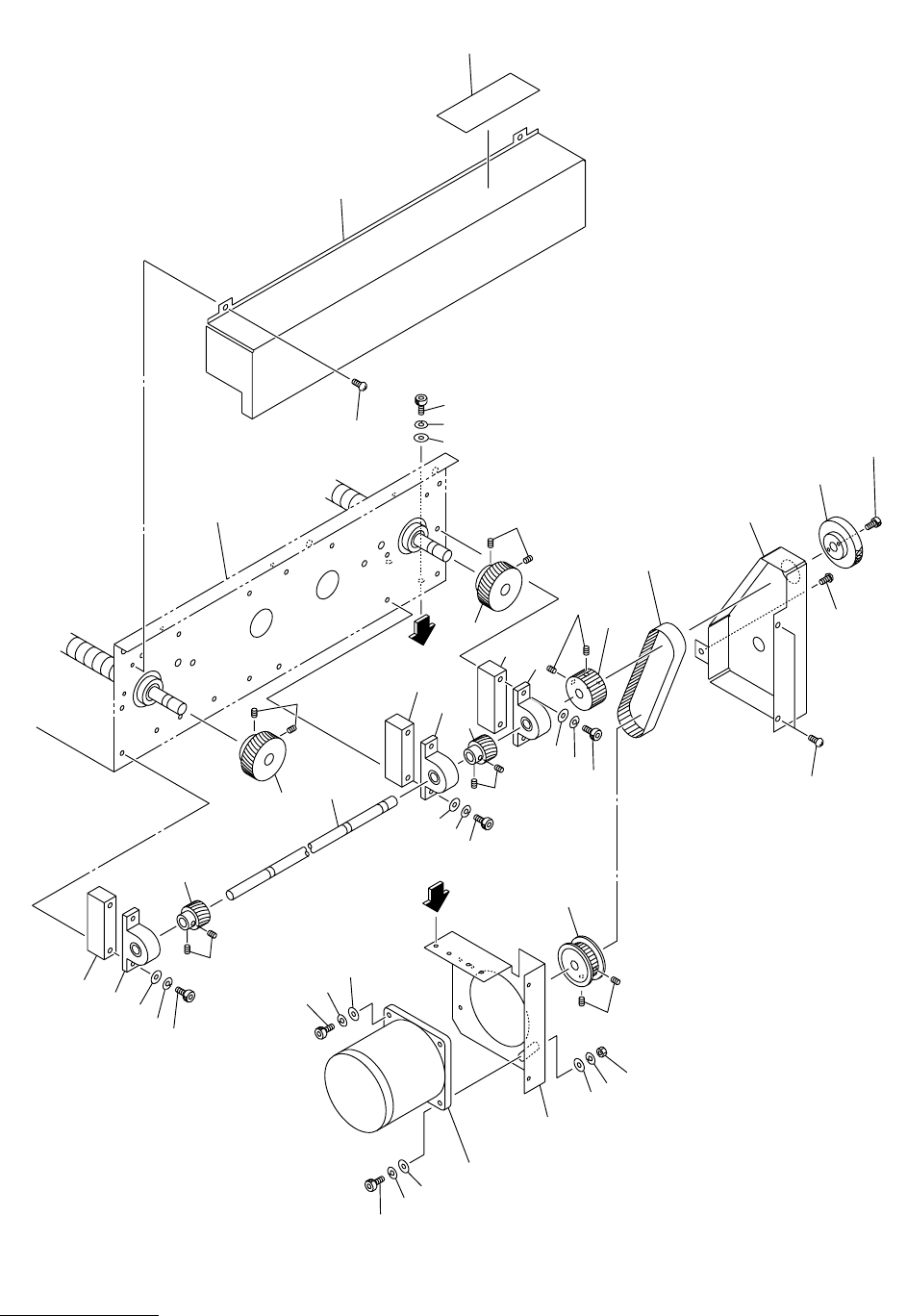

MODEL TCM-3200J 0102-001 160 R コンベア部 R CONVEYOR SECTION Fig. 8-3 ドライブシャフト Driving Shaft 13 50 50 14 A A Fig.8-3 TCM-3200J 7 6 6-1 8 9 2 36 35 35 16 17 37 7 8 9 7 5 4 33 34 30 29 28 25 25 24 24 26 27-1 27-1 25 26 27 27 20…
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
159
8-2
1 630 091 4894 BRACKET(MOTOR) 2 759H--01B-010
2 630 003 2574 GEAR,REDUCTION 2 759H--01H-016
3 630 049 0831 MOTOR,REVERSIBLE 2 M4,M100, 3RK15GN-AUL 100V
759H--01H-015
4 411 141 4107 WASHER V 5X10X1 4 FW5
5 411 141 6705 WASHER SPR 5 4 SW5
6 630 000 7824 BOLT,HEX-SCT 4 M5X45
6 -1 411 087 1109 WASHER IN TW 5 2
7 630 009 2684 PULLEY,TIMING 4 759H--01H-017
8 630 000 8944 SET SCREW 8 M5X6 SET
9 630 091 4078 BELT,TIMING 1 759H--01H-018
9 -1 630 091 4061 BELT,TIMING 1 759H--01H-036
10 411 141 4107 WASHER V 5X10X1 2 FW5
11 411 141 6705 WASHER SPR 5 2 SW5
12 630 000 7749 BOLT,HEX-SCT 2 M5X10
13 630 001 0220 WASHER 2 759H--01H-027
14 411 141 6705 WASHER SPR 5 2 SW5
15 630 000 7756 BOLT,HEX-SCT 2 M5X12
17 630 077 4733 COLLAR 1 759H--01B-057
18 630 077 3200 BEARING,RADIAL 1 759H--01H-048
19 630 077 3217 BEARING,RADIAL 1 759H--01H-049
20 411 141 4107 WASHER V 5X10X1 2 FW5
21 411 141 6705 WASHER SPR 5 2 SW5
22 630 000 7794 BOLT,HEX-SCT 1 M5X30
23 411 118 8503 NUT HEX 5 1 M5 F
MODEL TCM-3200J
0102-001
160
R コンベア部 R CONVEYOR SECTION
Fig. 8-3 ドライブシャフト Driving Shaft
13
50
50
14
A
A
Fig.8-3
TCM-3200J
7
6
6-1
8
9
2
36
35
35
16
17
37
7
8
9
7
5
4
33
34
30
29
28
25
25
24
24
26
27-1
27-1
25
26
27
27
20
20
3
8
9
37
37
38
38
39
39
1
6
6-1
6-1
6
6-1
6-1
2
1
4
5
22
21
23
See Fig.8-1
See Fig.8-1
Key No.2
Key No.2
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
161
8-3
1 630 028 9493 GEAR 2 759H--01H-006
2 630 000 8951 SET SCREW 4 M5X8 SET
3 630 091 4849 SHAFT 1 759H--01B-009
4 630 028 9480 GEAR 2 759H--01H-007
5 630 008 2296 SET SCREW 4 M4X4 SET
6 630 001 1890 BEARING,UNIT 3 759H--01H-005
6 -1 630 057 7297 COLLAR 3 759H--01B-036
7 411 141 4107 WASHER V 5X10X1 6 FW5
8 411 141 6705 WASHER SPR 5 6 SW5
9 630 000 7800 BOLT,HEX-SCT 6 M5X35
13 630 091 4948 COVER 1 759H--01B-018
14 411 051 1708 SCR TRS 4X6 3 M4X6 TRS
16 630 091 4764 PULLEY,TIMING 1 759H--01H-043
17 630 000 8951 SET SCREW 2 M5X8 SET
20 630 056 2774 BRACKET(MOTOR R) 1 759H--01B-051
21 411 141 4107 WASHER V 5X10X1 2 FW5
22 411 141 6705 WASHER SPR 5 2 SW5
23 630 000 7749 BOLT,HEX-SCT 2 M5X10
24 630 009 5869 MOTOR,STEPPING 1 PM102(CVW2), #103-8572-7041
759H--01H-041
25 411 141 4107 WASHER V 5X10X1 2 FW5
26 411 141 6705 WASHER SPR 5 2 SW5
27 630 000 7763 BOLT,HEX-SCT 1 M5X16
27 -1 630 000 7787 BOLT,HEX-SCT 1 M5X25
28 630 001 0220 WASHER 1 759H--01H-027
29 411 141 6705 WASHER SPR 5 1 SW5
30 411 141 0505 NUT HEX 5 1 M5
33 630 056 3917 PULLEY,TIMING 1 759H--01H-042
34 630 000 8951 SET SCREW 2 M5X8 SET
35 630 048 9668 BELT,TIMING 1 759H--01H-044
36 630 091 4993 COVER(R) 1 759H--01B-052
37 411 051 1708 SCR TRS 4X6 3 M4X6 TRS
38 630 091 4979 BOSS(HANDLE) 1 759H--01B-055
39 630 000 7558 BOLT,HEX-SCT 2 M3X16
50 630 082 6128 NAME PLATE,PARTS 1 759H--01B-056
