P-0227-001 - 第182页
MODEL TCM-3200J 0102-001 180 空圧制御部 PNEUMATIC SECTION Fig. 10-3 エア配管 Air Piping 21 21 22 22 23 23 25 25 26 29 29 28 28 27 27 41 41 42 42 22 24 25 1-3 1-3 1-2 1-2 1-4 1-4 1 2 3 4 11 12
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
179
10-2
1 630 092 1274 BASE 1 759L--01B-053
2 630 001 0220 WASHER 3 759L--01H-071
3 411 141 6705 WASHER SPR 5 3 SW5
4 630 000 7763 BOLT,HEX-SCT 3 M5X16
8 630 003 8033 PIPE FITTINGS 1
9 630 008 0285 PIPE FITTINGS 1
10 630 003 7388 PIPE FITTINGS 1
11 630 003 8231 PIPE FITTINGS 2 759L--01H-010
12 630 003 8224 PIPE FITTINGS 7 759L--01H-009
13 630 003 8248 PIPE FITTINGS 2 759L--01H-011
14 630 003 7814 PIPE FITTINGS 3
15 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
16 411 141 3001 WASHER SPR 6 4 SW6
17 630 000 7893 BOLT,HEX-SCT 4 M6X20
18 630 053 4917 MECH PARTS (PADLOCK) 1 759L--01H-092
50 630 055 2515 AIR LINE EQPT 1 (PS1), #A3-208252- 759L--01H-008
51 630 046 7963 PIPE FITTINGS 1
52 630 077 7918 AIR LINE EQPT 1
52 -1 630 062 4526 AIR LINE EQPT 1
53 630 043 8031 AIR LINE EQPT 5
54 630 046 8014 SWITCH,PRESSURE 1 PS1
55 630 054 9546 PIPE FITTINGS 1
56 630 046 8007 AIR LINE EQPT 2
57 630 046 7970 PIPE FITTINGS 1
58 630 043 8017 AIR CLEAN EQPT 1
58 -1 630 062 4533 AIR LINE EQPT 1
59 630 043 8024 AIR CLEAN EQPT 1
59 -1 630 062 4540 AIR LINE EQPT 1
60 630 003 8187 PIPE FITTINGS 1
61 630 061 4893 VALVE 1
62 630 003 8125 PIPE FITTINGS 1
MODEL TCM-3200J
0102-001
180
空圧制御部 PNEUMATIC SECTION

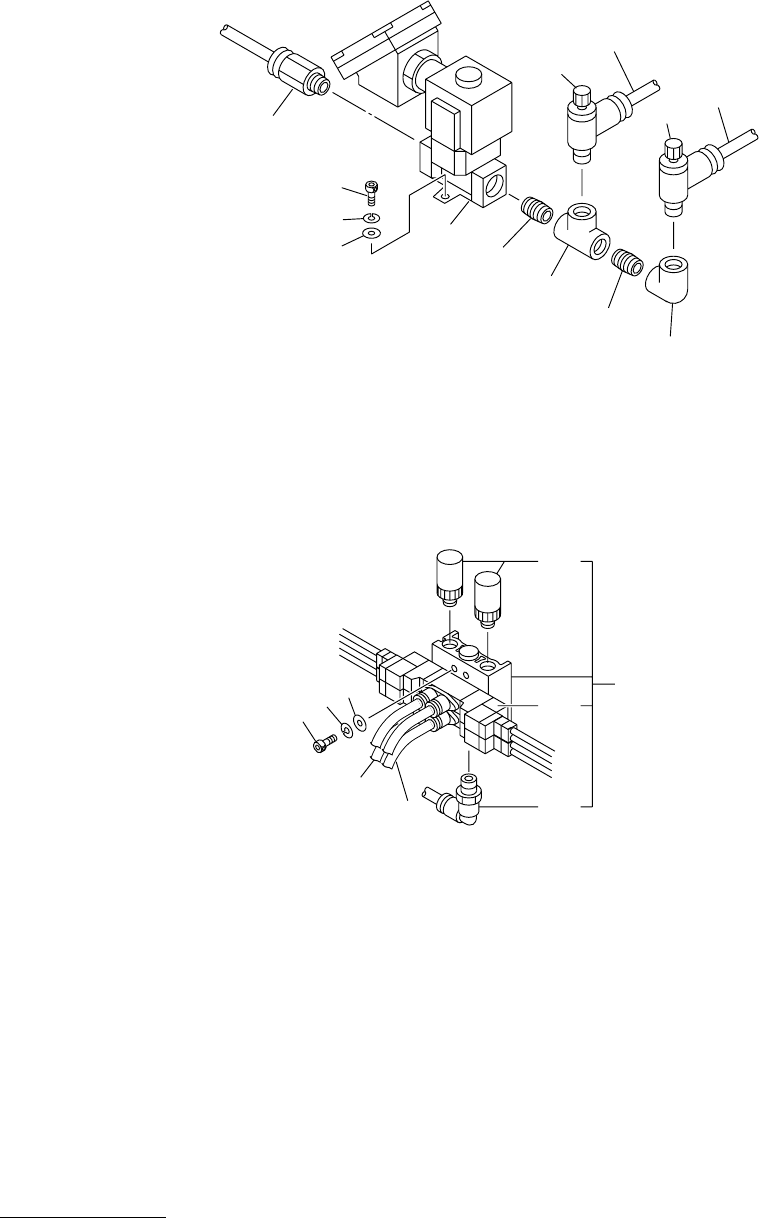

Fig. 10-3 エア配管 Air Piping
21
21
22
22
23
23
25
25
26
29
29
28
28
27
27
41
41
42
42
22
24
25
1-3
1-3
1-2
1-2
1-4
1-4
1
2
3
4
11
12
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
181
10-3
1 630 053 8540 SOLENOID VALVE 1 759F--01H-030
1 -2 630 081 3593 SOLENOID VALVE 2 SV24A,SV24B,SV31A,SV31B
1 -3 630 003 6541 AIR LINE EQPT 2
1 -4 630 052 1993 PIPE FITTINGS 1
2 411 141 4008 WASHER V 4X9X0.8 2 FW4
3 411 141 2905 WASHER SPR 4 2 SW4
4 630 000 7688 BOLT,HEX-SCT 2 M4X30
21 630 000 1709 SOLENOID VALVE 1 SV30 759L--01H-014
22 630 003 8163 PIPE FITTINGS 2
23 630 003 8064 PIPE FITTINGS 1
24 630 003 7821 PIPE FITTINGS 1
25 630 003 6688 AIR LINE EQPT 2 759L--01H-015
26 630 031 8579 PIPE FITTINGS 1 759L--01H-016
27 411 141 4008 WASHER V 4X9X0.8 2 FW4
28 411 141 2905 WASHER SPR 4 2 SW4
29 630 000 7619 BOLT,HEX-SCT 2 M4X8
