MODEL TCM-3200J 0102-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 181 10-3 1 630 053 8540 SOLENOID V AL VE 1 759F--01H-030 1 -2 630 081 3593 SOLENOID V AL VE 2 SV24A,SV24B,SV31A,SV31B 1 -3 630 003 6541 AIR LINE …
MODEL TCM-3200J
0102-001
180
空圧制御部 PNEUMATIC SECTION
Fig. 10-3 エア配管 Air Piping
21
21
22
22
23
23
25
25
26
29
29
28
28
27
27
41
41
42
42
22
24
25
1-3
1-3
1-2
1-2
1-4
1-4
1
2
3
4
11
12
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
181
10-3
1 630 053 8540 SOLENOID VALVE 1 759F--01H-030
1 -2 630 081 3593 SOLENOID VALVE 2 SV24A,SV24B,SV31A,SV31B
1 -3 630 003 6541 AIR LINE EQPT 2
1 -4 630 052 1993 PIPE FITTINGS 1
2 411 141 4008 WASHER V 4X9X0.8 2 FW4
3 411 141 2905 WASHER SPR 4 2 SW4
4 630 000 7688 BOLT,HEX-SCT 2 M4X30
21 630 000 1709 SOLENOID VALVE 1 SV30 759L--01H-014
22 630 003 8163 PIPE FITTINGS 2
23 630 003 8064 PIPE FITTINGS 1
24 630 003 7821 PIPE FITTINGS 1
25 630 003 6688 AIR LINE EQPT 2 759L--01H-015
26 630 031 8579 PIPE FITTINGS 1 759L--01H-016
27 411 141 4008 WASHER V 4X9X0.8 2 FW4
28 411 141 2905 WASHER SPR 4 2 SW4
29 630 000 7619 BOLT,HEX-SCT 2 M4X8
MODEL TCM-3200J
0102-001
182
電気制御部 ELECTRICAL SECTION

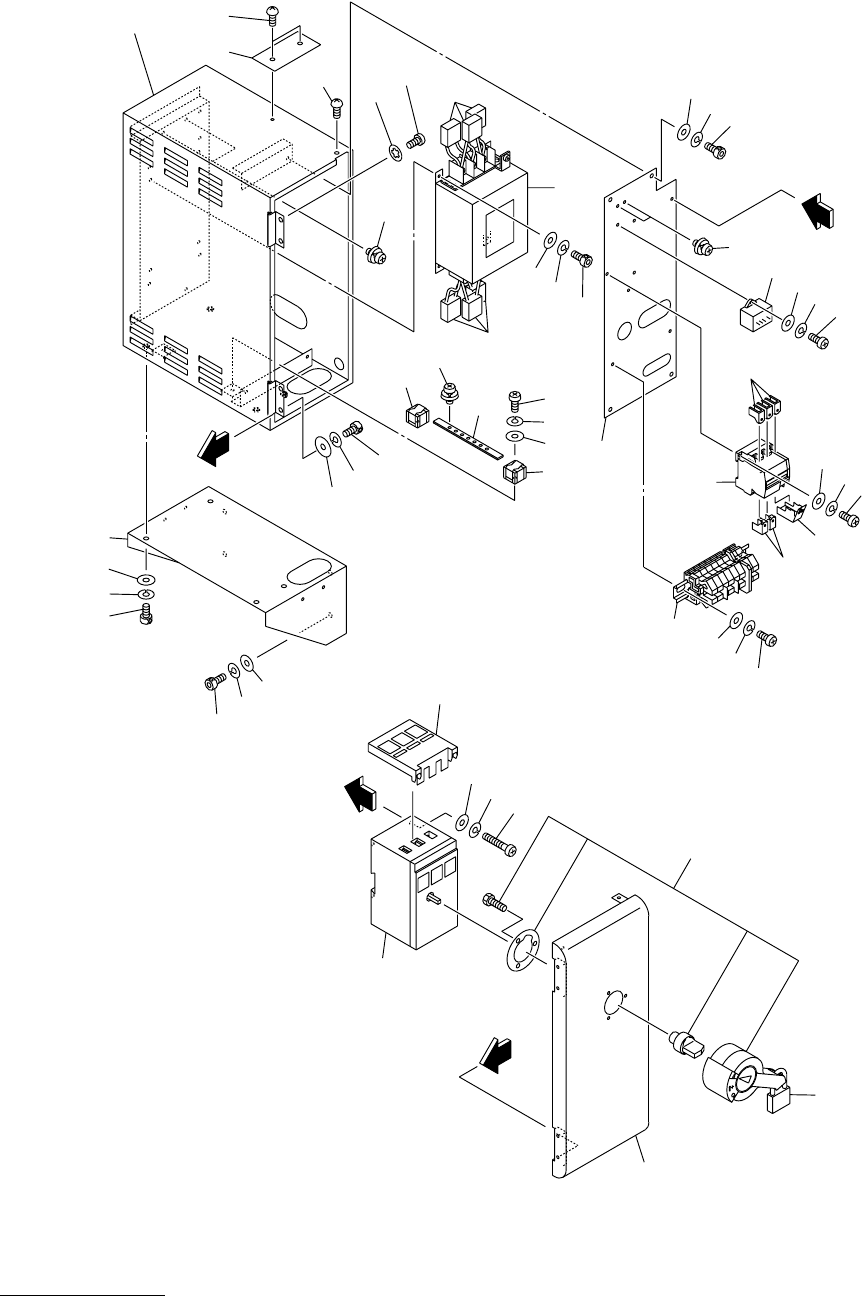

Fig. 11-1 一次電源 Power Supply-Primary
