MODEL TCM-3200J 0102-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 187 1 1-2 1 630 056 1210 SUPPORT 1 759BC-01V-002 2 630 001 0220 WASHER 2 BW5 3 411 1 41 6705 WASHER SPR 5 2 SW5 4 630 000 7756 BO L T ,HEX-SCT 2 …
MODEL TCM-3200J
0102-001
186
電気制御部 ELECTRICAL SECTION

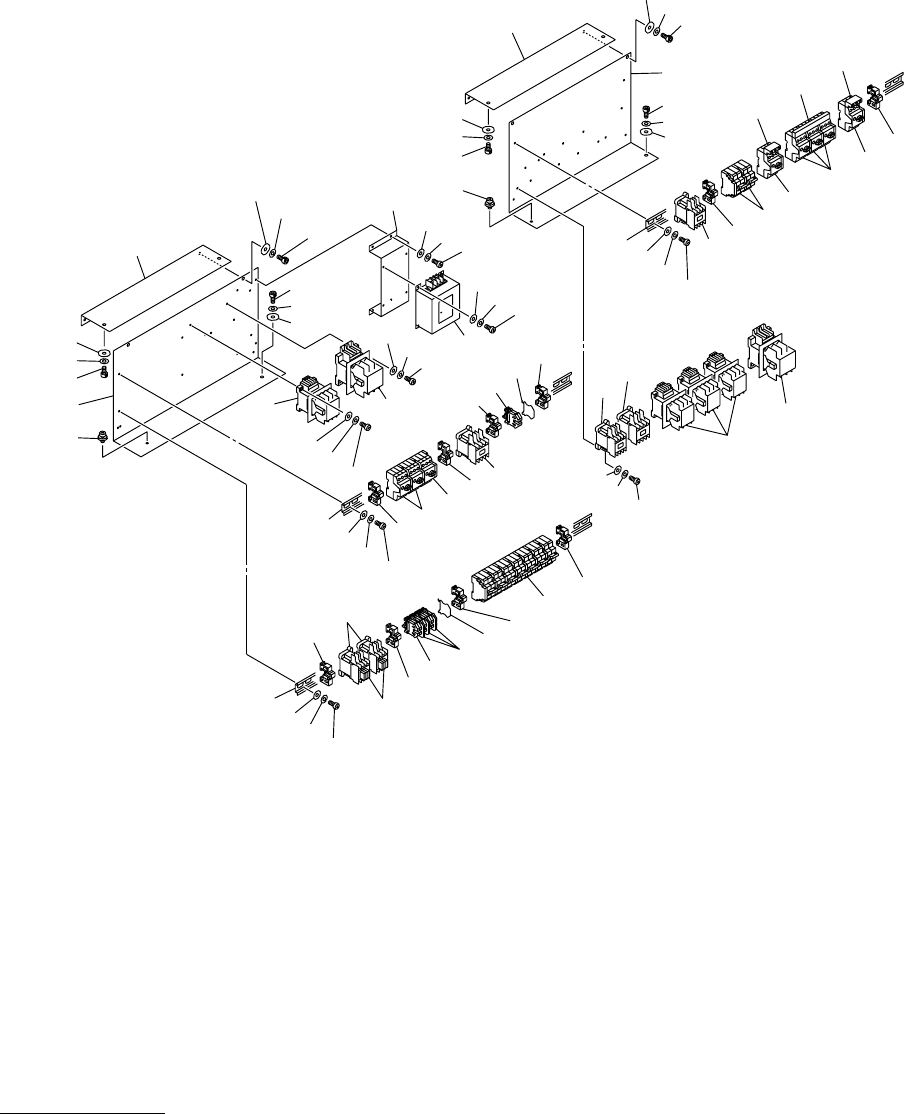

Fig. 11-2 200V 電源 Power Supply-200V
41
42
43
1
2
3
4
43
42
41
11
36
25
26
27
28
35
21
67
66-1
66-1
68
69
67
66
68
69
69
63
63
103
103
101
101
102
102
103
102
102
101
101
64
65
63
51
52
53
54
104
64
65
65
72
71
73
73
74
82
81
83
83
84
92
85
85-1
90
87
88
90
91
92
29
30
29
22
23
24
11
12
12
13
13-1
.
62
62-1
62-1
80
75
76
80
79
80
96
98
99
99
.
86
86
89
89
.
61
61-1
.
14
14-1
14-1
.
16
17
18
10
44
60
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
187
11-2
1 630 056 1210 SUPPORT 1 759BC-01V-002
2 630 001 0220 WASHER 2 BW5
3 411 141 6705 WASHER SPR 5 2 SW5
4 630 000 7756 BOLT,HEX-SCT 2 M5X12
10 630 091 6065 PANEL 1 759BC-01V-001
11 630 053 8618 EM-CONTACTOR 2 MC8, 9 759BC-01D-004
12 630 053 8601 EM-CONTACTOR 1 MC18 759BC-01D-062
13 630 049 0749 EM-CONTACTOR 3 MC6, 7, 11 759BC-01D-005
13 -1 630 049 2132 COVER 3 759BC-01D-051
14 630 049 0763 EM-CONTACTOR 1 MC10 759BC-01D-012
14 -1 630 049 2149 COVER 1 759BC-01D-050
16 411 119 2104 WASHER V 4X9X0.8 12 FW4 F
17 411 008 1706 WASHER SPR 4 12 SW4 F
18 411 042 3001 SCR PAN 4X10 12 M4X10 PAN
21 630 089 6565 RAIL,WIRING 1
22 411 119 2104 WASHER V 4X9X0.8 3 FW4 F
23 411 008 1706 WASHER SPR 4 3 SW4 F
24 411 043 5004 SCR PAN 4X8 3 M4X8 PAN
25 630 088 9499 CIRCUIT PROTECTOR 2 CB208, CB209 759BC-01D-044
26 630 067 0349 CIRCUIT PROTECTOR 1 CB205 759BC-01D-045
27 630 067 3227 CIRCUIT PROTECTOR 3 CB206, CB207, CB211
759BC-01D-042
28 630 074 0196 CIRCUIT PROTECTOR 1 CB210 759BC-01D-043
29 630 068 8894 TERMINAL 1 759BC-01D-055
30 630 074 8369 WIRE PARTS 1 759BC-01D-054
35 630 049 3672 BRACKET,WIRING 1 759BC-01D-026
36 630 049 3672 BRACKET,WIRING 1 759BC-01D-026
41 630 001 0220 WASHER 3 BW5
42 411 141 6705 WASHER SPR 5 3 SW5
43 630 000 7756 BOLT,HEX-SCT 3 M5X12
44 411 036 8609 SCR PAN+SW+W 5X12 1
51 630 056 1210 SUPPORT 1 759BC-01V-002
52 630 001 0220 WASHER 2 BW5
53 411 141 6705 WASHER SPR 5 2 SW5
54 630 000 7756 BOLT,HEX-SCT 2 M5X12
60 630 095 3572 PANEL 1 759BC-01V-003
61 630 049 0749 EM-CONTACTOR 1 MC1 759BC-01D-005
61 -1 630 049 2132 COVER 1 759BC-01D-051
62 630 000 3581 EM-CONTACTOR 1 MC14 759BC-01D-052
62 -1 630 049 2149 COVER 1 759BC-01D-050
63 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
64 411 008 1706 WASHER SPR 4 4 SW4 F
65 411 042 3001 SCR PAN 4X10 4 M4X10 PAN
66 630 094 5591 FILTER,NOISE 1 NF3 759BC-01D-080
66 -1 630 095 3374 BRACKET 1 759BC-01V-009
67 411 119 2104 WASHER V 4X9X0.8 8 FW4 F
68 411 008 1706 WASHER SPR 4 8 SW4 F
69 411 042 3001 SCR PAN 4X10 8 M4X10 PAN
71 630 089 6527 RAIL,WIRING 1
72 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
188
11-2
73 411 008 1706 WASHER SPR 4 2 SW4 F
74 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
75 630 069 5915 CIRCUIT PROTECTOR 2 CB202, CB203 759BC-01D-041
76 630 067 3227 CIRCUIT PROTECTOR 1 CB201 759BC-01D-042
79 630 053 8601 EM-CONTACTOR 1 MC13 759BC-01D-027
80 630 049 3672 BRACKET,WIRING 3 759BC-01D-026
81 630 089 6589 RAIL,WIRING 1
82 411 119 2104 WASHER V 4X9X0.8 3 FW4 F
83 411 008 1706 WASHER SPR 4 3 SW4 F
84 411 043 5004 SCR PAN 4X8 3 M4X8 PAN
85 630 049 2200 EM-CONTACTOR 2 MC2, MC3 759BC-01D-010
85 -1 630 000 1853 COMP,CR 6 759BC-01D-008
86 630 049 3696 TERMINAL 8 759BC-01D-021
87 630 049 3757 ACCESSORY,WIRING 3 759BC-01D-025
88 630 049 3733 ACCESSORY,WIRING 1 759BC-01D-023
90 630 049 3672 BRACKET,WIRING 1 759BC-01D-026
91 630 088 9482 CIRCUIT PROTECTOR 7 CB212-218 759BC-01D-061
92 630 049 3672 BRACKET,WIRING 3 759BC-01D-026
96 630 049 3696 TERMINAL 2 759BC-01D-021
98 630 049 3733 ACCESSORY,WIRING 1 759BC-01D-023
99 630 049 3672 BRACKET,WIRING 1 759BC-01D-026
101 630 001 0220 WASHER 3 BW5
102 411 141 6705 WASHER SPR 5 3 SW5
103 630 000 7756 BOLT,HEX-SCT 3 M5X12
104 411 036 8609 SCR PAN+SW+W 5X12 1
