P-0227-001 - 第225页
MODEL TCM-3200J 0102-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 223 1 1-16 1 630 091 6126 SUPPORT 1 759FB-01V-019 2 630 001 0220 WASHER 2 BW5 3 411 1 41 6705 WASHER SPR 5 2 SW5 4 630 000 7756 BO L T ,HEX-SCT 2…
MODEL TCM-3200J
0102-001
222
電気制御部 ELECTRICAL SECTION

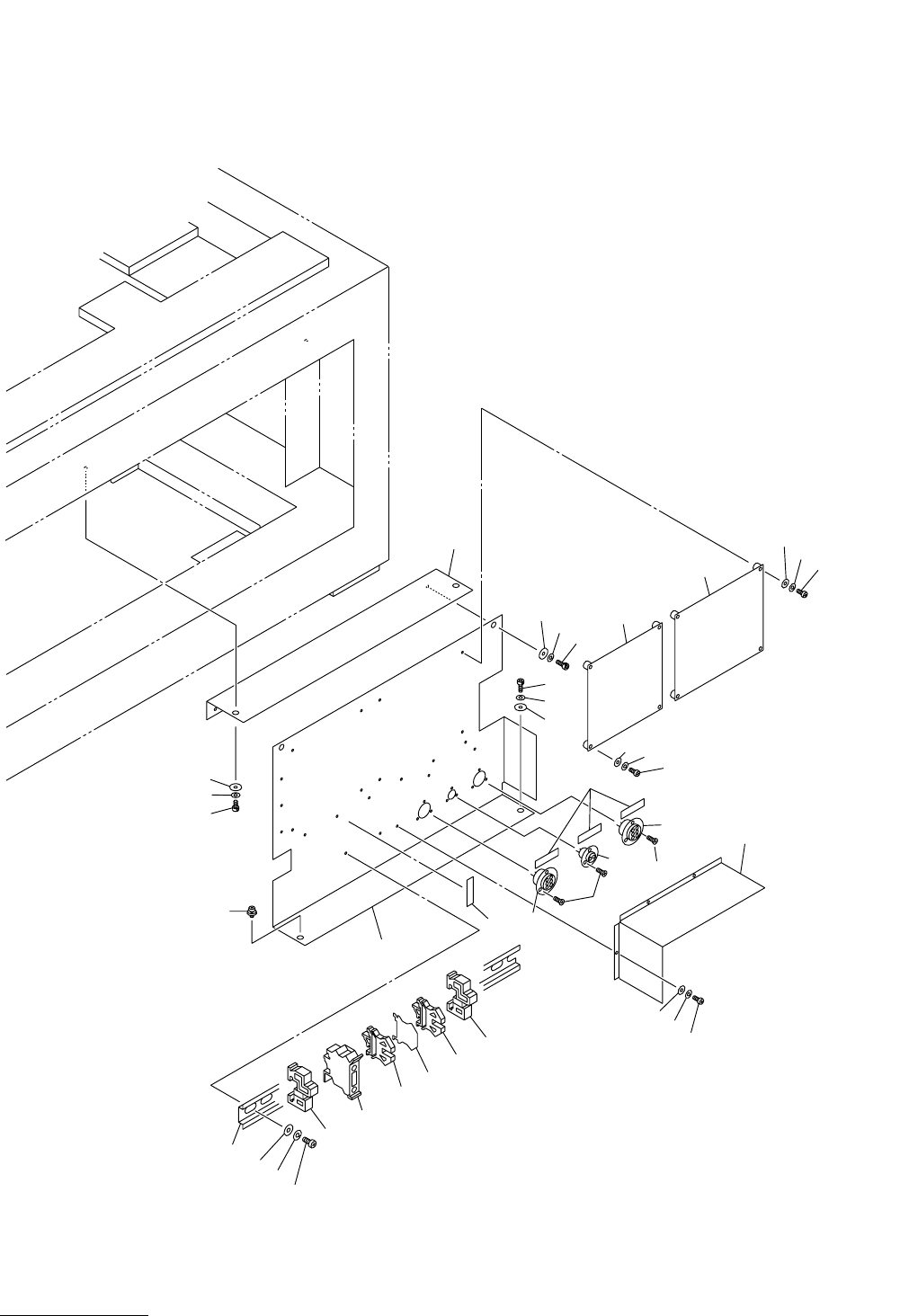

Fig. 11-16 前後工程 I/F 1 Previous/Next Work Process
Interface-1
47
48
49
37
36
38
38
39
31
1
32
33
33
32
31
21
11
14
30
15
15
13
13
50
10
10
2
34
3
4
20
46
22
23
51
52
44
42
43
42
42
41
41
41-1
41-1
.
44
44
53
54
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
223
11-16
1 630 091 6126 SUPPORT 1 759FB-01V-019
2 630 001 0220 WASHER 2 BW5
3 411 141 6705 WASHER SPR 5 2 SW5
4 630 000 7756 BOLT,HEX-SCT 2 M5X12
10 630 091 6089 PANEL 1 759FB-01V-017
11 630 004 6496 CONNECTOR 1 CN111 759FB-01D-130
13 630 004 6496 CONNECTOR 1 CN113 759FB-01D-130
14 630 004 6274 CONNECTOR 1 CN114 759FB-01D-129
15 411 034 7208 SCR FLT 3X8 9 M3X8 FLT
20 630 062 4793 P.C.B,MOUNT(I/F) 1 U943*001*0000 759FB-01U-002
21 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
22 411 086 4408 WASHER SPR 3 4 SW3 F
23 411 041 8908 SCR PAN 3X6 4 M3X6 PAN
31 630 001 0220 WASHER 3 BW5
32 411 141 6705 WASHER SPR 5 3 SW5
33 630 000 7756 BOLT,HEX-SCT 3 M5X12
34 411 036 8609 SCR PAN+SW+W 5X12 1
37 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
38 411 008 1706 WASHER SPR 4 2 SW4 F
39 411 043 5004 SCR PAN 4X8 2 M4X8 PAN
41 630 070 4808 FUSE HOLDER 1 759FB-01D-157
41 -1 423 022 8005 FUSE 250V 1A 1 F136 759FB-01D-162
42 630 049 3801 TERMINAL 2 759FB-01D-155
43 630 049 3733 ACCESSORY,WIRING 1 759FB-01D-156
44 630 049 3672 BRACKET,WIRING 2 759FB-01D-158
46 630 096 2536 P.C.B,MOUNT(MEKAHAI) 1 U942*002*0000 759FB-01U-001
47 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
48 411 086 4408 WASHER SPR 3 4 SW3 F
49 411 041 8908 SCR PAN 3X6 4 M3X6 PAN
51 630 091 6010 COVER 1 759FB-01V-050
52 411 119 2104 WASHER V 4X9X0.8 3 FW4 F
53 411 008 1706 WASHER SPR 4 3 SW4 F
54 411 043 5004 SCR PAN 4X8 3 M4X8 PAN
MODEL TCM-3200J
0102-001
224
電気制御部 ELECTRICAL SECTION

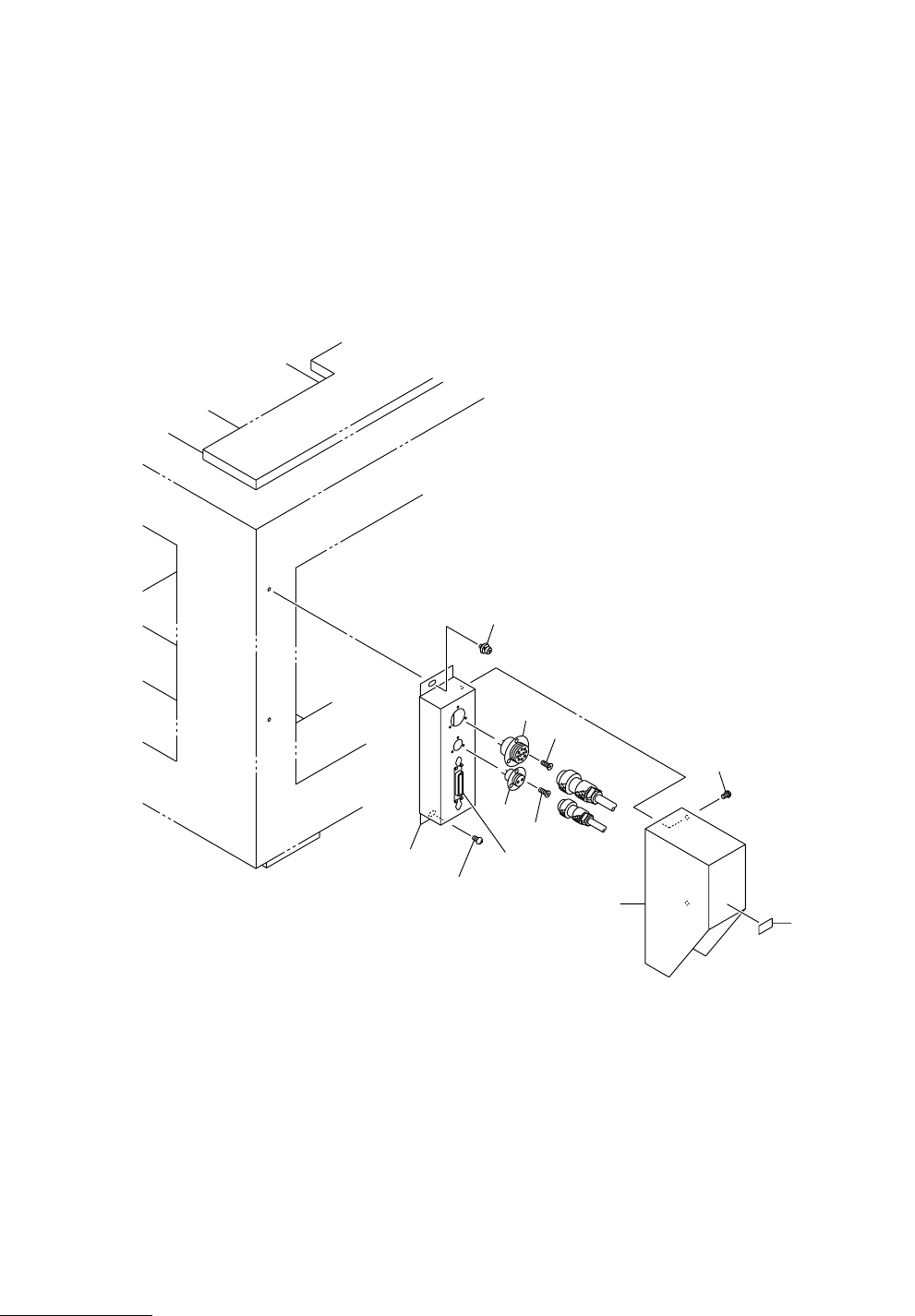

Fig. 11-17 前後工程 I/F 2 Previous/Next Work Process
Interface-2
30-1
32
22
24
33
23
24
25
31
21
30
