MODEL TCM-3200J 0102-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 237 1 1-22 1 630 095 3381 P ANEL 1 759BD-01V-008 2 630 001 0220 WASHER 2 BW5 3 411 1 41 6705 WASHER SPR 5 2 SW5 4 411 14 1 050 5 NUT HEX 5 2 M 5 …
MODEL TCM-3200J
0102-001
236
電気制御部 ELECTRICAL SECTION

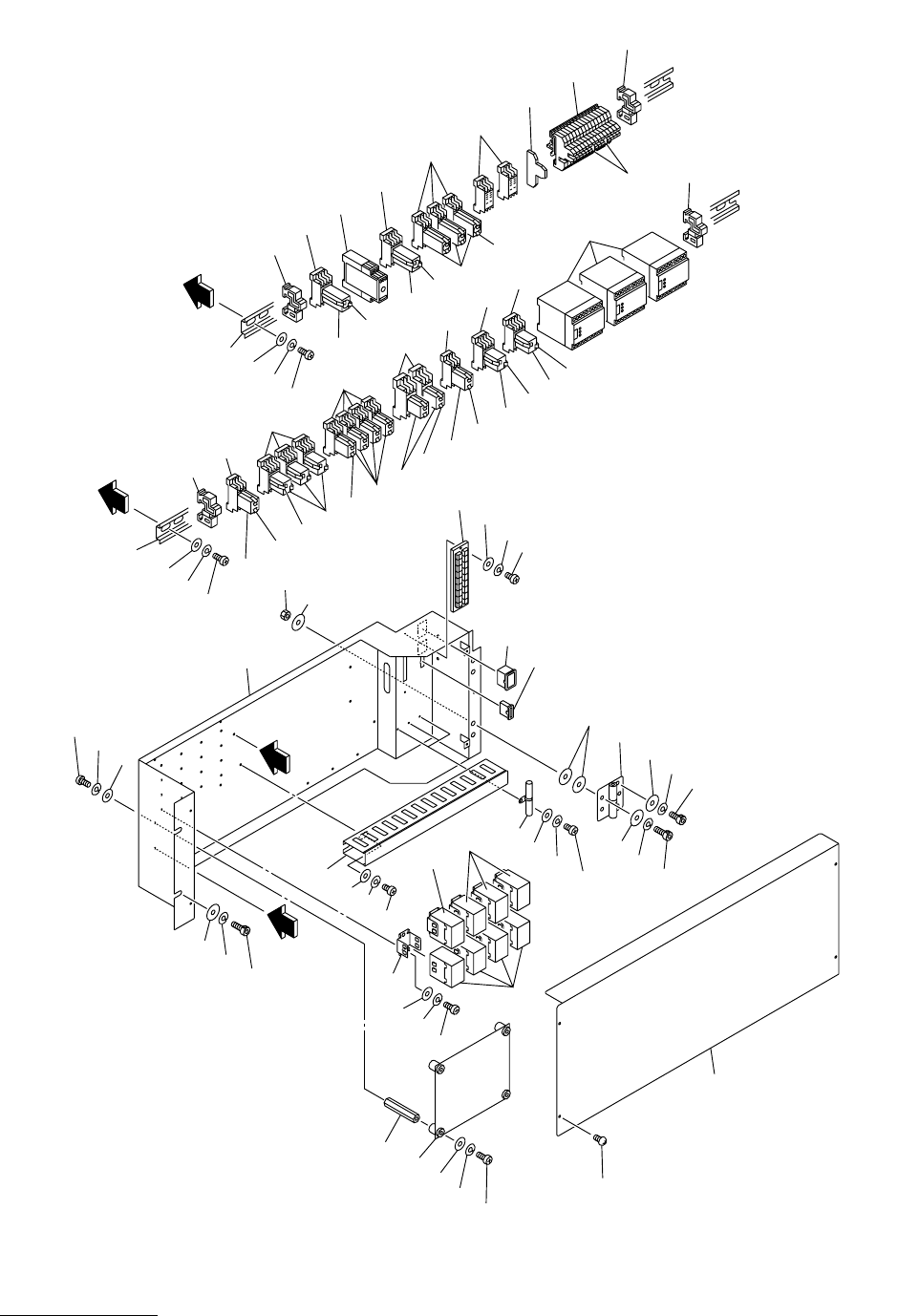

Fig. 11-22
リレーシーケンスボックス 1
Relay Sequence Box 1
A
B
Fig.11-22
TCM-3200J
A
B
23
23
24
24
25
26
67
68
69
70
61
61
62
96
95
1
18
18
17
16
16
2
3
4
10
11
11
12
20
19
15
21
22
82
64
63
65
66
92
93
94
97
90
91
98
99
81
72
71
71
73
74
13
13
14
14
14
9
59
43
46
43
49
49
43
52
55
59
23-1
23-1
24
25
26
41
28
27
28
28
31
34
32
30
30
29
30
29
29
45
48
45
45
47
44
51
50
44
45
53
54
56
57
44
33
40
37
38
39
.
58
58-1
58-1
.
41
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
237
11-22
1 630 095 3381 PANEL 1 759BD-01V-008
2 630 001 0220 WASHER 2 BW5
3 411 141 6705 WASHER SPR 5 2 SW5
4 411 141 0505 NUT HEX 5 2 M5
9 630 049 2422 BRACKET,WIRING 8 759BD-01D-002
10 411 119 2104 WASHER V 4X9X0.8 16 FW4 F
11 411 008 1706 WASHER SPR 4 16 SW4 F
12 411 043 5004 SCR PAN 4X8 16 M4X8 PAN
13 630 085 7498 RELAY 1 CR1 759BD-01D-705
14 630 049 2439 RELAY 7 CR9, 17, 18, 24, 25, 26, 28
759BD-01D-001
15 630 075 0454 STAY 4 759BD-01V-004
16 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
17 411 086 4408 WASHER SPR 3 4 SW3 F
18 411 040 6202 SCR PAN 3X10 4 M3X10 PAN
19 630 096 2734 P.C.B,MOUNT(MEKAHAI) 1 U942*002*0002 759BD-01U-001
20 411 119 1909 WASHER V 3X7X0.5 4 FW3 F
21 411 086 4408 WASHER SPR 3 4 SW3 F
22 411 162 1604 SCR PAN 3X20 4 M3X20 PAN
24 411 119 2104 WASHER V 4X9X0.8 4 FW4 F
25 411 008 1706 WASHER SPR 4 4 SW4 F
26 411 042 3001 SCR PAN 4X10 4 M4X10 PAN
27 630 082 3912 TIMER 1 TMR2 759BD-01D-009
28 630 049 2088 SOCKET 2 759BD-01D-012
29 630 049 2491 TIMER 2 TMR1, 4 759BD-01D-008
30 630 000 1037 BRACKET,WIRING 2 759BD-01D-014
31 630 045 4260 SOCKET 3 759BD-01D-010
32 630 007 3881 TIMER 3 TMR5, 6, 7 759BD-01D-007
33 630 000 1037 BRACKET,WIRING 3 759BD-01D-014
34 630 045 4260 SOCKET 2 759BD-01D-010
37 630 091 2937 TERMINAL 15 759BD-01D-016
38 630 049 3672 BRACKET,WIRING 2 759BD-01D-020
39 630 058 8415 ACCESSORY,WIRING 2 759BD-01D-019
40 630 091 2944 ACCESSORY,WIRING 1 759BD-01D-018
43 630 045 4260 SOCKET 6 759BD-01D-010
44 630 049 2460 RELAY 6 CR3, 15, 16, 19, 20, 30
759BD-01D-003
45 630 000 1020 BRACKET,WIRING 6 759BD-01D-015
46 630 013 5862 SOCKET 3 759BD-01D-011
47 630 049 2477 RELAY 3 CR4, 5, 11 759BD-01D-004
48 630 000 1020 BRACKET,WIRING 3 759BD-01D-015
49 630 049 2071 SOCKET 2 759BD-01D-013
50 630 049 2453 RELAY 2 CR21, 22 759BD-01D-005
51 630 000 1020 BRACKET,WIRING 2 759BD-01D-015
52 630 013 5862 SOCKET 1 759BD-01D-011
53 630 049 2477 RELAY 1 CR40 759BD-01D-004
54 630 000 1020 BRACKET,WIRING 1 759BD-01D-015
55 630 049 2088 SOCKET 1 759BD-01D-012
56 630 053 8564 RELAY 1 CR46 759BD-01D-709
57 630 000 1020 BRACKET,WIRING 1 759BD-01D-015
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
238
11-22
58 630 069 1283 RELAY 3 CR37, 38, 39 759BD-01D-039
58 -1 423 025 2000 FUSE 250V 0.4A 1
59 630 049 3672 BRACKET,WIRING 2 759BD-01D-020
61 630 093 0733 CASE,CONN 1 759BD-01D-715
62 630 093 0740 CASE,CONN 1 759BD-01D-711
63 402 082 4608 WIRE WOUND 470 JB 10W 3 R2, 3, 4 759BD-01D-710
64 411 119 1909 WASHER V 3X7X0.5 3 FW3 F
65 411 086 4408 WASHER SPR 3 3 SW3 F
66 411 040 6202 SCR PAN 3X10 3 M3X10 PAN
67 630 091 5709 TERMINAL 1 759BD-01D-707
68 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
69 411 086 4408 WASHER SPR 3 2 SW3 F
70 411 113 0809 SCR PAN 3X25 2 M3X25 PAN
72 411 119 2104 WASHER V 4X9X0.8 2 FW4 F
73 411 008 1706 WASHER SPR 4 2 SW4 F
74 411 042 3001 SCR PAN 4X10 2 M4X10 PAN
81 630 091 6027 COVER 1 759BD-01V-007
82 411 113 7501 SCR TRS 4X10 4 M4X10 TRS
90 630 001 0237 WASHER 8 BW6
91 630 092 3001 HINGE 2 759L--01B-054
92 630 001 0237 WASHER 4 BW6
93 411 141 3001 WASHER SPR 6 4 SW6
94 630 000 7909 BOLT,HEX-SCT 4 M6X25
95 630 001 0237 WASHER 4 BW6
96 411 141 0703 NUT HEX 6 4 M6
97 630 001 0220 WASHER 6 BW5
98 411 141 6705 WASHER SPR 5 6 SW5
99 630 000 7770 BOLT,HEX-SCT 6 M5X20
