MODEL TCM-3200J 0102-001 250 カバー部 COVER SECTION Fig. 12-4 上部カバー Upper Cover 70 46 47 48 45 23 101 102 102-1 102-1 101-1 101-1 49 41 41 54 56 55 56 24 56 56 56 56 56 56 56 55-4 55-4 55-3 55-2 55-2 A 25 25 50 50 50 51 52 5…
MEMO
MODEL TCM-3200J
0102-001
250
カバー部 COVER SECTION

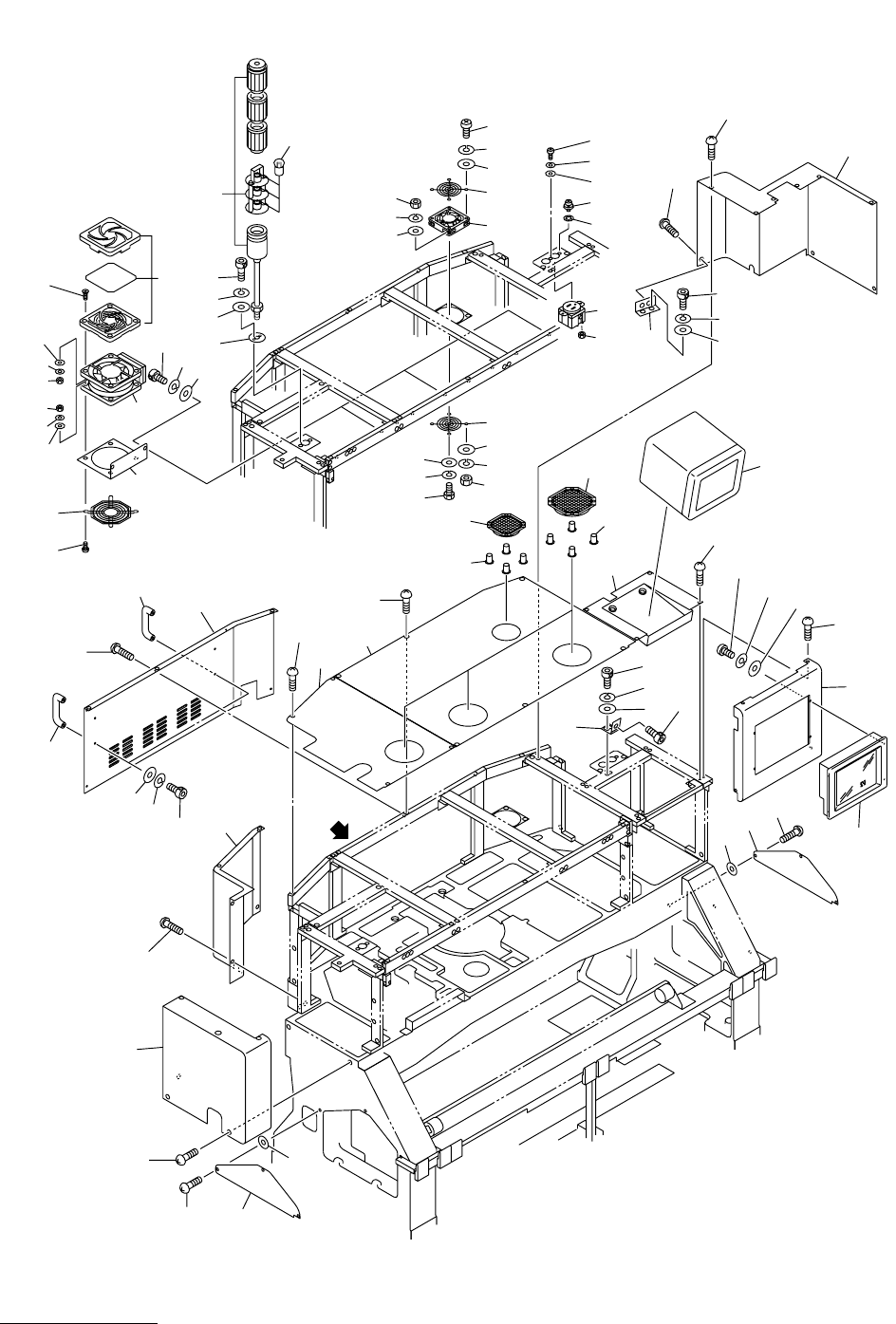

Fig. 12-4 上部カバー Upper Cover
70
46
47
48
45
23
101
102
102-1
102-1
101-1
101-1
49
41
41
54
56
55
56
24
56
56
56
56
56
56
56
55-4
55-4
55-3
55-2
55-2
A
25
25
50
50
50
51
52
53
44
43
42
30
29
28
26
27
71
72
72
72
71
71
17-1
17-1
16
16
15
15
17-2
17-2
16
15
14
14
15
17-1
17
16
15
14
11
16
2
2-1
5
4
3
1
DETAIL"A"
DETAIL"A"
21-1
21-2
19
20
21
18
22
55-1
83
98
82
81
85
87
86
89
88
94
92
93
91
97
96
70
Fig.12-4
TCM-3200J
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
251
12-4
1 630 035 2658 BRACKET 1 759FB-01D-077
2 630 056 2125 PILOT LAMP 1 759FB-01D-040
2 -1 630 000 1983 LAMP 3 RL, YL, GL
3 411 141 4107 WASHER V 5X10X1 2 FW5
4 411 141 6705 WASHER SPR 5 2 SW5
5 630 000 7749 BOLT,HEX-SCT 2 M5X10
11 630 062 8258 MOTOR,DC 1 FAN7, MDS1225-24 759FB-01D-069
14 630 049 1074 ACCESSORY,MOT-M 2 759FB-01D-300
15 411 119 2104 WASHER V 4X9X0.8 8 FW4 F
16 411 008 1706 WASHER SPR 4 8 SW4 F
17 411 161 9007 SCR PAN 4X35 2 M4X35 PAN
17 -1 411 054 8506 NUT HEX 4 4 M4 F
17 -2 411 140 4702 BOLT HEX 4X10 2 M4X10 HEX
18 630 000 4243 SOCKET 1 759DB-01D-006
19 411 119 1909 WASHER V 3X7X0.5 1 FW3 F
20 411 086 4408 WASHER SPR 3 1 SW3 F
21 411 040 7803 SCR PAN 3X12 1 M3X12 PAN
21 -1 411 086 9809 WASHER IN TW 3 1
21 -2 411 114 7005 SCR PAN+SW+W 3X8 1
22 411 054 6809 NUT HEX 3 2 M3 F
23 630 052 6165 COVER 1 759R--01B-025
24 411 113 9109 SCR TRS 5X10 4 M5X10 TRS
25 630 045 8060 UNIT,DISPLAY 1 10-VMB300 759DB-01D-001
26 630 052 7629 BRACKET 1 759R--01B-024
27 630 000 7497 BOLT,HEX-SCT 1 M3X4
28 411 141 4107 WASHER V 5X10X1 2 FW5
29 411 141 6705 WASHER SPR 5 2 SW5
30 630 000 7749 BOLT,HEX-SCT 2 M5X10
41 630 051 2557 BRACKET 1 759R--01B-030
42 411 141 4107 WASHER V 5X10X1 2 FW5
43 411 141 6705 WASHER SPR 5 2 SW5
44 630 000 7749 BOLT,HEX-SCT 2 M5X10
45 630 075 8658 COVER 1 759R--01B-035
46 630 058 0464 COVER 1 759R--01B-031
47 630 075 8030 COVER 1 759R--01B-032
48 630 075 8047 COVER 1 759R--01B-033
49 630 092 1175 COVER 1 759R--01B-037
50 630 003 5087 HANDLE 2 759R--01H-008
51 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
52 411 141 3001 WASHER SPR 6 4 SW6
53 630 000 7862 BOLT,HEX-SCT 4 M6X10
54 630 075 8689 COVER 1 759R--01B-038
55 630 085 4404 COVER 1 759R--01B-036
55 -1 630 086 8395 UNIT,DISPLAY 1 #UT3-E1AE-D-M 759DB-01D-002
55 -2 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
55 -3 411 086 4408 WASHER SPR 3 2 SW3 F
55 -4 411 113 0700 SCR PAN 3X16 2 M3X16 PAN
56 411 113 9109 SCR TRS 5X10 36 M5X10 TRS
70 630 029 1391 WASHER 6 759R--01H-016
71 630 063 4129 COVER 2 759R--01B-137
