MODEL TCM-3200J 0102-001 52 ヘッド駆動部 HEAD DRIVING SECTION Fig. 3-12 カム軸－ 3 Cam Shaft-3 1-1 1-1 1-2 5 14 19 15 16 16 17 17 18 9 9 13 13 10 10 11 11 12 12 6 6 9 9 13 13 7 7 10 10 11 11 12 12 9 13 8 10 10 11 11 12 25 25 23 23…
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
51
3-11
1 630 048 6995 BASE 1 759K--01B-007
2 411 141 4503 WASHER V 8X17X1.6 4 FW8
3 411 141 3100 WASHER SPR 8 4 SW8
4 630 000 8043 BOLT,HEX-SCT 4 M8X35
10 630 060 4849 ASSY,LEVER(STOPPER TYPE2) 2
11 630 048 7244 BASE 1 759K--01B-031
12 630 055 2881 SHAFT 1 759K--01B-030
13 630 048 7268 LEVER 1 759K--01B-033
14 630 000 8944 SET SCREW 1 M5X6 SET
15 630 001 1272 BEARING,RADIAL 2 759K--01H-012
16 411 051 1708 SCR TRS 4X6 4 M4X6 TRS
17 630 060 4931 ASSY,CYLINDER(STOPPER R) 2 SV17,SV23
17 -1 630 055 2874 CYLINDER 1 759K--01H-053
17 -2 630 000 0436 CASE,CONN 1
17 -3 630 000 4281 CABLE JOINT,TERMINAL 2
18 411 118 8503 NUT HEX 5 2 M5 F
19 630 000 8661 BOLT,HEX 2 M5X35 HEX
20 630 029 1391 WASHER 8 759K--01H-048
21 411 141 6705 WASHER SPR 5 8 SW5
22 630 000 7770 BOLT,HEX-SCT 8 M5X20
51 630 003 7708 PIPE FITTINGS 1
54 411 141 4008 WASHER V 4X9X0.8 1 FW4
55 411 141 2905 WASHER SPR 4 1 SW4
56 630 000 7664 BOLT,HEX-SCT 1 M4X20
MODEL TCM-3200J
0102-001
52

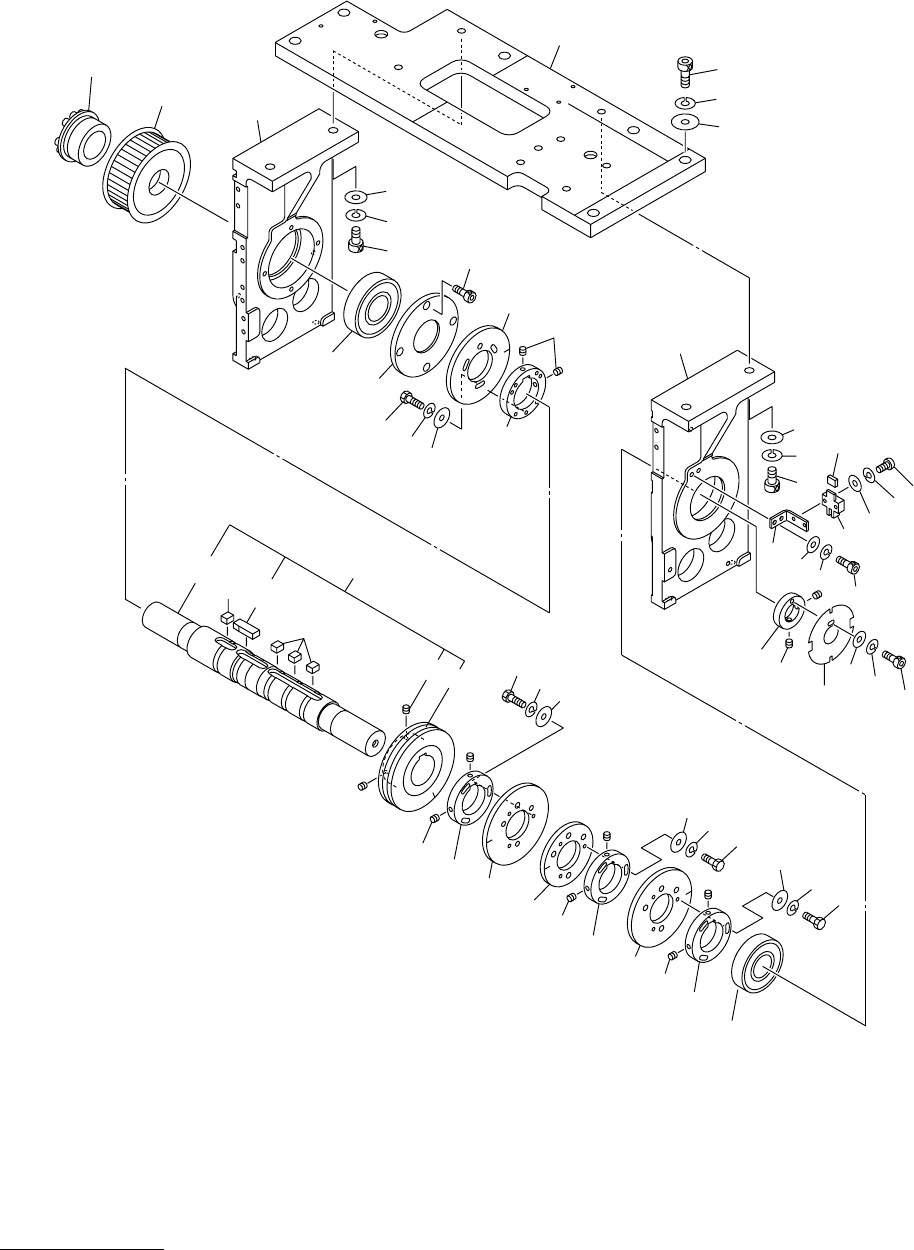

ヘッド駆動部 HEAD DRIVING SECTION
Fig. 3-12 カム軸－ 3 Cam Shaft-3
1-1
1-1
1-2
5
14
19
15
16
16
17
17
18
9
9
13
13
10
10
11
11
12
12
6
6
9
9
13
13
7
7
10
10
11
11
12
12
9
13
8
10
10
11
11
12
25
25
23
23
24
24
33
33
34
34
35
35
36
36
37
37
38
38
39
39
40
40
20
20
32
32
31
31
30
30
21
21
26
26
27
27
28
28
29
29
41
41
42
42
43
43
44
44
45
45
46
46
47
47
48
48
49
49
5
22
22
27
27
28
28
29
29
1-4
1-3
1-3
1
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
53
3-12
1 630 060 4924 ASSY,CAM(CUTTER) 1
1 -1 630 052 6011 SHAFT 1 759K--01B-039
1 -2 630 049 0992 KEY 1 759K--01B-081
1 -3 630 058 3519 CAM (06) 1 759K--01B-076
1 -4 630 000 8982 SET SCREW 2 M6X8 SET
5 630 049 0244 KEY 4 759K--01H-045
6 630 058 3533 CAM (08) 1 759K--01B-078
7 630 058 3540 CAM (09) 1 759K--01B-079
8 630 061 3506 CAM (02) 1 759K--01B-072
9 630 048 9149 DISK 3 759K--01B-041
10 630 029 1391 WASHER 9 759K--01H-048
11 411 008 2109 WASHER SPR 5 9 SW5 F
12 630 000 8647 BOLT,HEX 9 M5X25 HEX
13 630 000 8982 SET SCREW 6 M6X8 SET
14 630 048 9132 DISK 1 759K--01B-040
15 630 058 6251 CAM (10) 1 759K--01B-080
16 630 029 1391 WASHER 3 759K--01H-048
17 411 008 2109 WASHER SPR 5 3 SW5 F
18 630 000 8630 BOLT,HEX 3 M5X20 HEX
19 630 000 8982 SET SCREW 2 M6X8 SET
20 630 091 7376 BASE 1 759K--01B-035
21 630 091 7383 HOLDER 1 759K--01B-036
22 630 049 0121 BEARING,RADIAL 1 759K--01H-008
23 630 049 0213 MECH PARTS(BEARING COVERS 1 759K--01H-044
24 630 000 7879 BOLT,HEX-SCT 4 M6X12
25 630 049 0077 BEARING,RADIAL 1 759K--01H-009
26 630 055 1983 HOLDER 1 759K--01B-037
27 411 141 4701 WASHER V 10X21X2 4 FW10
28 411 141 3209 WASHER SPR 10 4 SW10
29 630 000 8159 BOLT,HEX-SCT 4 M10X40
30 630 001 0251 WASHER 4 759K--01H-049
31 411 141 3209 WASHER SPR 10 4 SW10
32 630 000 8159 BOLT,HEX-SCT 4 M10X40
33 630 048 7312 PULLEY,TIMING 1 759K--01H-004
34 630 049 0060 MECH PARTS(MECHA LOCK) 1 759K--01H-007
35 630 048 7213 RING 1 759K--01B-029
36 630 000 8944 SET SCREW 2 M5X6 SET
37 630 048 7206 DISK 1 759K--01B-028
38 411 141 4008 WASHER V 4X9X0.8 1 FW4
39 411 141 2905 WASHER SPR 4 1 SW4
40 630 000 7626 BOLT,HEX-SCT 1 M4X10
41 630 052 1542 BRACKET 1 759K--01B-060
42 630 000 0245 SENSOR,PHOTO 1 PHS62 759K--01H-040
43 630 000 0269 SENSOR,PHOTO(CONNECTOR) 1 759K--01H-043
44 411 119 1909 WASHER V 3X7X0.5 2 FW3 F
45 411 086 4408 WASHER SPR 3 2 SW3 F
46 411 040 7803 SCR PAN 3X12 2 M3X12 PAN
47 411 141 4107 WASHER V 5X10X1 2 FW5
48 411 141 6705 WASHER SPR 5 2 SW5
49 630 000 7763 BOLT,HEX-SCT 2 M5X16
