MODEL TCM-3200J
0102-001
66

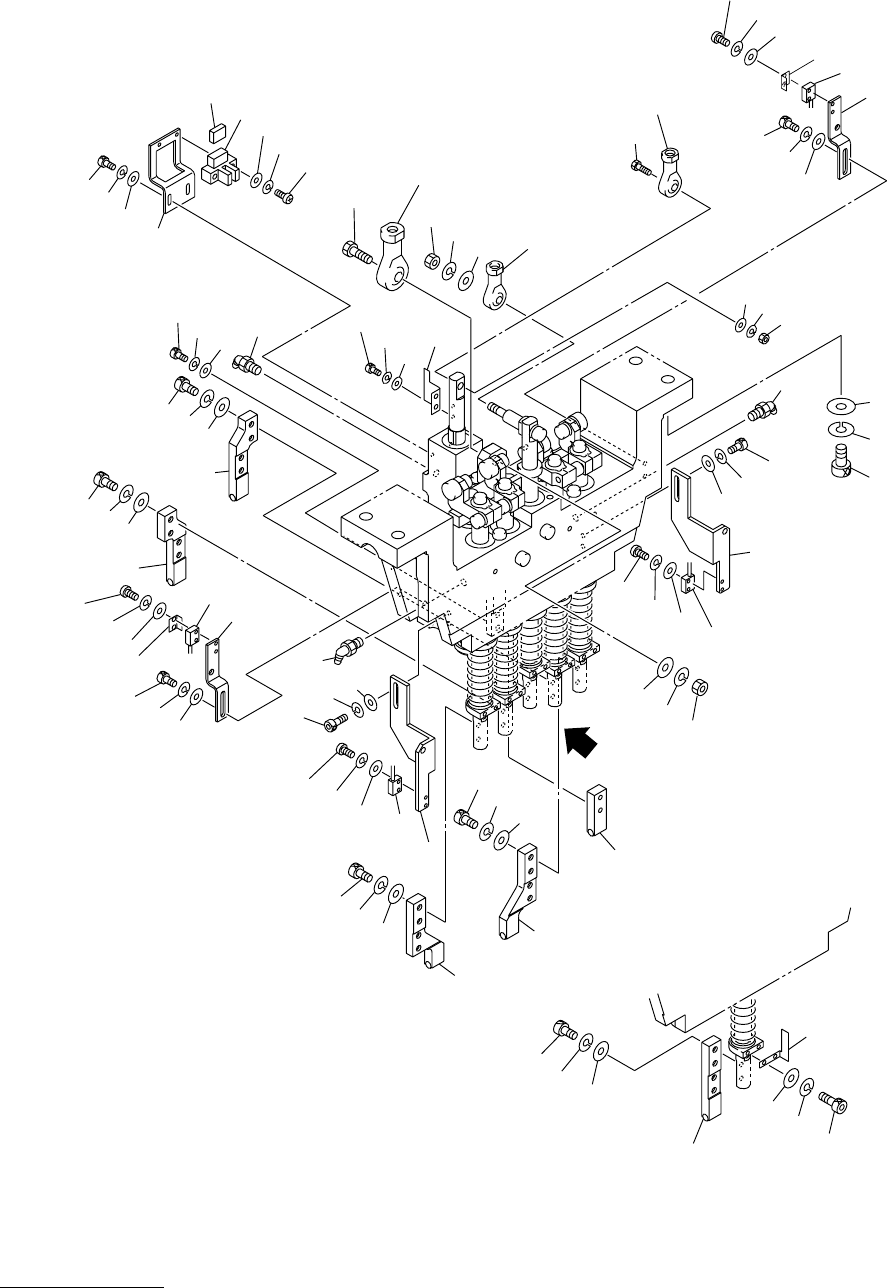

ヘッド駆動部 HEAD DRIVING SECTION
Fig. 3-17 テープ送り部 2 Tape Feed Section-2
87
See Fig.3-10
See Fig.3-10
Key No.33
Key No.33
88
88
89
90
92
93
93
96
95
95
94
91
91
100
100
100
100
101
101
155
155
154
154
153
153
152-1
152-1
158
157
157
156
156
152
151-2
151-2
74
73
73
72
72
67
67
71-4
71-3
71-3
71-1
71-1
71-2
71-2
102
102
103
103
97
97
98
98
99
99
84
82
82
81
80
62
62
61
60
79
85
85
86
83
83
See Fig.3-10
See Fig.3-10
Key No.44
Key No.44
See Fig.3-10
See Fig.3-10
Key No.38
Key No.38
75
75
77
77
76
76
78
78
74
74
74
73
73
72
72
74
74
73
73
72
72
73
73
68
64
63
65
66
70
69
151-4
151-4
153
152
154
155
158
158
156
156
157
157
153
153
152
152
154
155
155
153
153
152-1
152-1
154
154
155
155
156
156
156
156
157
157
157
158
158
158
151-3
152
152
151-1
151-1
DETAIL "A"
DETAIL "A"
A
A
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
67
3-17
60 411 141 4305 WASHER V 6X12.5X1.6 1 FW6
61 411 141 3001 WASHER SPR 6 1 SW6
62 411 141 0703 NUT HEX 6 1 M6
63 630 049 8530 PLATE 1 759KB-01B-138
64 411 141 4107 WASHER V 5X10X1 2 FW5
65 411 141 6705 WASHER SPR 5 2 SW5
66 630 000 7732 BOLT,HEX-SCT 2 M5X8
67 630 048 3079 BLOCK 1 759KB-01B-108
68 411 141 4008 WASHER V 4X9X0.8 2 FW4
69 411 141 2905 WASHER SPR 4 2 SW4
70 630 000 7633 BOLT,HEX-SCT 2 M4X12
71 -1 630 048 3086 BLOCK 1 759KB-01B-109
71 -2 630 048 3062 BLOCK 1 759KB-01B-107
71 -3 630 048 3093 BLOCK 1 759KB-01B-110
71 -4 630 048 3055 BLOCK 1 759KB-01B-106
72 411 141 4008 WASHER V 4X9X0.8 8 FW4
73 411 141 2905 WASHER SPR 4 8 SW4
74 630 000 7633 BOLT,HEX-SCT 8 M4X12
75 630 048 3109 BLOCK 1 759KB-01B-111
76 411 141 4008 WASHER V 4X9X0.8 2 FW4
77 411 141 2905 WASHER SPR 4 2 SW4
78 630 000 7640 BOLT,HEX-SCT 2 M4X14
79 630 049 0008 PLATE 1 759KB-01B-130
80 411 141 3902 WASHER V 3X7X0.5 2 FW3
81 411 141 2806 WASHER SPR 3 2 SW3
82 630 000 7503 BOLT,HEX-SCT 2 M3X6
83 630 008 2395 BOLT,HEX 1 759KB-01H-105
84 411 141 4305 WASHER V 6X12.5X1.6 1 FW6
85 411 141 3001 WASHER SPR 6 1 SW6
86 411 141 0703 NUT HEX 6 1 M6
87 630 008 2401 BOLT,HEX 1 759KB-01H-106
88 411 141 4503 WASHER V 8X17X1.6 1 FW8
89 411 141 3100 WASHER SPR 8 1 SW8
90 411 141 0901 NUT HEX 8 1 M8
91 630 051 6586 BRACKET 1 759KB-01B-129
92 630 000 0252 SENSOR,PHOTO 1 PHS37 759KB-01H-010
93 630 000 0269 SENSOR,PHOTO(CONNECTOR) 1 759KB-01H-012
94 411 088 9005 WASHER F 3X6X0.5 2 FWS3 F
95 411 086 4408 WASHER SPR 3 2 SW3 F
96 411 040 6202 SCR PAN 3X10 2 M3X10 PAN
97 411 141 3902 WASHER V 3X7X0.5 2 FW3
98 411 141 2806 WASHER SPR 3 2 SW3
99 630 000 7510 BOLT,HEX-SCT 2 M3X8
100 630 003 4271 GREASE NIPPLE 3 759KB-01H-022
101 630 001 0244 WASHER 4 759KB-01H-018
102 411 141 3100 WASHER SPR 8 4 SW8
103 630 000 8043 BOLT,HEX-SCT 4 M8X35
151 -1 630 057 4050 BRACKET 1 759KB-01B-128
151 -2 630 057 4043 BRACKET 1 759KB-01B-127
151 -3 630 051 6708 BRACKET 1 759KB-01B-132
