P-0227-001 - 第75页
MODEL TCM-3200J 0102-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 73 3-19 1 630 055 1969 COVER 1 759K--01B-086 2 630 052 3676 COVER 1 759K--01B-089 3 630 052 3683 COVER 1 759K--01B-090 4 630 052 3690 COVER 1 759…
MODEL TCM-3200J
0102-001
72
ヘッド駆動部 HEAD DRIVING SECTION

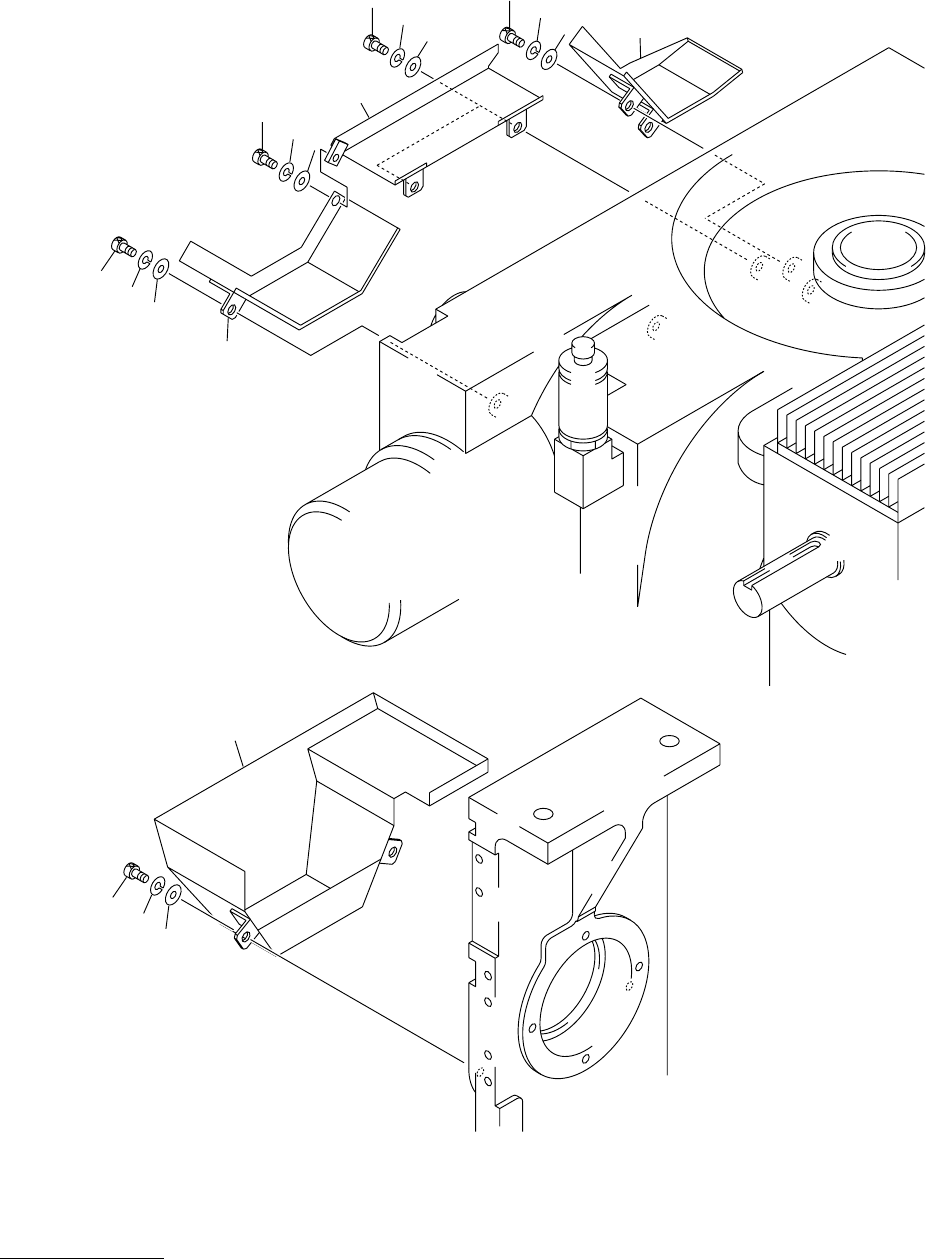

Fig. 3-19 ベルトカバー Belt Cover
7
6
5
4
3
2
1
7
6
5
7
6
5
7
6
5
7
6
5
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
73
3-19
1 630 055 1969 COVER 1 759K--01B-086
2 630 052 3676 COVER 1 759K--01B-089
3 630 052 3683 COVER 1 759K--01B-090
4 630 052 3690 COVER 1 759K--01B-091
5 411 141 4107 WASHER V 5X10X1 8 FW5
6 411 141 6705 WASHER SPR 5 8 SW5
7 630 000 7756 BOLT,HEX-SCT 8 M5X12
MODEL TCM-3200J
0102-001
74
ヘッド駆動部 HEAD DRIVING SECTION

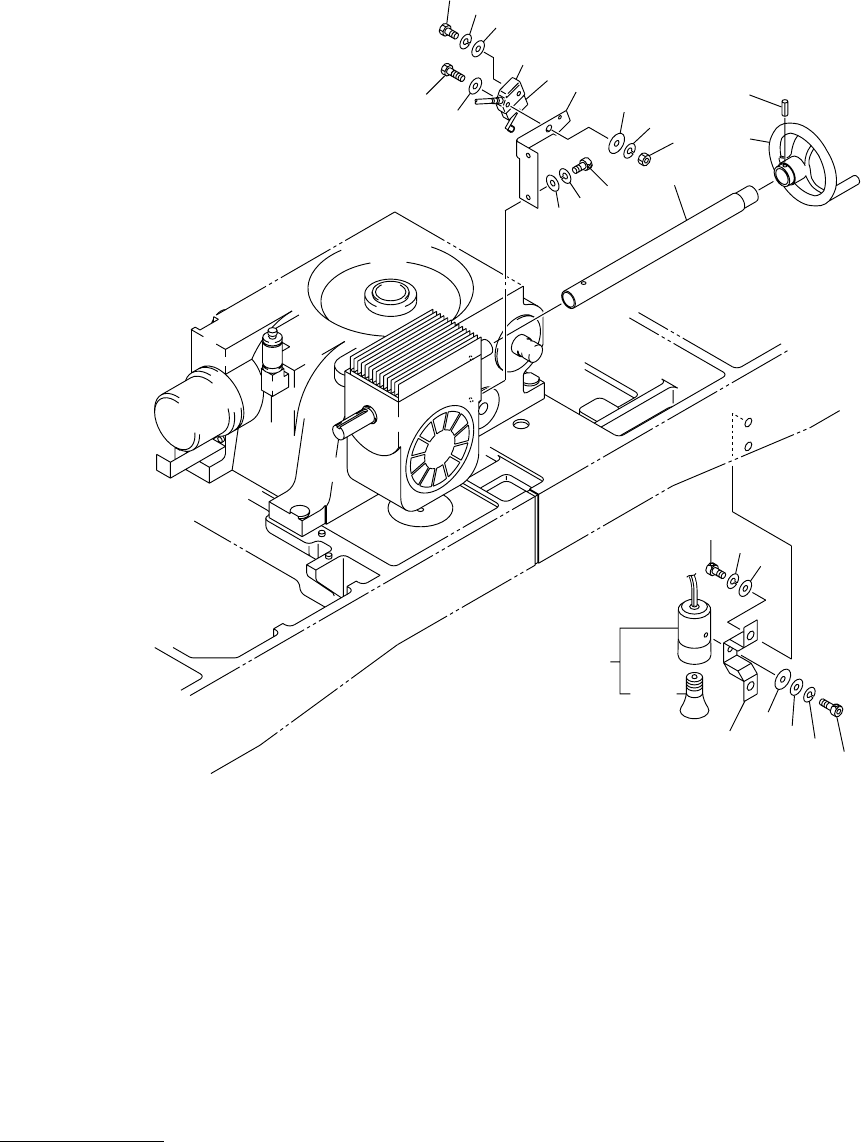

Fig. 3-20
手回しハンドル、スポットライト
Hand Wheel, Spotlight
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
21
21
22
22
23
23
24
24
25
26
27
27
28
29
29
22-1
