MODEL TCM-3200J 0102-001 76 中間ベース部 MIDDLE BASE SECTION Fig. 4-1 中間ベース Middle Base 11 12 12 13 13 14 14 16 21 22 23 17 17 18 18 19 19 20 20 21 22 23 24 25 26 27 30 29 28 31 32 34 34 35 35 51 55 55 56 Fig.4-1 TCM-3200J See…
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
75
3-20
1 630 038 8176 BRACKET 1 759B--01B-022
2 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
3 411 141 3001 WASHER SPR 6 2 SW6
4 630 000 7886 BOLT,HEX-SCT 2 M6X16
5 630 000 3345 SWITCH,MICRO 1 LS1 759B--01H-028
6 630 000 0375 ACCESSORY,SW 1 759B--01H-029
7 411 119 2104 WASHER V 4X9X0.8 1 FW4 F
8 411 008 1706 WASHER SPR 4 1 SW4 F
9 630 000 8609 BOLT,HEX 1 M4X30 HEX
10 411 119 2104 WASHER V 4X9X0.8 1 FW4 F
11 630 000 8616 BOLT,HEX 1 M4X35 HEX
12 630 001 0213 WASHER 1 BW4
13 411 008 1706 WASHER SPR 4 1 SW4 F
14 411 054 8506 NUT HEX 4 1 M4 F
15 630 048 6612 SHAFT 1 759B--01B-023
16 630 048 6629 HANDLE 1 759B--01B-024
17 630 001 0381 SPRING PIN 1
21 630 003 6527 MECH PARTS(RUBBER DAMPER) 1 759L--01H-063
22 630 000 5271 LIGHTING UNIT 1 759L--01H-062
22 -1 630 005 4286 LAMP 1 WL2
23 411 141 4107 WASHER V 5X10X1 1 FW5
24 411 141 4008 WASHER V 4X9X0.8 1 FW4
25 411 141 2905 WASHER SPR 4 1 SW4
26 630 000 7633 BOLT,HEX-SCT 1 M4X12
27 411 141 4107 WASHER V 5X10X1 2 FW5
28 411 141 6705 WASHER SPR 5 2 SW5
29 630 000 7756 BOLT,HEX-SCT 2 M5X12
MODEL TCM-3200J
0102-001
76

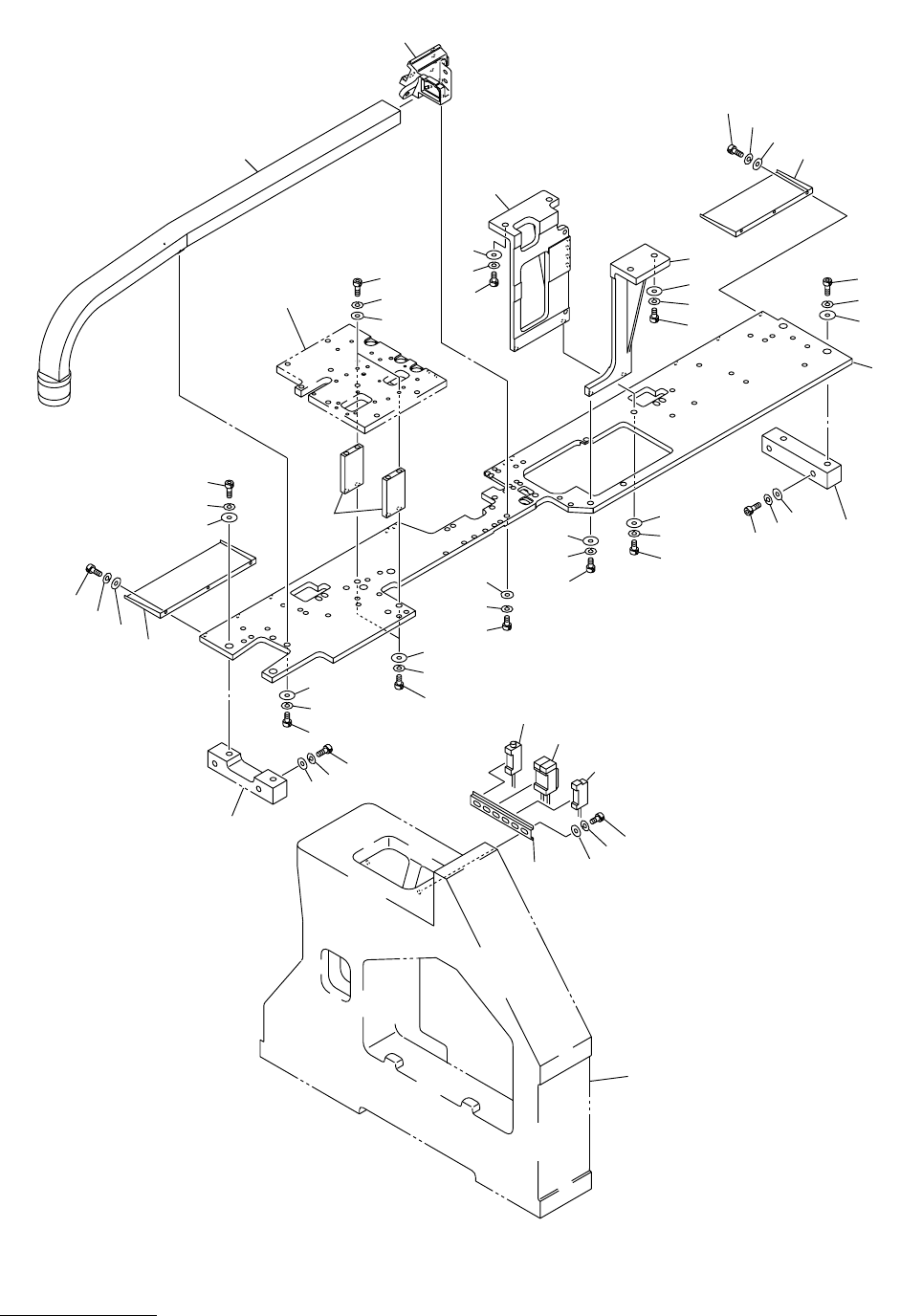

中間ベース部 MIDDLE BASE SECTION
Fig. 4-1 中間ベース Middle Base
11
12
12
13
13
14
14
16
21
22
23
17
17
18
18
19
19
20
20
21
22
23
24
25
26
27
30
29
28
31
32
34
34
35
35
51
55
55
56
Fig.4-1
TCM-3200J
See Fig.3-13
See Fig.3-13
Key No.29
Key No.29
See Fig.1-1
See Fig.1-1
Key No.11
Key No.11
18
18
19
19
20
12
13
14
65
65
64
64
63
63
61
61
65
64
63
62
36
36
37
37
38
38
5
4
3
5
4
3
57
57
2
33
33
1
52
53
54
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
77
4-1
1 630 049 2309 STAY 1 759L--01B-015
2 630 049 2316 STAY 1 759L--01B-016
3 630 001 0251 WASHER 4 759L--01H-073
4 411 141 3209 WASHER SPR 10 4 SW10
5 630 000 8173 BOLT,HEX-SCT 4 M10X60
11 630 091 2418 BASE 1 759E--01B-001
12 630 001 0251 WASHER 4 759E--01H-009
13 411 141 3209 WASHER SPR 10 4 SW10
14 630 000 8142 BOLT,HEX-SCT 4 M10X35
16 630 052 1061 SUPPORT 1 759E--01B-023
17 630 048 7688 SUPPORT 1 759E--01B-024
18 630 001 0237 WASHER 4 759E--01H-010
19 411 141 3001 WASHER SPR 6 4 SW6
20 630 000 7916 BOLT,HEX-SCT 4 M6X30
21 630 001 0220 WASHER 4 759E--01H-008
22 411 141 6705 WASHER SPR 5 4 SW5
23 630 000 7763 BOLT,HEX-SCT 4 M5X16
24 630 048 7701 PLATE 2 759E--01B-022
25 630 001 0220 WASHER 4 759E--01H-008
26 411 141 6705 WASHER SPR 5 4 SW5
27 630 000 7763 BOLT,HEX-SCT 4 M5X16
28 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
29 411 141 3001 WASHER SPR 6 4 SW6
30 630 000 7909 BOLT,HEX-SCT 4 M6X25
31 630 055 0009 BLOCK 1 759EB-01B-001
32 630 091 7369 PIPE 1 759EB-01B-016
33 411 141 4107 WASHER V 5X10X1 4 FW5
34 411 141 6705 WASHER SPR 5 4 SW5
35 630 000 7763 BOLT,HEX-SCT 4 M5X16
36 630 001 0220 WASHER 2 BW5
37 411 141 6705 WASHER SPR 5 2 SW5
38 630 000 7763 BOLT,HEX-SCT 2 M5X16
51 630 037 8917 RAIL,WIRING 1 759L--01H-061
52 411 141 4008 WASHER V 4X9X0.8 2 FW4
53 411 141 2905 WASHER SPR 4 2 SW4
54 630 000 7619 BOLT,HEX-SCT 2 M4X8
55 630 048 9835 SENSOR,PELEC 1 PHS19,20,21,22 Amp 759E--01H-004
56 630 037 5534 SENSOR,PELEC 1 PHS42 Amp 759L--01H-045
57 630 056 7014 SENSOR,PROXIMITY 1 PXS21 Amp 759E--01H-014
61 630 091 7505 PLATE 1 759E--01B-054
62 630 091 7512 PLATE 1 759E--01B-055
63 411 141 4107 WASHER V 5X10X1 6 FW5
64 411 141 6705 WASHER SPR 5 6 SW5
65 630 000 7749 BOLT,HEX-SCT 6 M5X10
