P-0227-001 - 第79页
MODEL TCM-3200J 0102-001 Key No . P AR T No. P AR T NAME Q’ty REMARKS NOTE 77 4-1 1 630 049 2309 S T A Y 1 759L--01B-015 2 630 049 2316 S T A Y 1 759L--01B-016 3 630 001 0251 WASHER 4 7 5 9L--01H-073 4 411 141 32 09 WASH…
MODEL TCM-3200J
0102-001
76
中間ベース部 MIDDLE BASE SECTION

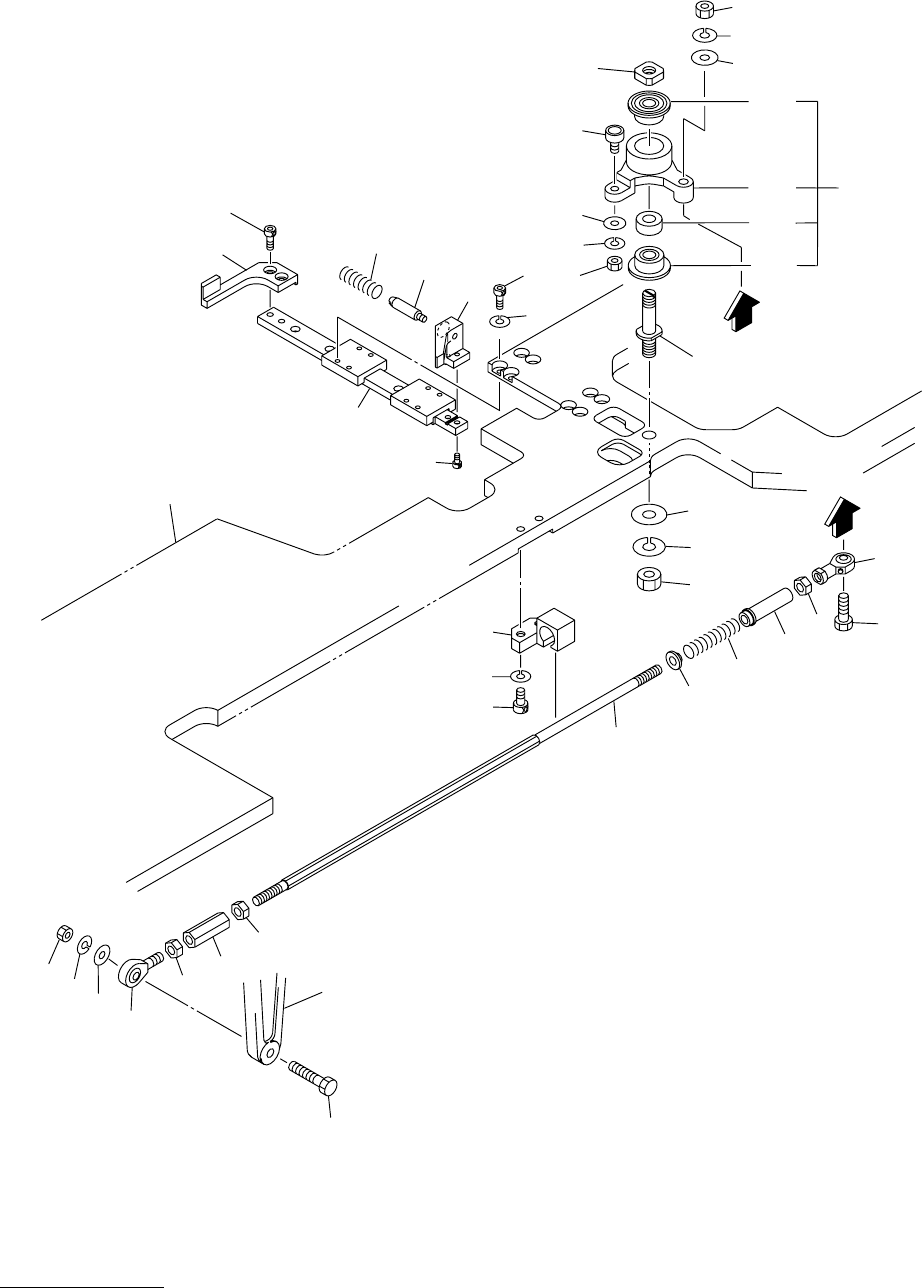

Fig. 4-1 中間ベース Middle Base
11
12
12
13
13
14
14
16
21
22
23
17
17
18
18
19
19
20
20
21
22
23
24
25
26
27
30
29
28
31
32
34
34
35
35
51
55
55
56
Fig.4-1
TCM-3200J
See Fig.3-13
See Fig.3-13
Key No.29
Key No.29
See Fig.1-1
See Fig.1-1
Key No.11
Key No.11
18
18
19
19
20
12
13
14
65
65
64
64
63
63
61
61
65
64
63
62
36
36
37
37
38
38
5
4
3
5
4
3
57
57
2
33
33
1
52
53
54
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
77
4-1
1 630 049 2309 STAY 1 759L--01B-015
2 630 049 2316 STAY 1 759L--01B-016
3 630 001 0251 WASHER 4 759L--01H-073
4 411 141 3209 WASHER SPR 10 4 SW10
5 630 000 8173 BOLT,HEX-SCT 4 M10X60
11 630 091 2418 BASE 1 759E--01B-001
12 630 001 0251 WASHER 4 759E--01H-009
13 411 141 3209 WASHER SPR 10 4 SW10
14 630 000 8142 BOLT,HEX-SCT 4 M10X35
16 630 052 1061 SUPPORT 1 759E--01B-023
17 630 048 7688 SUPPORT 1 759E--01B-024
18 630 001 0237 WASHER 4 759E--01H-010
19 411 141 3001 WASHER SPR 6 4 SW6
20 630 000 7916 BOLT,HEX-SCT 4 M6X30
21 630 001 0220 WASHER 4 759E--01H-008
22 411 141 6705 WASHER SPR 5 4 SW5
23 630 000 7763 BOLT,HEX-SCT 4 M5X16
24 630 048 7701 PLATE 2 759E--01B-022
25 630 001 0220 WASHER 4 759E--01H-008
26 411 141 6705 WASHER SPR 5 4 SW5
27 630 000 7763 BOLT,HEX-SCT 4 M5X16
28 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
29 411 141 3001 WASHER SPR 6 4 SW6
30 630 000 7909 BOLT,HEX-SCT 4 M6X25
31 630 055 0009 BLOCK 1 759EB-01B-001
32 630 091 7369 PIPE 1 759EB-01B-016
33 411 141 4107 WASHER V 5X10X1 4 FW5
34 411 141 6705 WASHER SPR 5 4 SW5
35 630 000 7763 BOLT,HEX-SCT 4 M5X16
36 630 001 0220 WASHER 2 BW5
37 411 141 6705 WASHER SPR 5 2 SW5
38 630 000 7763 BOLT,HEX-SCT 2 M5X16
51 630 037 8917 RAIL,WIRING 1 759L--01H-061
52 411 141 4008 WASHER V 4X9X0.8 2 FW4
53 411 141 2905 WASHER SPR 4 2 SW4
54 630 000 7619 BOLT,HEX-SCT 2 M4X8
55 630 048 9835 SENSOR,PELEC 1 PHS19,20,21,22 Amp 759E--01H-004
56 630 037 5534 SENSOR,PELEC 1 PHS42 Amp 759L--01H-045
57 630 056 7014 SENSOR,PROXIMITY 1 PXS21 Amp 759E--01H-014
61 630 091 7505 PLATE 1 759E--01B-054
62 630 091 7512 PLATE 1 759E--01B-055
63 411 141 4107 WASHER V 5X10X1 6 FW5
64 411 141 6705 WASHER SPR 5 6 SW5
65 630 000 7749 BOLT,HEX-SCT 6 M5X10
