MODEL TCM-3200J 0102-001 82 中間ベース部 MIDDLE BASE SECTION Fig. 4-4 ノズル収納、選択部 Nozzle Storager, Nozzle Level Selector 1 46-1 46-1 46-3 46-3 46-3 46-3 46-2 46-2 46-5 46-5 56 56 64 64 67 67 68 68 60 60 69 69 70 47 47 50 49 48 1…
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
81
4-3
1 630 002 3169 SPRING,COMP 1 759EB-01H-039
2 630 033 6450 PIN,GUIDE 1 759EB-01H-038
3 630 002 2315 SPRING,COMP 2 759EB-01H-010
4 630 051 8528 PLATE 1 759EB-01H-001
6 630 048 4946 PIN,HINGE 1 759EB-01B-006
7 411 141 4701 WASHER V 10X21X2 1 FW10
8 411 141 3209 WASHER SPR 10 1 SW10
9 411 141 1106 NUT HEX 10 1 M10
10 630 037 2526 BEARING,PARTS(SHIM RING) 1 T0.1 759EB-01H-004
10 630 037 2533 BEARING,PARTS(SHIM RING) 1 T0.3 759EB-01H-005
10 630 037 2540 BEARING,PARTS(SHIM RING) 1 T0.5 759EB-01H-006
10 -1 630 076 0484 RING 5 T0.02 759EB-01H-042
11 630 048 4922 LEVER 1 759EB-01B-004
12 630 001 1289 BEARING,RADIAL 1 759EB-01H-003
13 411 051 1708 SCR TRS 4X6 2 M4X6 TRS
14 630 005 0875 BEARING,PARTS(LOCK NUT) 1 759EB-01H-007
16 630 073 8841 PLATE 1 759EB-01B-005
17 411 141 6705 WASHER SPR 5 2 SW5
18 630 000 7732 BOLT,HEX-SCT 2 M5X8
19 630 070 9384 PLATE 1 759EB-01B-002
20 411 141 4107 WASHER V 5X10X1 2 FW5
21 411 141 6705 WASHER SPR 5 2 SW5
22 630 000 7763 BOLT,HEX-SCT 2 M5X16
23 630 048 4915 PLATE 1 759EB-01B-003
24 411 141 6705 WASHER SPR 5 2 SW5
25 630 000 7756 BOLT,HEX-SCT 2 M5X12
26 630 048 4977 BLOCK 1 759EB-01B-009
27 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
28 411 141 3001 WASHER SPR 6 2 SW6
29 630 000 7893 BOLT,HEX-SCT 2 M6X20
30 630 048 9309 SPRING,COMP 1 759EB-01H-008
32 411 141 0901 NUT HEX 8 1 M8
33 630 056 7700 ROD 1 759EB-01B-007
34 630 000 9767 NUT,HEX 1 M8-L
35 630 055 3598 ROD END 1 759EB-01H-011
36 630 048 4960 PIN,HINGE 1 759EB-01B-008
37 411 141 4503 WASHER V 8X17X1.6 1 FW8
38 411 141 3100 WASHER SPR 8 1 SW8
39 411 141 1007 NUT HEX 8 1 M8-3
MODEL TCM-3200J
0102-001
82

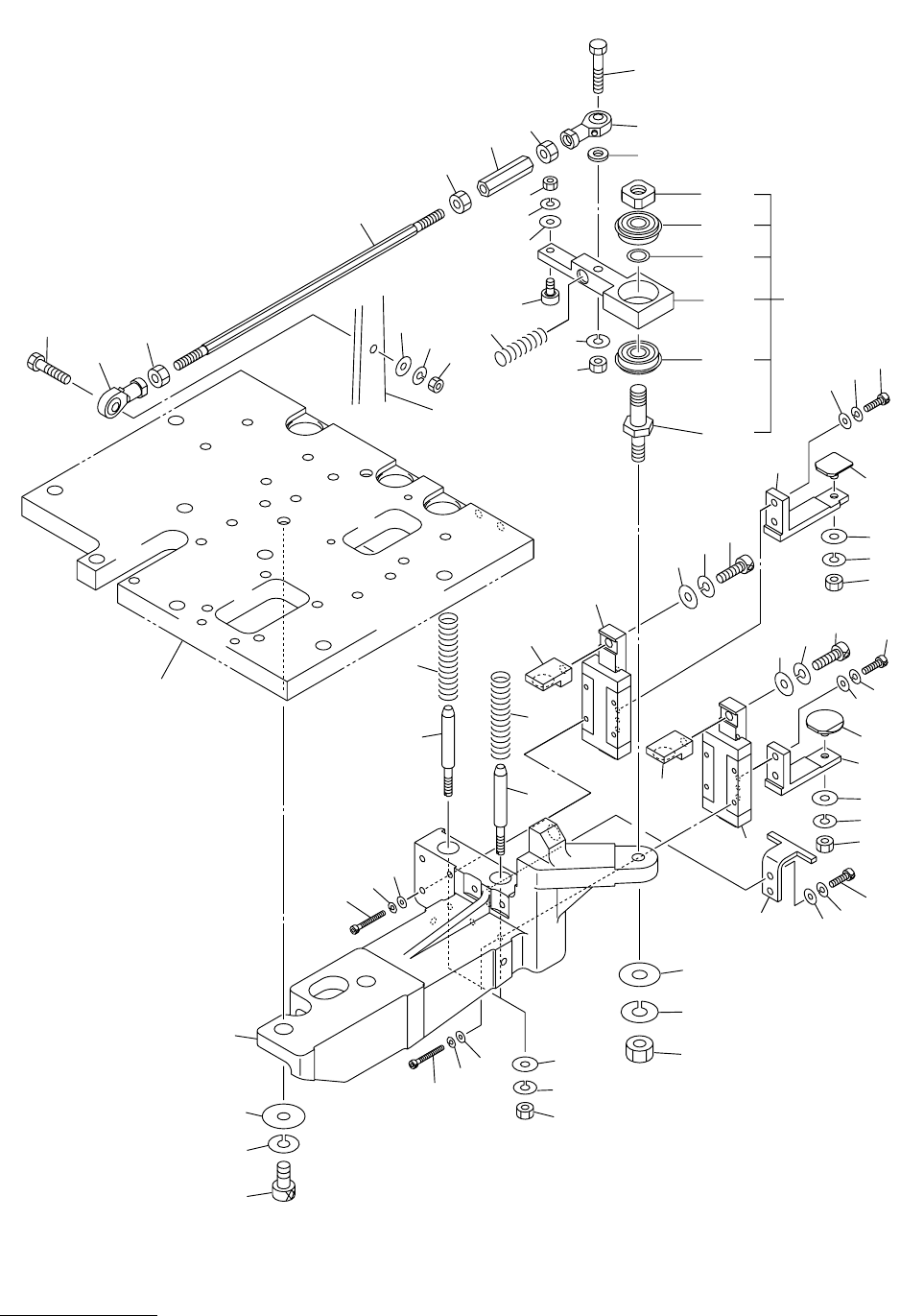

中間ベース部 MIDDLE BASE SECTION
Fig. 4-4 ノズル収納、選択部
Nozzle Storager, Nozzle Level Selector
1
46-1
46-1
46-3
46-3
46-3
46-3
46-2
46-2
46-5
46-5
56
56
64
64
67
67
68
68
60
60
69
69
70
47
47
50
49
48
11
26
26
27
27
16
17
31
31
32
32
21
22
23
See Fig.3-13
See Fig.3-13
Key No.29
Key No.29
46-4
46-4
12
12
36
36
37
37
38
38
45
44
44
43
43
45
45
44
44
43
28
28
29
30
30
13
14
15
15
6-1
6-1
2
6
2
57
57
58
58
59
59
63
63
62
61
See Fig.3-13
See Fig.3-13
Key No.71
Key No.71
18
19
20
33
33
34
34
35
35
42
42
41
41
40
39
51
52
53
3
4
5
65
66
66
71
71
72
72
73
73
74
74
46
Fig.4-4
TCM-3200J
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
83
4-4
1 630 070 4891 BASE 1 759EB-01B-017
2 630 052 1009 PIN,GUIDE 2 759EB-01B-028
3 411 141 4107 WASHER V 5X10X1 2 FW5
4 411 141 6705 WASHER SPR 5 2 SW5
5 411 141 0505 NUT HEX 5 2 M5
6 630 058 3755 SPRING,COMP 1 759EB-01B-106
6 -1 630 002 4203 SPRING,COMP 2 759EB-01H-033
11 630 048 9262 GUIDE 1 759EB-01H-031
12 630 048 8432 BLOCK 1 759EB-01B-027
13 411 141 4305 WASHER V 6X12.5X1.6 1 FW6
14 411 141 3001 WASHER SPR 6 1 SW6
15 630 000 7893 BOLT,HEX-SCT 1 M6X20
16 630 048 8395 SUPPORT 1 759EB-01B-023
17 630 048 8418 PLATE 1 759EB-01B-025
18 411 141 4107 WASHER V 5X10X1 1 FW5
19 411 141 6705 WASHER SPR 5 1 SW5
20 411 141 0505 NUT HEX 5 1 M5
21 411 141 4008 WASHER V 4X9X0.8 2 FW4
22 411 141 2905 WASHER SPR 4 2 SW4
23 630 000 7640 BOLT,HEX-SCT 2 M4X14
26 630 048 9279 GUIDE 1 759EB-01H-032
27 630 048 8432 BLOCK 1 759EB-01B-027
28 411 141 4305 WASHER V 6X12.5X1.6 1 FW6
29 411 141 3001 WASHER SPR 6 1 SW6
30 630 000 7893 BOLT,HEX-SCT 1 M6X20
31 630 048 8401 SUPPORT 1 759EB-01B-024
32 630 048 8425 PLATE 1 759EB-01B-026
33 411 141 4107 WASHER V 5X10X1 1 FW5
34 411 141 6705 WASHER SPR 5 1 SW5
35 411 141 0505 NUT HEX 5 1 M5
36 411 141 4008 WASHER V 4X9X0.8 2 FW4
37 411 141 2905 WASHER SPR 4 2 SW4
38 630 000 7640 BOLT,HEX-SCT 2 M4X14
39 630 052 0385 BRACKET 1 759EB-01B-037
40 411 141 4008 WASHER V 4X9X0.8 2 FW4
41 411 141 2905 WASHER SPR 4 2 SW4
42 630 000 7640 BOLT,HEX-SCT 2 M4X14
43 411 141 3001 WASHER SPR 6 2 SW6
43 411 141 3902 WASHER V 3X7X0.5 8 FW3
44 411 141 2806 WASHER SPR 3 8 SW3
45 630 000 7572 BOLT,HEX-SCT 8 M3X25
46 630 060 5860 ASSY,LEVER 1
46 -1 630 048 8364 LEVER 1 759EB-01B-020
46 -2 630 048 9347 WASHER 1 759EB-01H-029
46 -3 630 001 1425 BEARING,RADIAL 2 759EB-01H-030
46 -4 630 048 8357 PIN,HINGE 1 759EB-01B-019
46 -5 630 005 0868 BEARING,PARTS(LOCK NUT) 1 759EB-01H-016
47 630 001 2170 CAM FOLLOWER 1 759EB-01H-017
48 411 141 4107 WASHER V 5X10X1 1 FW5
49 411 141 6705 WASHER SPR 5 1 SW5
