MODEL TCM-3200J 0102-001 94 中間ベース部 MIDDLE BASE SECTION Fig. 4-8 カセット装着ミス検出部 Feeder Miss-setting Detector 45 46 47 42 43 44 41 6 5 4 3 32 32 33 34 34 31 31 10 9 8 30 30 29 28 28 1 2 See Fig.3-12 See Fig.3-12 Key No.21 Key…
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
93
4-7
1 630 091 2425 SUPPORT 1 759E--01B-017
2 630 001 0220 WASHER 2 759E--01H-008
3 411 141 6705 WASHER SPR 5 2 SW5
4 630 000 7770 BOLT,HEX-SCT 2 M5X20
5 630 048 7664 SUPPORT 1 759E--01B-018
6 630 001 0220 WASHER 2 759E--01H-008
7 411 141 6705 WASHER SPR 5 2 SW5
8 630 000 7770 BOLT,HEX-SCT 2 M5X20
9 630 048 7640 SUPPORT 1 759E--01B-016
10 411 141 4107 WASHER V 5X10X1 2 FW5
11 411 141 6705 WASHER SPR 5 2 SW5
12 630 000 7770 BOLT,HEX-SCT 2 M5X20
21 630 091 7475 BRACKET 2 759E--01B-030
22 630 000 0290 SENSOR,PROXIMITY 2 PXS17, PXS18 759E--01H-002
23 411 141 3902 WASHER V 3X7X0.5 4 FW3
24 411 141 2806 WASHER SPR 3 4 SW3
25 630 000 7527 BOLT,HEX-SCT 4 M3X10
26 411 140 9905 NUT HEX 3 4 M3
27 630 001 0213 WASHER 4 759E--01H-007
28 411 141 2905 WASHER SPR 4 4 SW4
29 630 000 7640 BOLT,HEX-SCT 4 M4X14
30 630 040 4609 PLATE 1 759E--01B-031
30 -1 630 091 7482 PLATE 1 749E--01B-053
31 630 040 4593 PLATE 2 759E--01B-032
32 411 141 3902 WASHER V 3X7X0.5 2 FW3
33 411 000 9304 RING E 2 2 759E--01H-006
34 411 141 3902 WASHER V 3X7X0.5 2 FW3
35 411 141 0109 NUT HEX 3 4 M3-3
36 630 062 8647 SHEET 4 759E--01B-033
37 411 141 3902 WASHER V 3X7X0.5 4 FW3
38 630 000 7558 BOLT,HEX-SCT 4 M3X16
39 411 141 3902 WASHER V 3X7X0.5 4 FW3
40 411 140 9905 NUT HEX 3 8 M3
41 630 001 0213 WASHER 4 759E--01H-007
42 411 141 2905 WASHER SPR 4 4 SW4
43 630 000 7640 BOLT,HEX-SCT 4 M4X14
46 630 000 7510 BOLT,HEX-SCT 4 M3X8
47 411 141 3902 WASHER V 3X7X0.5 4 FW3
48 411 141 0109 NUT HEX 3 8 M3-3
MODEL TCM-3200J
0102-001
94

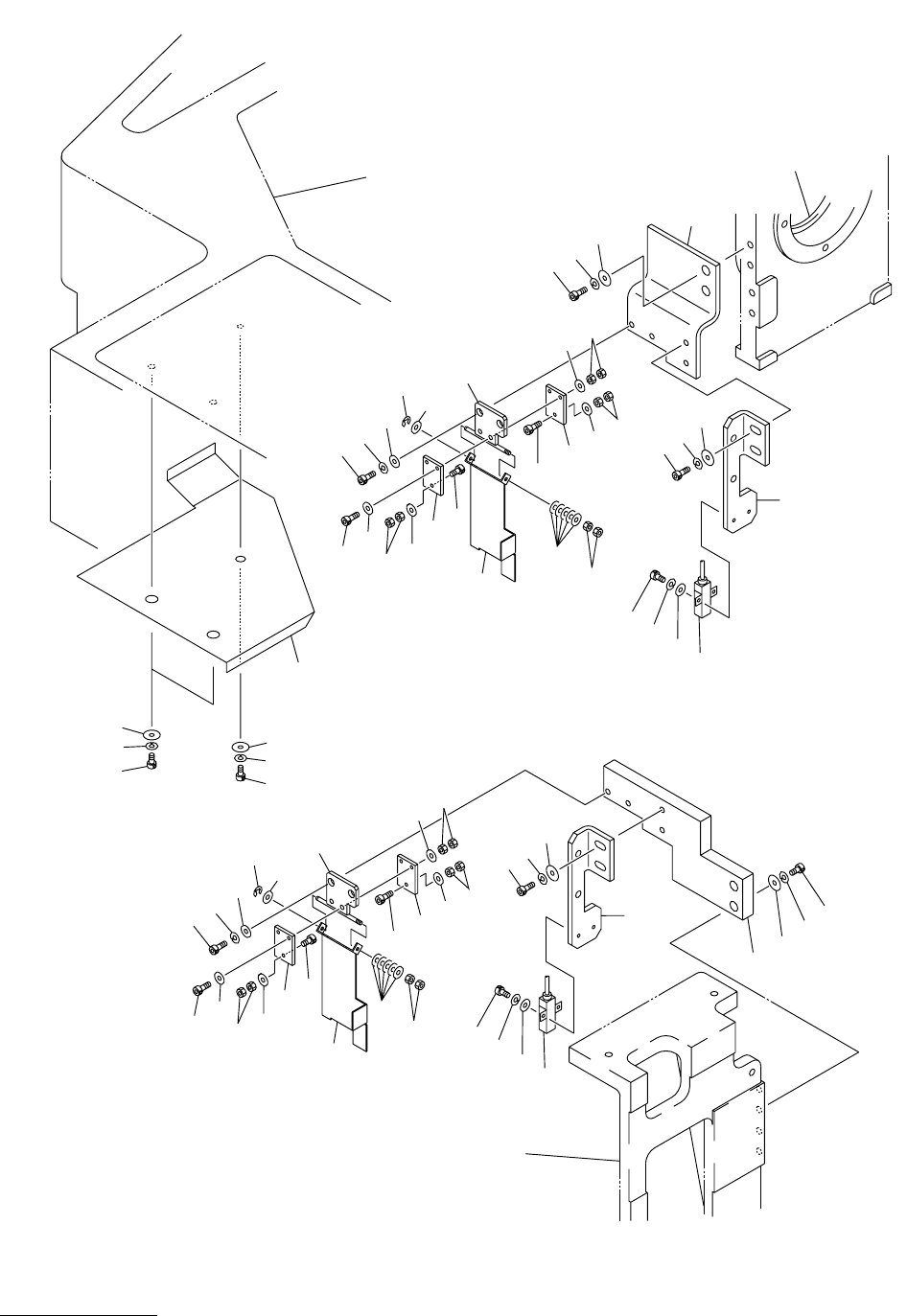

中間ベース部 MIDDLE BASE SECTION
Fig. 4-8 カセット装着ミス検出部 Feeder Miss-setting Detector
45
46
47
42
43
44
41
6
5
4
3
32
32
33
34
34
31
31
10
9
8
30
30
29
28
28
1
2
See Fig.3-12
See Fig.3-12
Key No.21
Key No.21
See Fig.1-1
See Fig.1-1
Key No.13
Key No.13
Fig.4-8
TCM-3200J
See Fig.4-1
See Fig.4-1
Key No.16
Key No.16
19
19
24
20
20
21
22
18
18
14
13
15
15
16
18
18
12
12
11
11
17
19
20
23
17
17
27
27
26
26
25
25
19
24
24
20
20
21
22
18
18
14
14
13
15
15
16
16
18
12
11
11
17
19
19
20
20
23
23
17
17
27
26
26
25
6
5
4
3
10
10
9
8
2
MODEL TCM-3200J
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
95
4-8
1 630 091 7437 BRACKET 1 759L--01B-037
2 630 091 7444 BRACKET 2 759L--01B-038
3 630 000 0290 SENSOR,PROXIMITY 2 PXS19, PXS20 759L--01H-080
4 411 141 3902 WASHER V 3X7X0.5 4 FW3
5 411 141 2806 WASHER SPR 3 4 SW3
6 630 000 7527 BOLT,HEX-SCT 4 M3X10
8 630 001 0220 WASHER 4 BW5
9 411 141 6705 WASHER SPR 5 4 SW5
10 630 000 7763 BOLT,HEX-SCT 4 M5X16
11 630 057 4005 PLATE 2 759L--01B-036
12 630 091 7451 PLATE 2 759L--01B-040
13 411 141 3902 WASHER V 3X7X0.5 2 FW3
14 411 000 9304 RING E 2 2 759L--01H-081
15 411 141 3902 WASHER V 3X7X0.5 10 FW3
16 411 141 0109 NUT HEX 3 4 M3-3
17 630 044 4971 PLATE 4 759L--01B-039
18 630 000 7510 BOLT,HEX-SCT 4 M3X8
19 411 141 3902 WASHER V 3X7X0.5 4 FW3
20 411 141 0109 NUT HEX 3 8 M3-3
21 411 141 3902 WASHER V 3X7X0.5 4 FW3
22 630 000 7558 BOLT,HEX-SCT 4 M3X16
23 411 141 3902 WASHER V 3X7X0.5 4 FW3
24 411 140 9905 NUT HEX 3 8 M3
25 411 141 4107 WASHER V 5X10X1 4 FW5
26 411 141 6705 WASHER SPR 5 4 SW5
27 630 000 7749 BOLT,HEX-SCT 4 M5X10
28 630 001 0220 WASHER 2 BW5
29 411 141 6705 WASHER SPR 5 2 SW5
30 630 000 7763 BOLT,HEX-SCT 2 M5X16
31 630 091 7499 SUPPORT 1 759E--01B-052
32 630 001 0220 WASHER 2 BW5
33 411 141 6705 WASHER SPR 5 2 SW5
34 630 000 7770 BOLT,HEX-SCT 2 M5X20
41 630 093 5257 COVER 1 759L--01B-056
42 630 001 0237 WASHER 2 BW6
43 411 141 3001 WASHER SPR 6 2 SW6
44 630 000 7879 BOLT,HEX-SCT 2 M6X12
45 630 001 0220 WASHER 1 BW5
46 411 141 6705 WASHER SPR 5 1 SW5
47 630 000 7756 BOLT,HEX-SCT 1 M5X12
