P-291-004e.pdf - 第26页
MODEL HM-G300 0801-002 KQ2S08-01S KQ2S04-M5 KQ2S06-M5 M-5P MSWTK1 AS1301F-M5-06K-X214 RJB500-SSC6-L PSE541-IM5-C2 KQ2S06-M5 KQ2S06-M5 KQL06-01S From Main Body(vaccum) From Main Body(air) See Fig. MM-3 Key No.253 See Fig.…
MODEL HM-G300
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
MM-7
621 6301348681 SWITCH,PRESSURE 3 845C-A100010-A021 4S1M0032
845C-A100020-A021
622 6301164915 PIPE FITTINGS 1 845C-A100010-A022 225F0504
845C-A100020-A022
623 6301610801 AIR LINE EQPT 1 845C-A100010-A023 225B0580
845C-A100020-A023
624 6301610825 BRACKET 1 845C-A100010-A024 211FD021
845C-A100020-A024
MM-7 list-1
MODEL HM-G300
0801-002
KQ2S08-01S
KQ2S04-M5
KQ2S06-M5
M-5P
MSWTK1
AS1301F-M5-06K-X214
RJB500-SSC6-L
PSE541-IM5-C2
KQ2S06-M5
KQ2S06-M5
KQL06-01S
From Main Body(vaccum)
From Main Body(air)
See Fig. MM-3
Key No.253
See Fig. MM-3
Key No.254
See Fig. MM-7
Key No.623
See Fig. MM-5
Key No.406
See Fig. MM-4
Key No.342
AS1301F-M5-06K-X214
AS1301F-M5-06K-X214
KQ2S04-M5
KQ2S04-M5
KQ2S06-M5
KQ2S06-M5
KQ2S06-M5
KQ2S06-M5
M-5P
KQ2U06-00
721
725
726
722
722
710
716
716
723
722
724
Y1719
Y1718

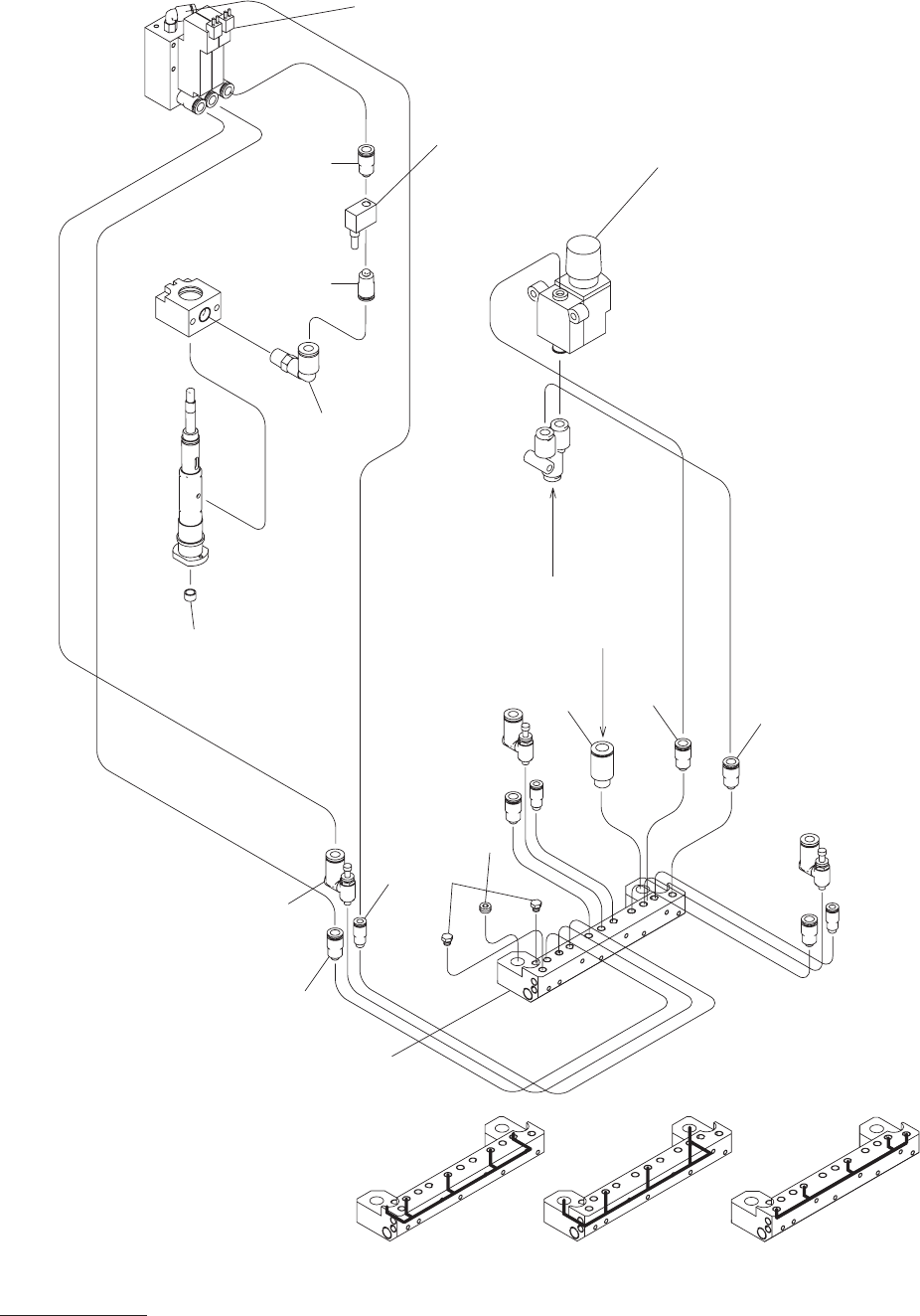

ヘッド部
HEAD SECTION
Fig. MM-8
エア配管
Air pipng
MM-8 illust-1
MODEL HM-G300
1004-004
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
MM-8
710 6300037302 PIPE FITTINGS 3 867MM-100-120 225F0025
716 6301106083 PIPE FITTINGS 6 867MM-100-126 225F0467
721 6301035611 PIPE FITTINGS 1 867MM-100-321 225F0433
722 6301106083 PIPE FITTINGS 5 867MM-100-322 225F0467
723 6300983579 PIPE FITTINGS 3 867MM-100-323 225F0409
724 6301348612 AIR LINE EQPT 3 867MM-100-324 225B0531
725 6300041002 PIPE FITTINGS 2 867MM-100-325 225F0141
726 6301362861 PIPE FITTINGS 1 867MM-100-326 225F0633
MM-8 list-1
