2-1 1 Sensor and Load Layout 5OM-1751 1305-002 Head Section Layout (Nozzle Selection Section) M32 B0502 Symbol Name Symbol Name M32 Nozzle Selection (NS) Motor B0502 Nozzle Selection Position Detection

2-10

Sensor and Load Layout

5OM-1751

1305-002

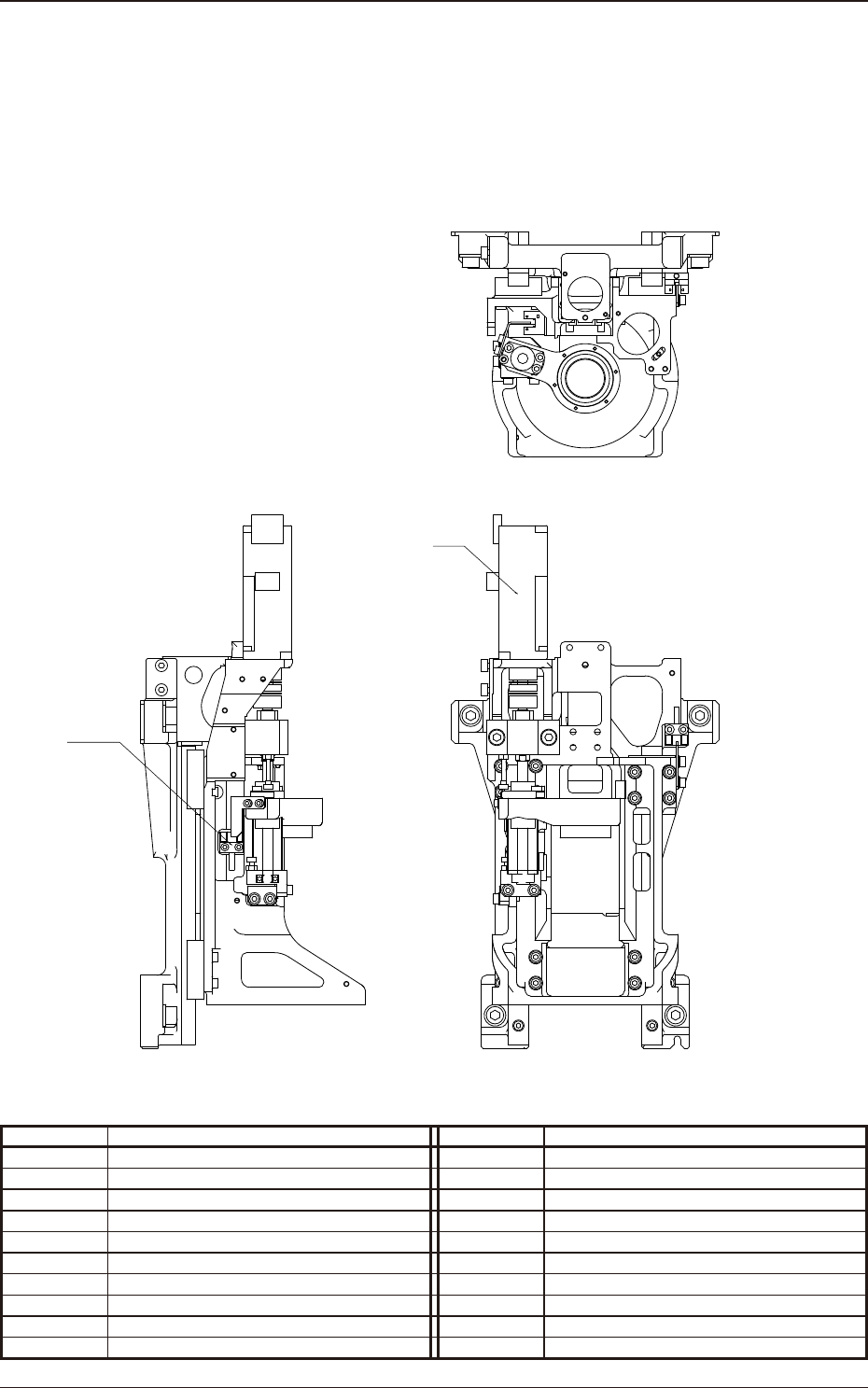

Head Section Layout (Head Rotation Section)

U37

Y0601-Y0615

U03

M31

U04

1.6x6

1.6x3

1.6x4 1.6x41.6x4 1.6x4

1.6x4

1.6x3 1.6x3

2x4

1.6x4

1.6x3

Symbol Name Symbol Name

U37 Slip Ring

M31 Head Rotation (DD) Motor

U04 Linear Measure Sensor (Light Emission)

U03 Linear Measure Sensor (Light Reception)

Y0601-Y0615 Vacuum Changeover Valve 1 to 15

2-11

Sensor and Load Layout

5OM-1751

1305-002

Head Section Layout (Nozzle Selection Section)

M32

B0502

Symbol Name Symbol Name

M32 Nozzle Selection (NS) Motor

B0502 Nozzle Selection Position Detection

2-12

Sensor and Load Layout

5OM-1751

1305-002

Head Section Layout (Nozzle U/D Section)

B0503

M34

Symbol Name Symbol Name

M34 Nozzle U/D (NL) Motor

B0503 Interlock Sensor
