2-14 Sensor and Load Layout 5OM-1751 1305-002 Nozzle Stocker Section Layout B_CMP1 B_DWN1 B_SH1 Y_OP1 Y_SH Symbol Name Symbol Name Y_SH Nozzle Stocker 2 Shutter Open/Close 1 Y_UP1 High-speed Nozzle Stocker 2 Ascending 1 …
2-13
Sensor and Load Layout
5OM-1751
1305-002

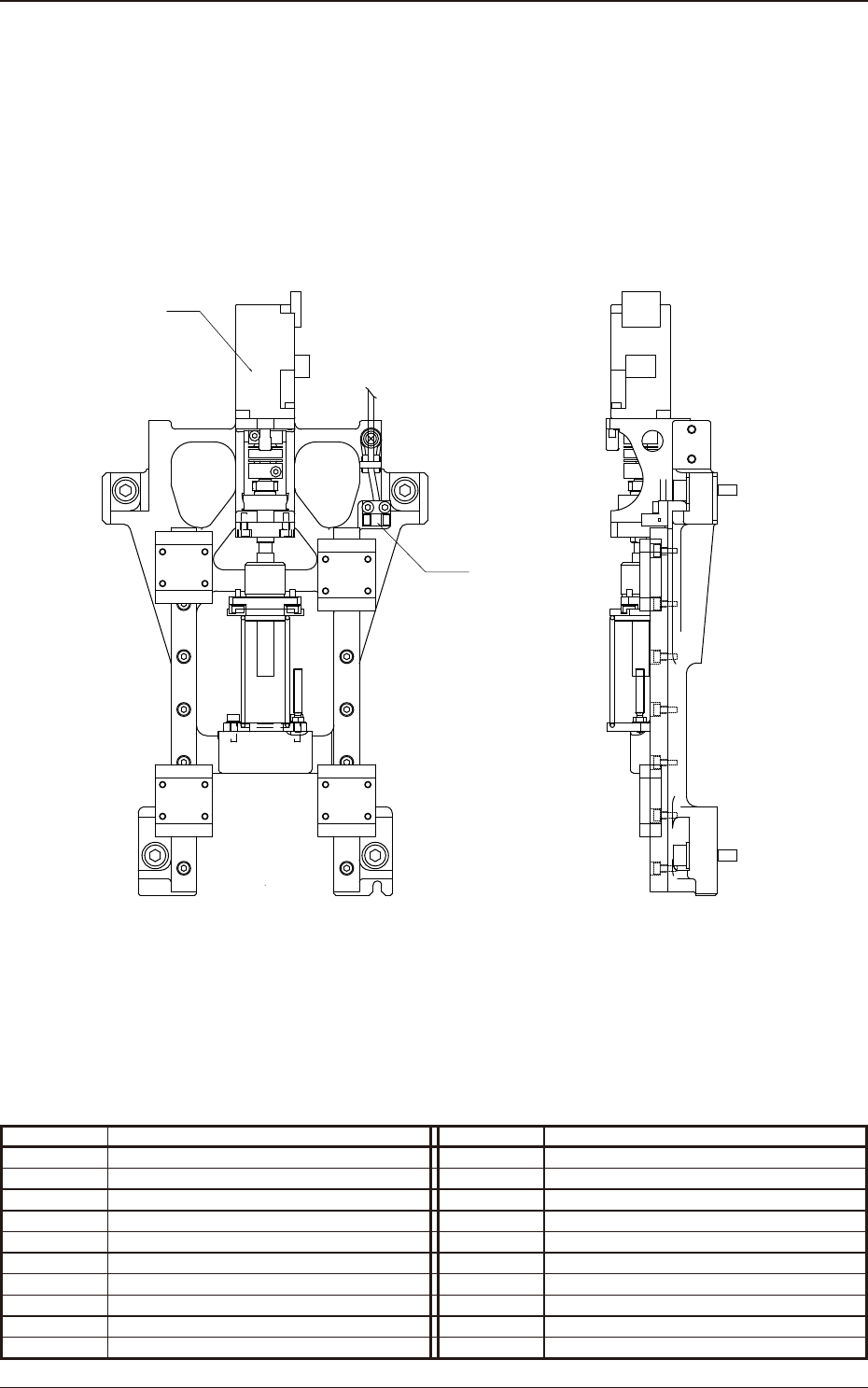

Head Section Layout (Head U/D Section)
M33
B0711
Symbol Name Symbol Name
M33 Head U/D (HL) Motor
B0711 Head U/D (-) Limit
2-14
Sensor and Load Layout
5OM-1751
1305-002

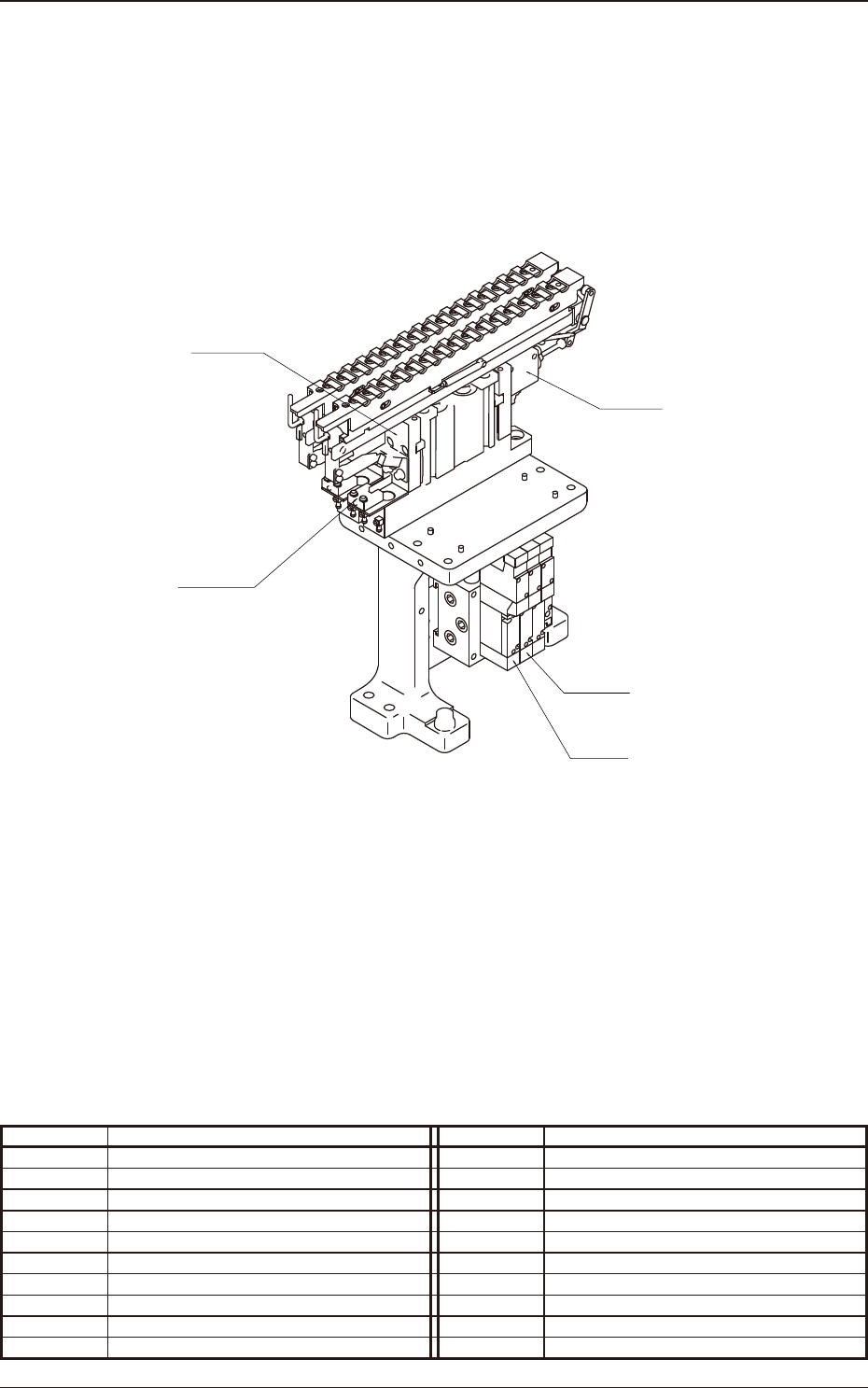

Nozzle Stocker Section Layout
B_CMP1
B_DWN1
B_SH1
Y_OP1
Y_SH
Symbol Name Symbol Name
Y_SH Nozzle Stocker 2 Shutter Open/Close 1
Y_UP1 High-speed Nozzle Stocker 2 Ascending 1
B_DWN1
High-speed Nozzle Stocker 2 Unit Lower Limit Detection 1
B_SH1
High-speed Nozzle Stocker 2 Shutter Close Check 1
B_CMP1 High-speed Nozzle Stocker 2 Clamp Check 1
2-15
Sensor and Load Layout
5OM-1751
1305-002
Conveyor Section Layout (Outside)
6
B11002
B21002
B11004
B0830
B0831
B21003B11003
M44
M42 M43
B0832
B0833
M41
Symbol Name Symbol Name
M41 NL-L B11002 Left PCB Detection Sensor
M42 NA-L B21002 Central PCB Detection Sensor
M43 NR-L B11003 Left PCB Fiber Sensor
M44 NA-W B21003 Right PCB Fiber Sensor
B11004 Right PCB Detection Sensor
B0830 Left PCB Stopper Lower Limit Detection
B0831 Left PCB Stopper Upper Limit Detection
B0832 Right PCB Stopper Lower Limit Detection
B0833 Right PCB Stopper Upper Limit Detection
