6 Gantries 6.5 MGCU Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 145 Fig.186: Overview of MGCUs on X4 S and X4i S
6 Gantries
6.5 MGCU
144 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
Fig.185: Overview of MGCUs on X3 S
6 Gantries
6.5 MGCU
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 145
Fig.186: Overview of MGCUs on X4 S and X4i S
6 Gantries
6.6 MHCU, boards and camera
146 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
6.6 MHCU, boards and camera
6.6.1 Replacing the MHCU, basic and head adapter
Parts, equipment and tools
The following spare parts can be replaced:
●
MHCU assembly, compatible [03090990Sxx] from FS04
●
PCB / X base adapter C&P [03045647Sxx] from FS08
●
Module / X base adapter TWIN [03062201Sxx]
Head Adapter Number of MHCU, base adapters
CP20A
CPP
Module X base adapter C&P
[03071420-xx]
1x MHCU [03090990Sxx] from FS04
1x PCB / X base adapter C&P
[03045647Sxx] from FS08 *
CP20P Module X base adapter CP20P
[03109399-xx]
1x MHCU [03090990Sxx] from FS04
1x PCB / X base adapter C&P
[03045647Sxx] from FS08 *
Twin Head adapter Twin HCU / SX4
[03082096-xx]
2x MHCU [03090990Sxx] from FS04
1x module/ X base adapter TWIN
[03062201Sxx]
* You need a PCB/X base adapter C&P [03045647Sxx] with FS08 or higher. From FS08 onwards,
longer flat ribbon cables are needed. These are provided in [03045647Sxx].
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]

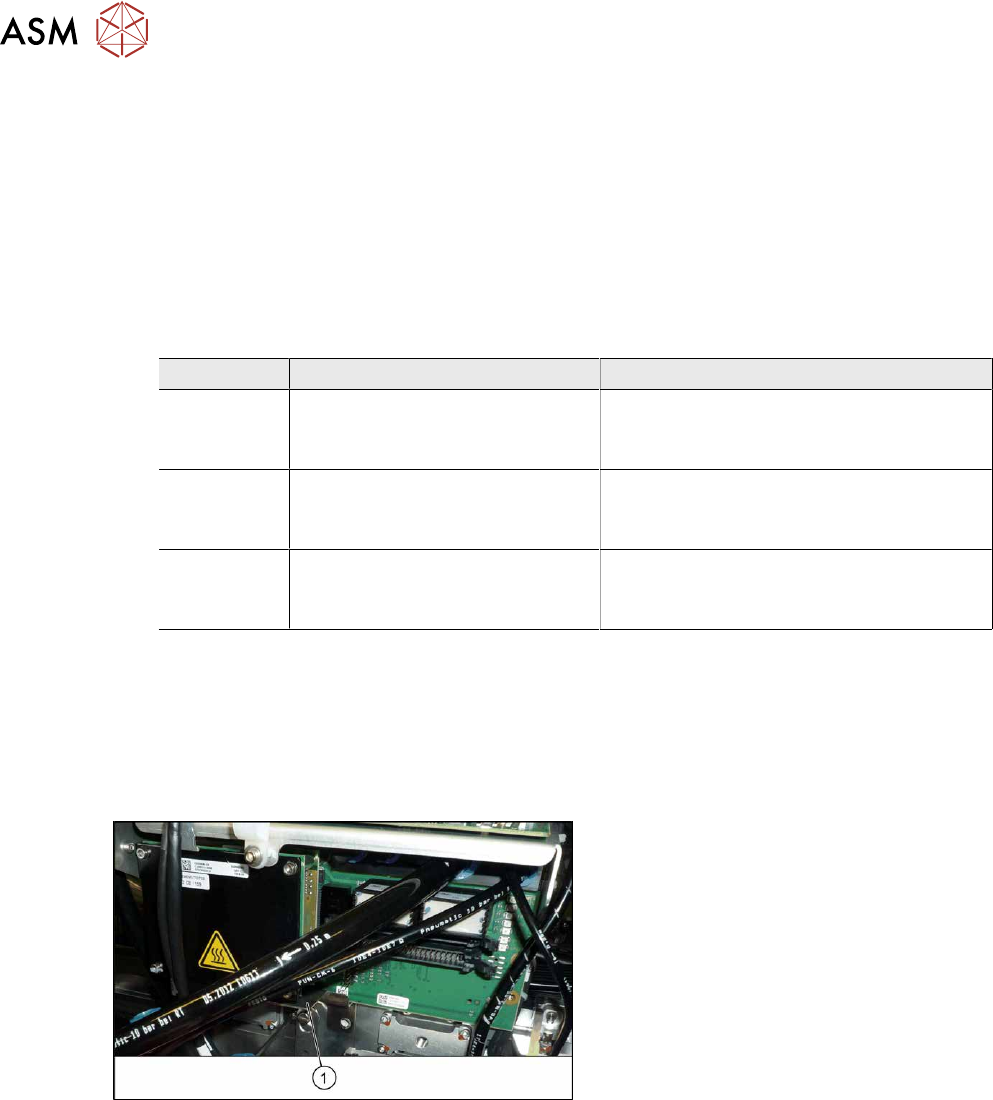

Fig.187: Protective plate
► You may need to dismantle the place-
ment head for better access. Read the
relevant chapter, section Placement
heads, if required.
► Remove the two screws fastening the
protective plate(1)
(if present) and
remove the protective plate.
