2 Basic Machine 2.1 Overview of X-Series S Machines Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 23 2 Basic Machine DANGER Observe User Manual ► Please observe the safety instructions in the user manual for all…
1 Introduction
1.5 Abbreviations
22 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
2 Basic Machine
2.1 Overview of X-Series S Machines
Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021 23
2 Basic Machine
DANGER
Observe User Manual
► Please observe the safety instructions in the user manual for all work!
2.1 Overview of X-Series S Machines

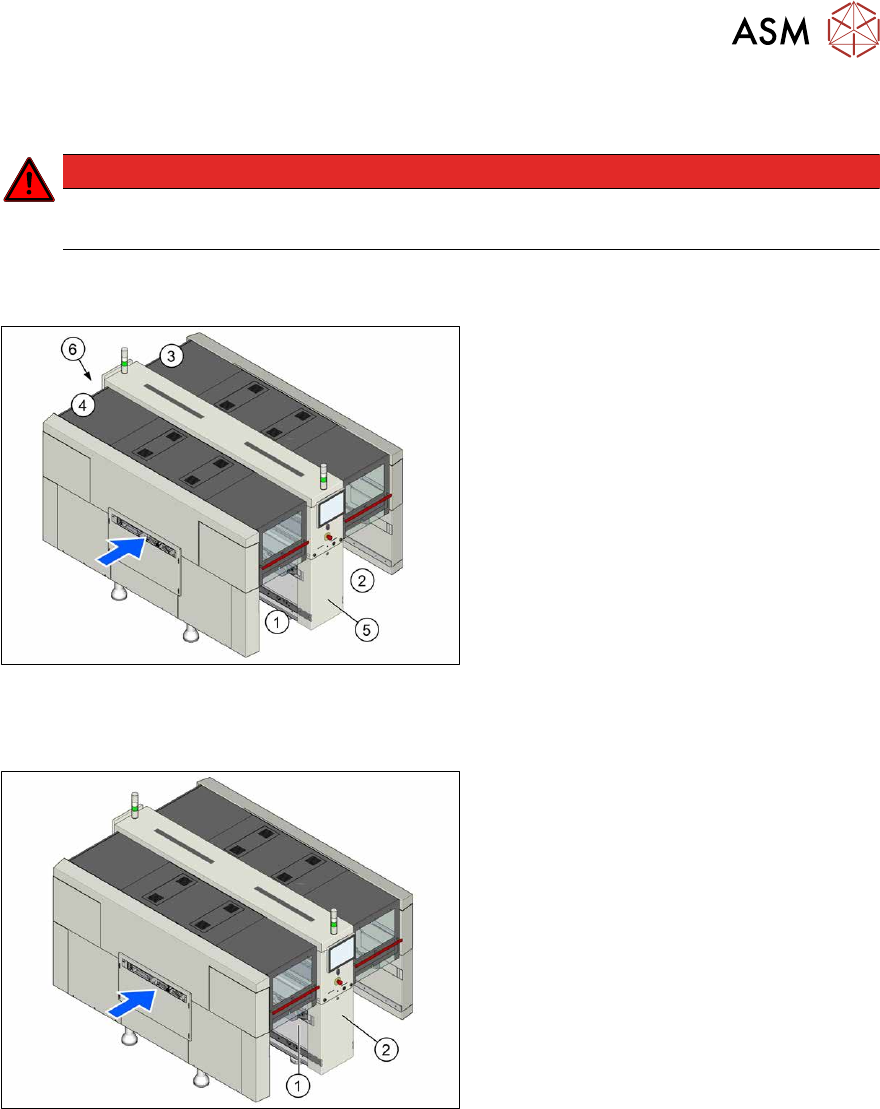

Fig.5: Machine overview
1. Location 1
2. Location 2
3. Location 3
4. Location 4
5. MGCU, BoxPC, I/O modules
6. Power supply
2.1.1 Serial Number of Module
Fig.6: Typeplate
The serial number of your placement
machine can be found at location1, on the
typeplate(1)
and behind the distributor
door(2)
, on the right, above the distributor.
2 Basic Machine
2.2 Replacing the gas pressure shock absorber on the cover
24 Service Manual SIPLACE X-Series S (from Hxxxx) 01/2021
2.2 Replacing the gas pressure shock absorber on the cover
Parts, equipment and tools

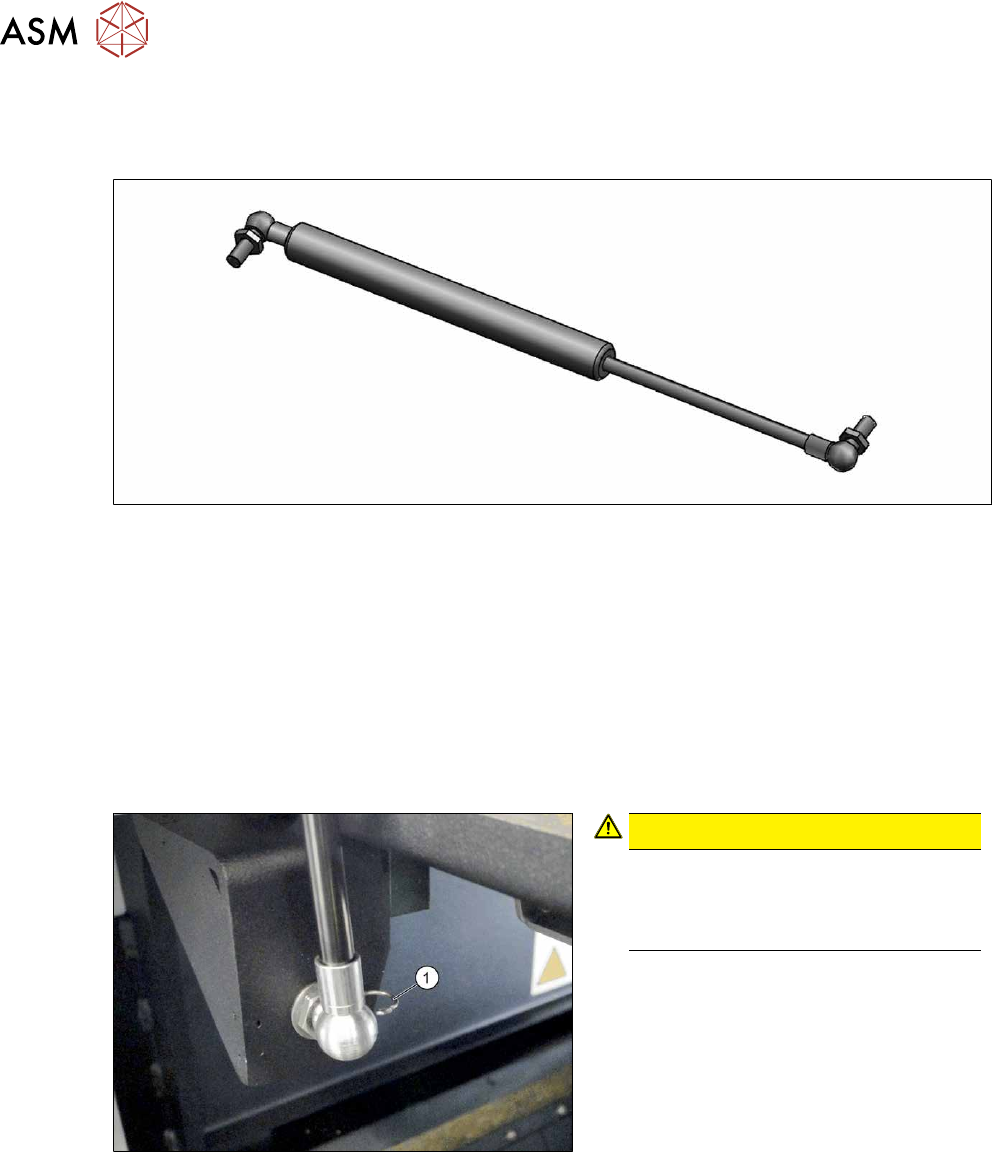

Fig.7: Gas pressure shock absorber D3D3B90-135-430-004/230N [03086743-xx]
●
Gas pressure shock absorber D3D3B90-135-430-004/230N [03086743-xx] (replaces:
[03057763‑xx]) (2x per cover)
●
Loctite 638 [00317731-xx], if required (for loose screwed fixtures)
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}16]
► Open the cover and fix it in a position which gives you best access for working and which en-
sures that it cannot close itself on its own.
Fig.8: Circlip
CAUTION!
Fasten the cover!
As soon as one circlip is released, the
cover can fall down if not sufficiently
fixed.
.
► Release and remove the circlip (1) on
the bottom holder of the gas pressure
shock absorber.
► Repeat this on the top holder of the gas
pressure shock absorber.
► Remove the gas pressure shock absorber from the spherical head on the top and bottom
holder.
